Function
Tilst.-sensor P48LR DALI-2 M32-37M SF
Part number353-751421EAN / GTIN5413736374188HS code8536.90
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

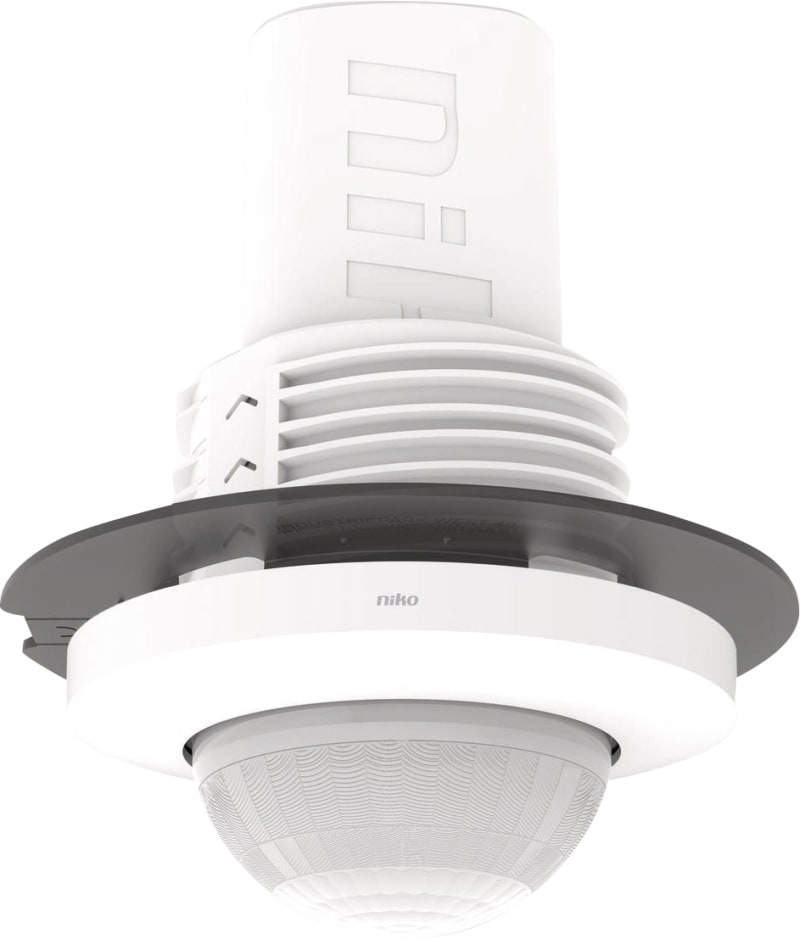

Function 353-751421 Tilst.-sensor P48LR DALI-2 master 32-37m, for recessed mounting with SnapFit.
Technical Specifications
- Manufacturer part number (MPN)
- 353-751421
- EAN / GTIN
- 5413736374188
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Width
- 100 mm
- Model
- Presence detector
- Height
- 142 mm
- Depth
- 142 mm
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- Voltage type
- AC
- Switching-on delay
- 7200 s
- Switch-off delay
- 7200 s
- Built-in depth
- 100 mm
- Diameter
- 100 mm
- Built-in width
- 70 mm
- Built-in diameter
- 70 mm
- Material quality
- Thermoplastic
- Max. reach frontally
- 10 m
- Max. reach sideways
- 37 m
- Max. switching power
- 2300 W
- Temperature
- -25–40 °C
- Max. starting current
- 800 A
- Material
- Plastic
- Diameter reach on floor
- 37 m
- RAL-number (similar)
- 9010
- Control current
- 200 mA
- Scan angle
- 360 °
- Built-in length
- 70 mm
- Impact strength
- IK04
- Degree of protection (IP)
- IP20
- Surface finishing
- Matt
- Suitable for wall mounting
- No
- Optimum mounting height
- 3 m
- Number of switching zones
- 1
- With DALI interface
- Yes
- Min. depth of built-in installation box
- 100 mm
- Max. presence range
- 50 m²
- Max. switching power LED
- 350 W
- Sensor type
- Passive infrared
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5413736374188
- SAP 1200644160
- Code 83077479
Product Documentation
Document preview: Tilst.-sensor P48LR DALI-2 M32-37M SF (353-751421) — Specification sheet
