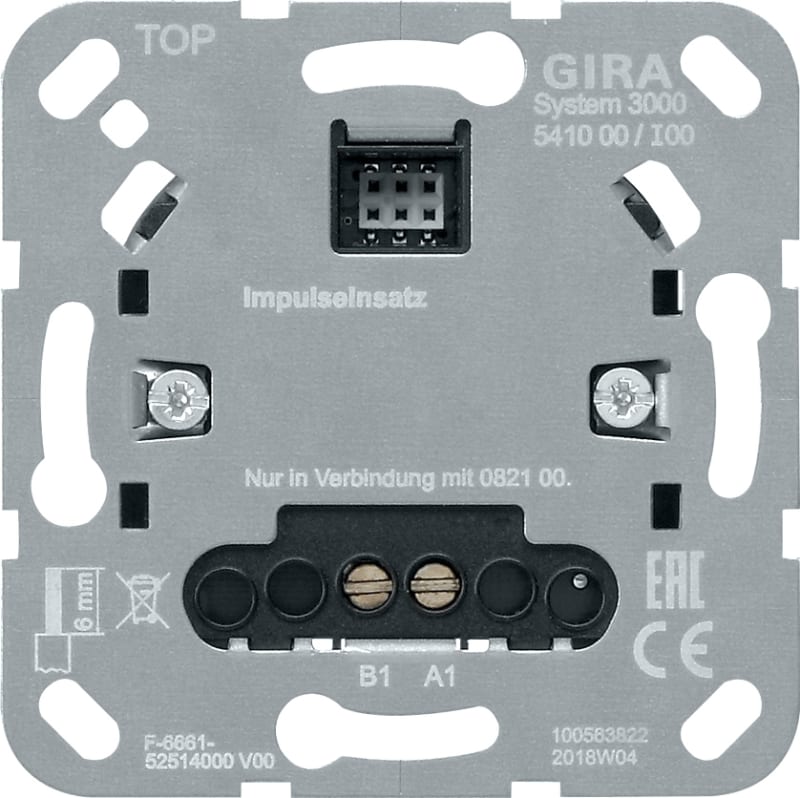

Function System 3000 pulse insert for staircase timer
Pricing
Request a quote
We reply within 24 hours
Product Description
Function 541000 is a System 3000 pulse insert used together with the S3000 staircase-light automatic switch GI082100. It accepts a range of interchangeable rocker plates and is suitable for 230 V incandescent, halogen, electronic and wire-wound low-voltage transformers and fluorescent or energy-saving lamps. Flush-mounted, IP20, minimum installation-box depth 24 mm, operating temperature 5–45 °C.
Technical Specifications
- Manufacturer part number (MPN)
- 541000
- EAN / GTIN
- 4010337048305
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Temperature
- 5–45 °C
- With N-conductor
- No
- Forced switch off
- No
- Only suitable as substation
- No
- Suitable for 230 V incandescent lamp/halogen lamp
- Yes
- Suitable for electronic low voltage transformer
- Yes
- Suitable for fluorescent tube/energy-saving lamp
- Yes
- Suitable for staircase time switch
- No
- Input for substation
- No
- Suitable for wire wound low voltage transformer
- Yes
- Suitable for degree of protection (IP)
- IP20
- Min. depth of built-in installation box
- 24 mm
- With neutral conductor contact
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4010337048305
- SAP 1200426115
- Code 82500739
Product Documentation
More from Function
Function

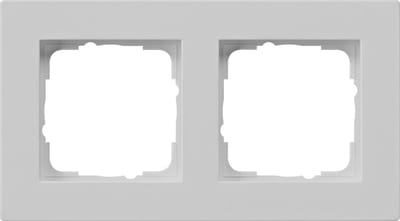

Frame E2 FLAT Mounting GREY MATT 2H
1424208
Function

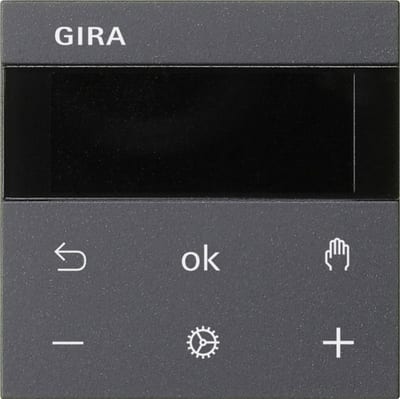

S3000 Thermostat Front Standard, Anthracite
5401789
Function

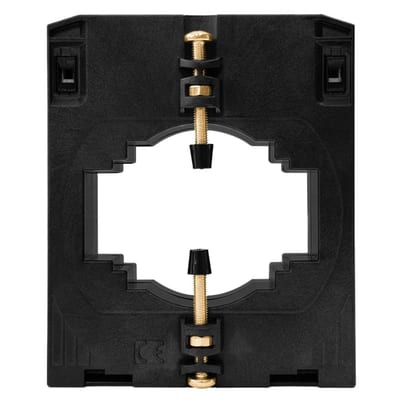

Current Transformer TD10 750/5A kl 0,5
CI7507E
Function

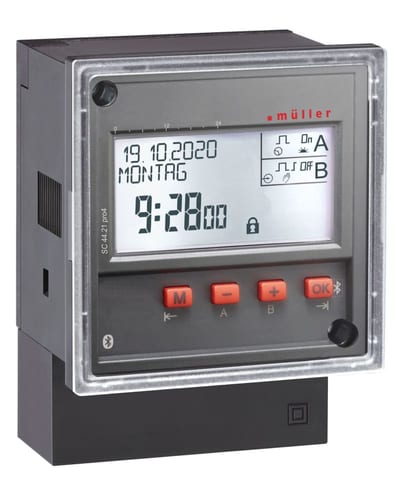

Weekly Timer MM7599 2K 230V BT
SC4421pro
Function

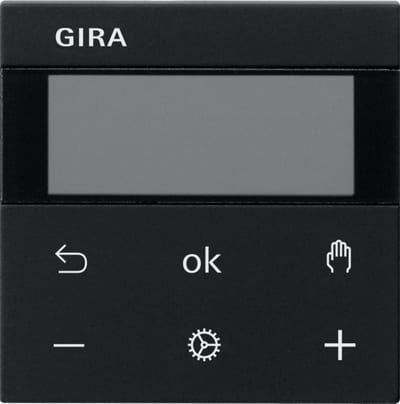

S3000 Thermostat Front BLUETOOTH, Black M
