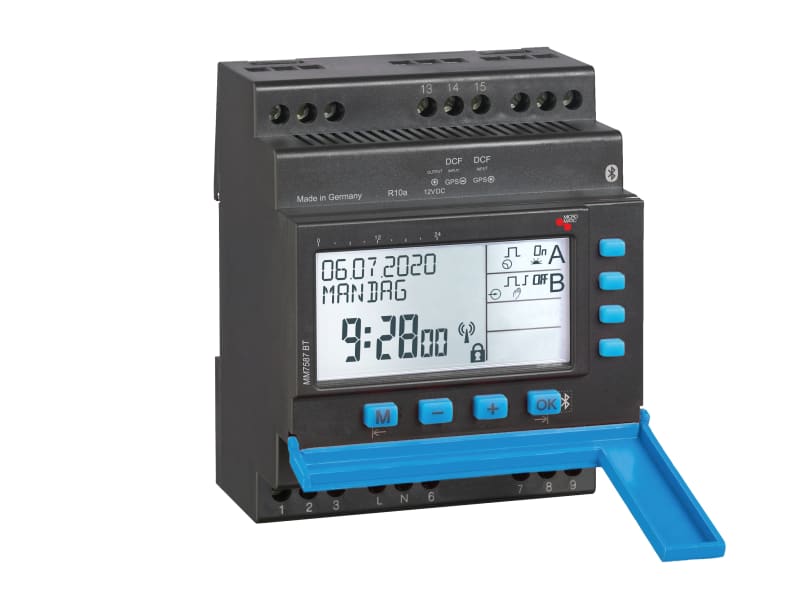

Function LA1076BT Annual Time Switch MM7587 2-Channel 110-230 V Bluetooth
Pricing
Request a quote
We reply within 24 hours
Product Description
Function LA1076BT annual time switch with two channels, 110-230 V AC supply, and Bluetooth programming. GPS-enabled with astro, weekly, annual, holiday, impulse and cycle programs, 300 memory locations and automatic summer/winter changeover. DIN-rail mounted, 4 modules wide, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- LA1076BT
- EAN / GTIN
- 4022709241276
- Sales unit
- pcs
- Voltage
- 110-230 V
- Shortest switching time channel 1
- 1 s
- Mounting method
- DIN rail
- Number of channels
- 2
- Supply voltage
- 110–230 V
- Voltage type (supply voltage)
- AC
- Frequency supply voltage
- 50–60 Hz
- Autonomy in hours
- 87600
- Autonomy in years
- 10
- Accuracy per day
- 0.5 s
- Text guidance in display
- Yes
- External programming
- Yes
- With memory card
- No
- 60 min program
- Yes
- 24 h program
- Yes
- Weekly program
- Yes
- Annual program
- Yes
- Holiday program
- Yes
- Impulse program
- Yes
- Cycle program
- Yes
- Astro program
- Yes
- Random program
- Yes
- Hour meter
- Yes
- Mains synchronous
- No
- Quartz controlled
- Yes
- Radio-controlled
- No
- GPS (global positioning system)
- Yes
- Contact type
- Change-over contact
- Number of memory locations
- 300
- Automatic switching summer/winter time
- Yes
- Suitable for manual operation
- Yes
- External push button input
- Yes
- Switching preselection
- Yes
- Nominal switching current at 250 V AC
- 16 A
- Potential free switch contact
- Yes
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 4
- Width
- 71.5 mm
- Height
- 90 mm
- Depth
- 58 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9107.00
Cross References
- EAN 4022709241276
- SAP 1200467538
- Code 82536011
Product Documentation
More from Function
Function
Wall Transmitter Bluetooth, Single, System 55, Aluminium Colour
GI246126
Function
S3000 Thermostat Front BLUETOOTH, GREY MATT
5401799
Function

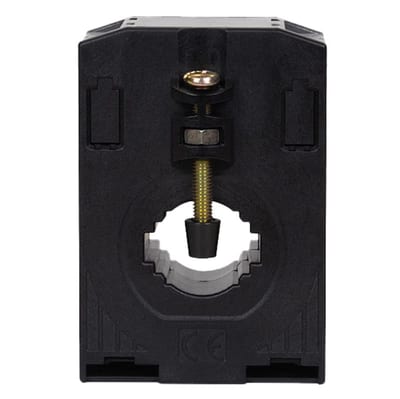

Current Transformer TD5 60/5A kl 0,5
CI75023
Function

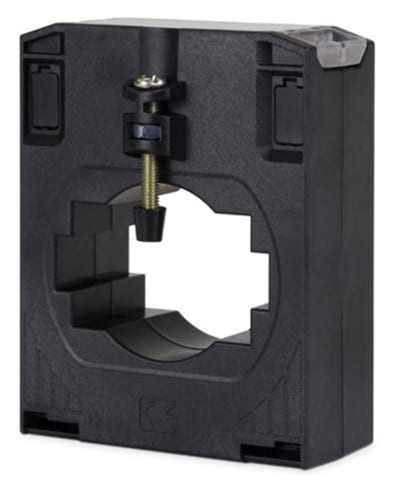

Current Transformer TDH8 500/5A kl 0,2S
CI7706CFU01
Function
Bev.-sens M46HC DALI S/BMS HT 18-53M UTP
353-852011
Function

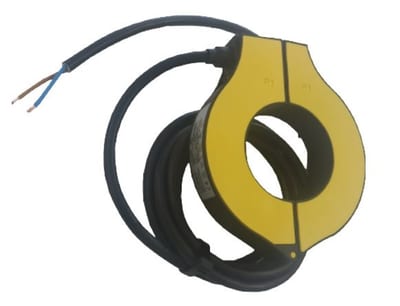

Function TP-Loop80 Split-Core Current Transformer 1500/5A, Class 0.5
SL13511500
Function

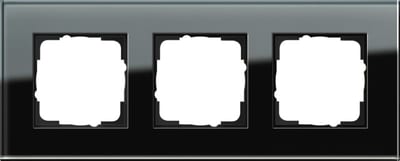

3-H Frame Black Glass Esprit
GI21305
Function

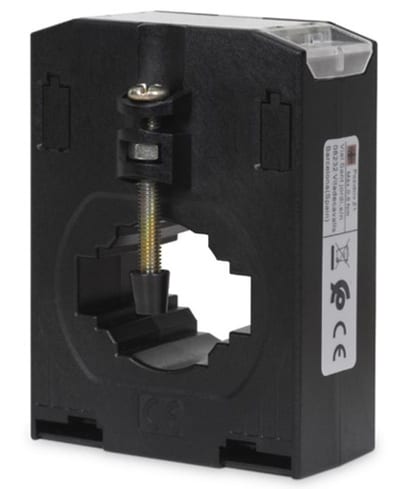

Current Transformer TDH6 150/5A kl 0,2S
