Function

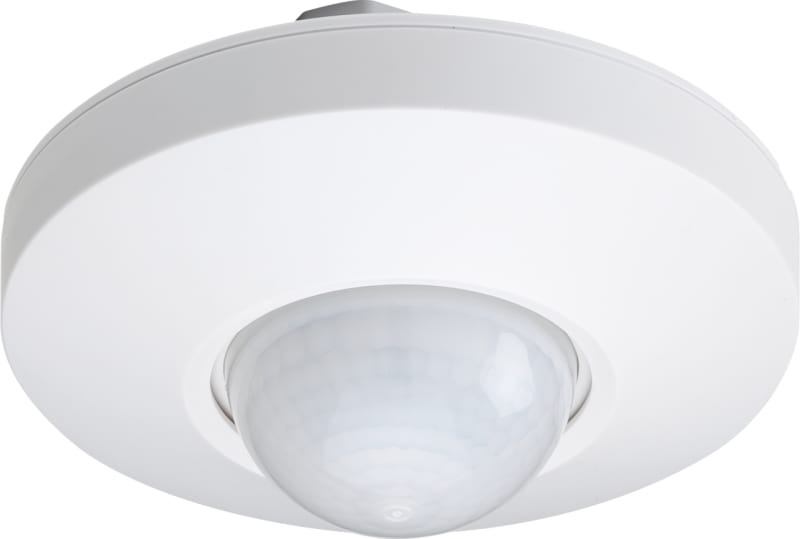

Motion sensor 360º 230V 9M INF 6PK
Part number350-100111EAN / GTIN5413736363304HS code8536.90
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Function 350-100111 Motion sensor 360º, 230V, Ø:9m at H:3m, for recessed mounting in wall box, 6 sensors, multipack.
Technical Specifications
- Manufacturer part number (MPN)
- 350-100111
- EAN / GTIN
- 5413736363304
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 230 V
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Width
- 105 mm
- Model
- Movement sensor
- Height
- 105 mm
- Depth
- 62.5 mm
- Connection type
- Push-in clamp
- Switching-on delay
- 1 s
- Switch-off delay
- 30 s
- Built-in depth
- 22 mm
- Diameter
- 105 mm
- Built-in width
- 50 mm
- Built-in diameter
- 60 mm
- Max. reach frontally
- 4.5 m
- Max. reach sideways
- 4.5 m
- Material
- Plastic
- Diameter reach on floor
- 9 m
- HVAC-control
- No
- RAL-number (similar)
- 9010
- Scan angle
- 360 °
- Built-in length
- 22 mm
- Impact strength
- IK02
- Degree of protection (IP)
- IP54
- Surface finishing
- Matt
- Min. switch-on time
- 10 s
- Max. duty cycle
- 30 min
- Suitable for wall mounting
- No
- Optimum mounting height
- 3 m
- Constant light output (CLO)
- No
- Number of switching zones
- 1
- With DALI interface
- No
- Min. depth of built-in installation box
- 22 mm
- Max. presence range
- 64 m²
- Max. switching power LED
- 350 W
- Sensor type
- Passive infrared
- Country of origin
- Taiwan
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5413736363304
- SAP 1200365543
- Code 82387890
Product Documentation
Document preview: Motion sensor 360º 230V 9M INF 6PK (350-100111) — Specification sheet
