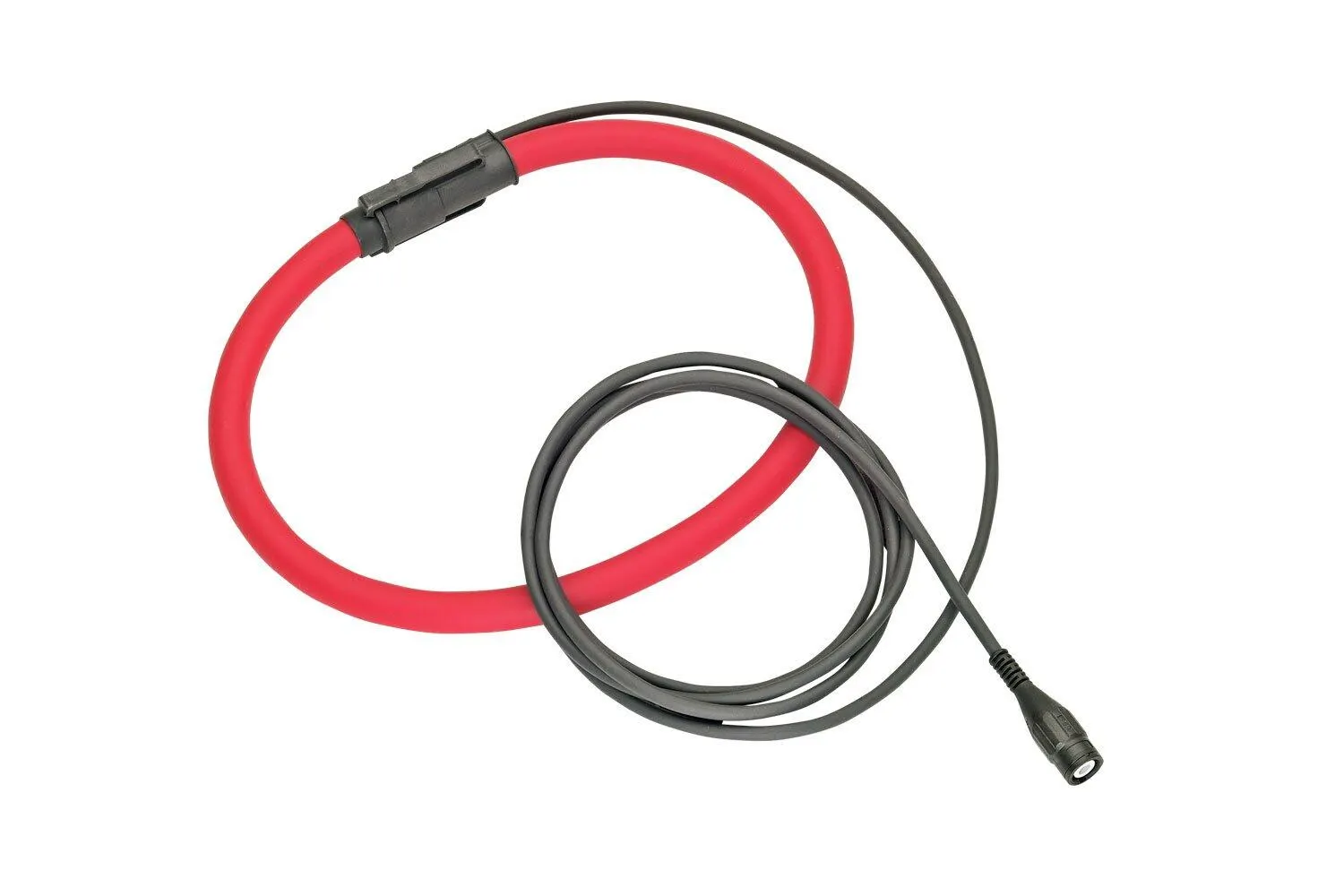

Fluke I430 Flex Current Clamp

The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas, without batteries or an external power source.

Manufacturer part number (MPN)

2654883

Brand

Fluke

Category

Tools

Probe and cable material

TPE rubber, reinforced insulation

Couplings material

Polypropylene, UL94 V-0

Probe cable length

610 mm

Probe cable diameter

12.4 mm

Probe cable bend radius

40 mm

Output cable length

2.5 meters RG58

Output connector

Safety BNC Connector

Operating range

-20 to +90°C

Storage temperature

-40 to +105°C

Operating humidity

15% to 85% (non condensing)

Degree of protection (Probe)

IP41

Current range

3000 A AC rms

Voltage output (@ 1000 A rms, 50 Hz)

85 mV

Accuracy

±1% of reading

Linearity (10% to 100% of range)

±0.2% of reading

Noise (10 Hz – 7 kHz)

1.0 mV AC rms

Output impedance

82 Ω min

Load impedance

50 kΩ

Internal Resistance per 100 mm probe length

10.5Ω ±5%

Bandwidth (-3dB)

10 Hz to 7 kHz

Phase error (45 – 65 Hz)

±1°

Position sensitivity

±2% of reading max.

Temperature coefficient

±0.08% max of reading per °C

Working voltage (see Safety standards section)

1000 V AC rms or DC (head)

Safety standards

BS EN 61010-1 2001

HS Code

9030.33
