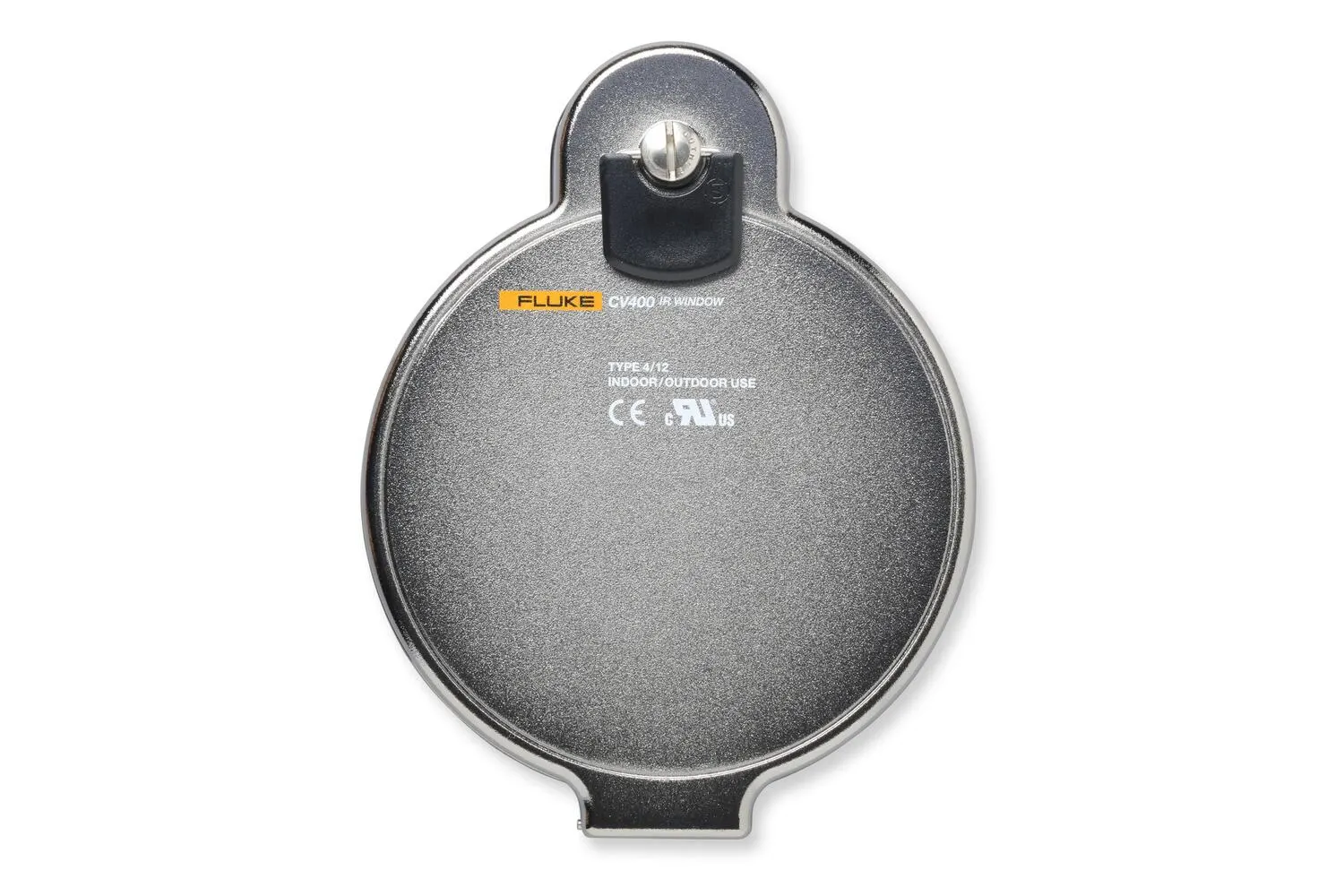

Fluke CV400 95 mm (4 in) Infrared Window
Pricing
Request a quote
We reply within 24 hours
Product Description
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance. Learn More.
Technical Specifications
- Manufacturer part number (MPN)
- 4326996
- Brand
- Fluke
- Category
- Tools
- Size
- 95 mm (4 in)
- Voltage range
- Any
- NEMA environment type
- Type 4/12 (indoor/outdoor)
- AutoGround™
- Yes
- Operating temperature
- -40°C to +232°C (-40° F to +450°F) and +260°C (500°F) intermittent
- Compatible with all Fluke cameras
- Yes
- Jam nut locking system
- Yes
- Cover and fastener permanently attached
- Yes
- Single-hole install
- Yes
- Hand turn and security key door latch options
- Yes
- Visual inspection and fusion capable
- Yes
- Short/Mid/Long-wave IR and UV capable
- Yes
- Arc-tested (IEEE C37.20.7)
- 63 kA for 30 cycles @ 60 Hz at KEMA
- CSA C22.2 No.
- Yes
- CSA type rating
- Type 4
- IP rating
- IP67 at TUV
- Lloyds register
- Up to 11 kV marine switchgear, indoor or outdoor (offshore only)
- Vibration rating
- IEC60068-2-6 at TUV
- Humidity rating
- IEC60068-2-3 at TUV
- Actual mounting hole diameter required
- 115.42 mm (4.544 in)
- Greenlee® punch kit = punch/die
- 742BB = 2984AV/2983AV
- Recommended max panel thickness
- 10 gage
- Overall window height
- 189.3 mm (7.45 in)
- Overall window width
- 147.1 mm (5.79 in)
- Overall window thickness
- 23.0 mm (0.90 in)
- Door latch
- Hand Turn
- Optic insert diameter
- 95 mm (3.74 in)
- Viewing aperture diameter
- 87.63 mm (3.450 in)
- Viewing aperture area
- 6032 mm2 (9.35 in2)
- Thickness
- 4 mm (0.16 in)
- Warranty
- Lifetime replacement against manufacturing defects
