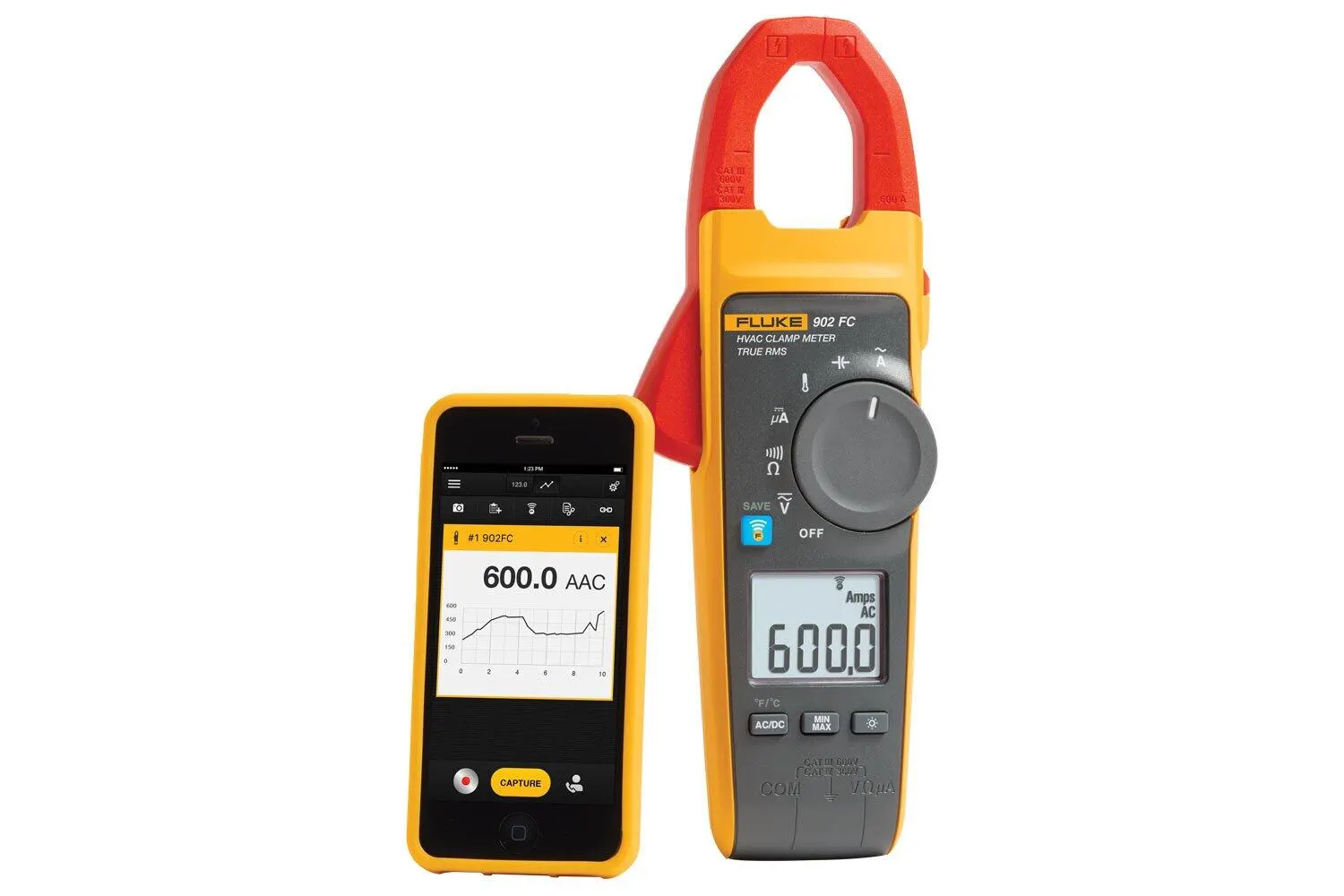

Fluke 902 FC True-RMS HVAC Clamp Meter

The Fluke 902 FC True-RMS HVAC Clamp Meters help take essential HVAC measurements, create reports, & collaborate with peers from the work site. Learn more!

Manufacturer part number (MPN)

4695814

Brand

Fluke

Category

Tools

Resolution

0.1 A

Accuracy

2.0% ±5 digit (45-65 Hz)

Range

600.0 A

Crest Factor (50Hz or 60Hz)

2.5 MIN@220 A > 1.4 MIN@600 A Add 2% for CF>400 A

Beeper volume

75 dBA nom. 15 cm. from case front

On threshold

<=30 Ω

Maximum voltage between any terminal and earth ground

600 V

Battery type

2 AA alkaline batteries, NEDA 15A, IEC LR6

Temperature

Operating: -10 °C to +50 °C (14 °F to +122 °F) Storage: -40 °C to +60 °C (-40 °F to +140 °F)

Operating humidity

Non condensing (< 10 °C [50 °F]), ≤90 % RH (at 10 °C to 30 °C [50 °F to 86 °F]), ≤75 % RH (at 30 °C to 40 °C (86 °F to 104 °F)), ≤45 % RH (at 40 °C to 50 °C (104 °F to 122 °F))

Altitude

Operating: 3,000 m (9,842 ft) Storage: 12,000 m (39,370 ft)

Dimensions

230 x 83.7 x 45.4mm (9.06 x 3.30 x 1.39 in)

Weight (meter only)

419 g (15 oz)

Safety

IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 600 V / CAT IV 300 V IEC 61010-2-033: CAT III 600 V / CAT IV 300 V

IP Rating

IEC 60529: IP30, non-operating

Radio Frequency Certification

FCC ID:T68-FBLE IC:6627A-FBLE

Electromagnetic Compatibility (EMC)

International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Temperature coefficients

Add 0.1 × specified accuracy for each degree C above 28 °C or below 18 °C

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/clamp-meters/fluke-902-fc
