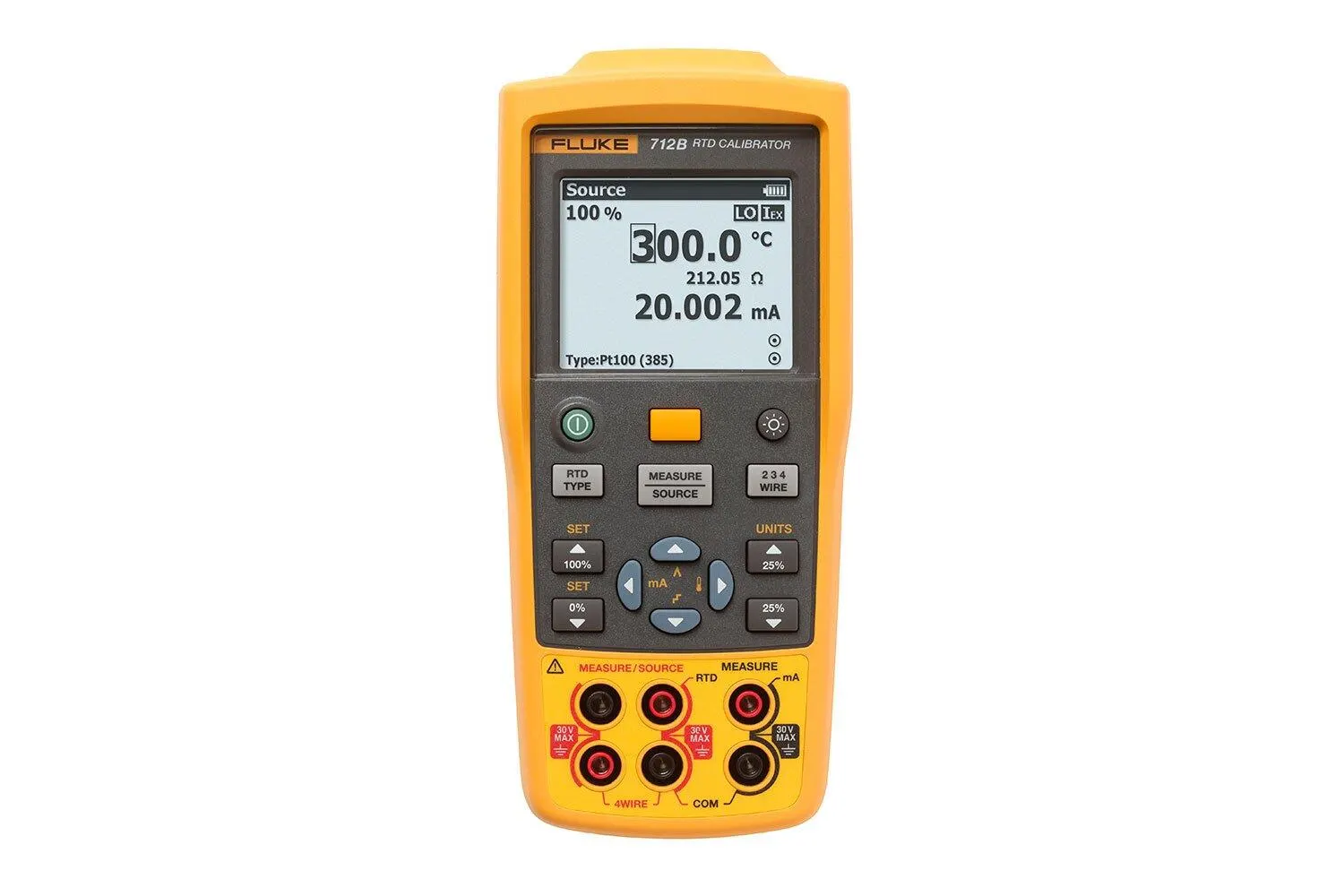

Fluke 712B RTD Calibrators

Fluke 712B Handheld RTD Calibrator provides highly accurate, easy-to-use, single-function RTD temperature calibration. Measure & simulate 13 RTD types.

Manufacturer part number (MPN)

4387857

Brand

Fluke

Category

Tools

Operating temperature

-10°C to 50°C

Storage temperature

-30°C to 60°C

Operating altitude

2,000 m

Storage altitude

12,000 m

Relative humidity (% RH operating without condensation)

Non condensing

Vibration requirements

MIL-T-28800E, Class 2

Drop text requirements

1 m

IP Rating

IEC 60529: IP52

Electromagnetic environment

IEC 61326-1, Portable

Safety

IEC 61010-1, Max 30 V to earth, Pollution Degree 2

Power supply

4 AA NEDA 1.5A IEC LR6 batteries

Size (H x W x L)

52.5 x 84 x 188.5 mm

Weight

515 g

Resolution

0-24 mA

Range

0.001 mA

Accuracy (% of reading + counts)

0.010% + 2 μA

Temperature coefficient

± (0.002% of reading + 0.002% of range) /°C ( 28°C)

Ohms range

Accuracy (% of reading +counts)

0.00 Ω to 400.00 Ω

0.015% + 0.05 Ω

400.0 Ω to 4000.0 Ω

0.015% + 0.5 Ω

Excitation current from measurement device

0.1 mA to 0.5 mA

Resolution 0.00 Ω to 400.00 Ω

0.01 Ω

Resolution 400.0 Ω to 4000.0 Ω

0.1 Ω

RTD Type (α) Range (°C)

Measure (°C)

1-year 2-year

Source current

10 Ω Pt (385) -200 to 100°C

1.5°C

100 to 800°C 1.8°C

3.6°C

50 Ω Pt (385) -200 to 100°C

0.4°C

100 to 800°C 0.5°C

0.8°C

100 Ω Pt (385) -200 to 100°C

0.2°C

100 to 800°C 0.015% +0.18°C

0.03% +0.36°C

200 Ω Pt (385) -200 to 100°C

0.2°C

100 to 630°C 0.015% +0.18°C

0.03% +0.36°C

500 Ω Pt (385) -200 to 100°C

0.3°C

100 to 630°C 0.015% +0.28°C

0.03% +0.56°C

1000 Ω Pt (385) -200 to 100°C

0.2°C

100 Ω Pt (3916) -200 to 100°C

0.2°C

100 Ω Pt (3926) -200 to 100°C

0.2°C

10 Ω Cu (427) -100 to 260°C

1.5°C

120 Ω Ni (672) -80 to 260°C

0.15°C

50 Ω Cu (427) -180 to 200°C

0.4°C

100 Ω Cu (427) -180 to 200°C

0.2°C

YSI400 15 to 50°C

0.2°C

HS Code

9031.80
