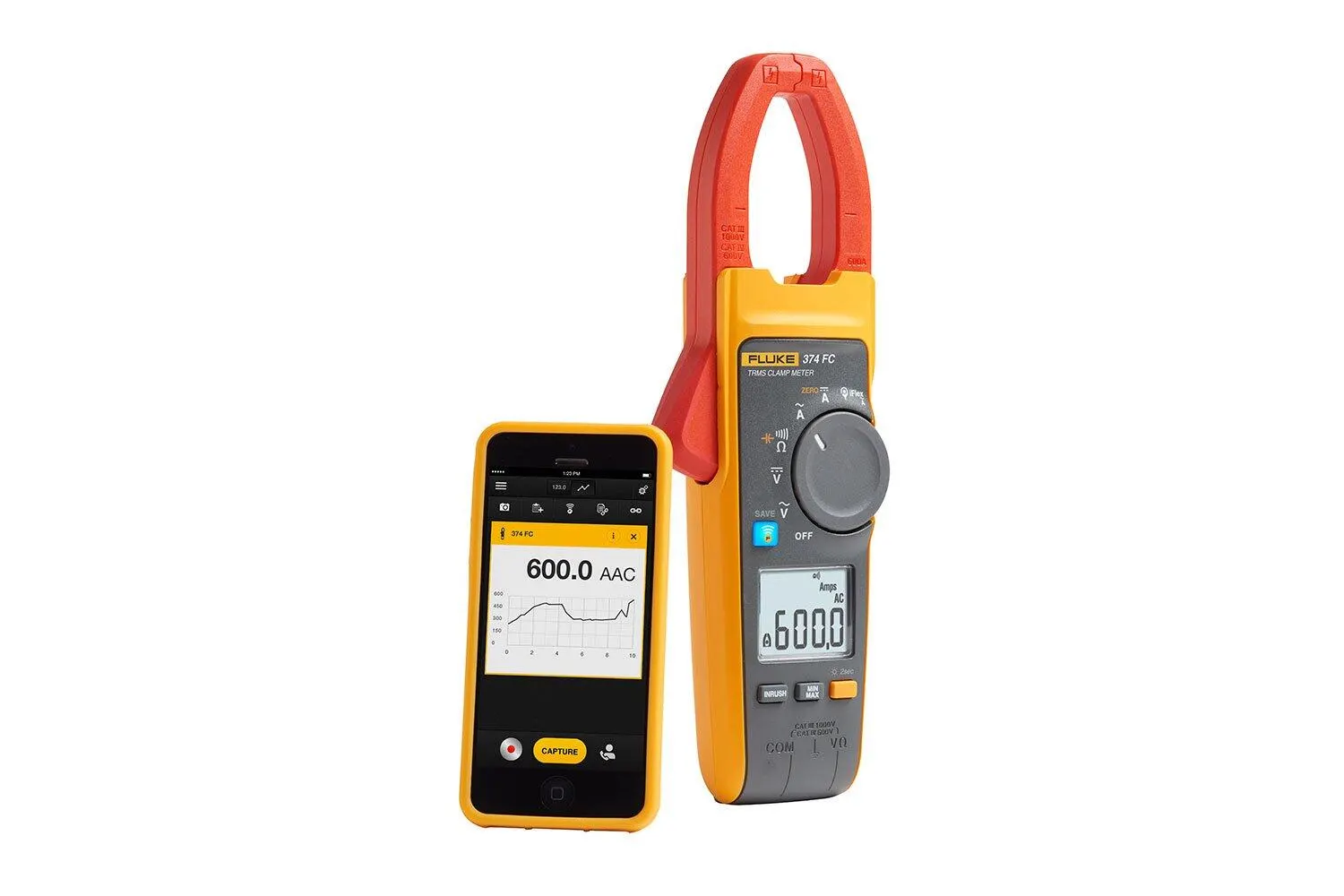

Fluke 374 FC True-RMS AC/DC Clamp Meter

The Fluke 374 FC offers advanced troubleshooting performance & is now part of the Fluke Connect family of wireless tools. See our line of DC clamp meters.

Manufacturer part number (MPN)

5065983

Brand

Fluke

Category

Tools

Range

600.0 A

Resolution

0.1 A

Accuracy

2% ±5 digits (10 Hz to 100 Hz) 2.5% ±5 digits (100-500 Hz)

Crest Factor (50 Hz/60 Hz)

2.5 @ 600 A Add 2% for C.F. >2

Crest Factor (50/60Hz)

2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2

i2500-10 Flex

i2500-18 Flex

A 0.5 in (12.7 mm)

1.4 in (35.6 mm)

B 0.8 in (20.3 mm)

2.0 in (50.8 mm)

C 1.4 in (35.6 mm)

2.5 in (63.5 mm)

Maximum voltage between any terminal and earth ground

1000 V

Batteries

2 AA, NEDA 15A, IEC LR6

Operating temperature

-10 °C to +50 °C

Storage temperature

-40 °C to +60 °C

Operating humidity - non-condensing (< 10°C)

≤90% RH (at 10 °C to 30 °C) ≤75% RH (at 30 °C to 40 °C) ≤45% RH (at 40 °C to 50 °C)

Operating altitude

3000 m

Storage altitude

12,000 m

Size (L x W x H)

249 x 85 x 45 mm

Weight

395 g

Jaw opening

34 mm

Flexible current probe diameter

7.5 mm

Safety

IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033:CAT III 1000 V / CAT IV 600 V

IP rating

IEC 60529: IP30, non-operating

Radio Frequency Certification FCC ID

T68-FBLE IC:6627A-FBLE

Korea (KCC)

Class A Equipment (Industrial Broadcasting & Communication Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Temperature coefficients

Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C

HS Code

9030.33
