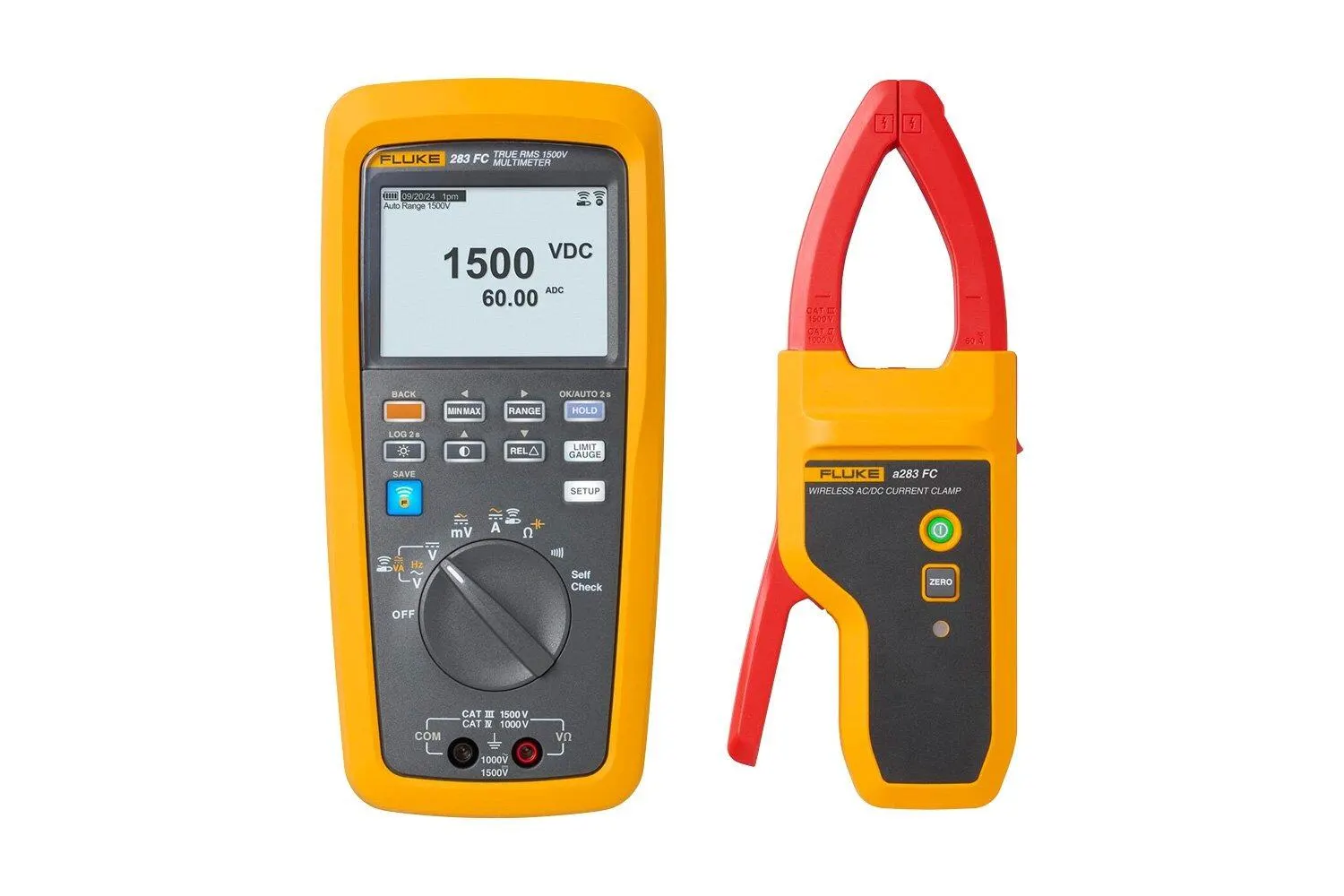

Fluke 283 FC/PV Solar Digital Multimeter and Wireless Current Clamp
Pricing
Request a quote
We reply within 24 hours
Product Description
The Fluke 283 FC/PV Solar Digital Multimeter and Wireless Current Clamp, True-RMS CAT III 1500V is ideal for solar power systems, ensuring safety and accuracy.
Technical Specifications
- Manufacturer part number (MPN)
- 6019841
- Brand
- Fluke
- Category
- Tools
- Function Range
- Resolution
- AC volts[1] 6.000 V
- 0.001 V
- 600.0 V 0.1 V
- 2.0 % + 3 (500 Hz to 1 kHz)
- 1000 V
- 1 V
- DC volts 6.000 V
- 0.001 V
- 1500 V 1 V
- 0.15 % + 2
- AC mV[1] 600.0 mV
- 0.1 mV
- DC mV 600.0 mV
- 0.1 mV
- Continuity 600 Ω
- 1 Ω
- Resistance 600.0 Ω
- 0.1 Ω
- Resistance 6.000 kΩ
- 0.001 kΩ
- Resistance 6.000 MΩ
- 0.001 MΩ
- 50.00 MΩ 0.01 MΩ
- 1.5 % + 4
- Capacitance 1000 nF
- 1 nF
- Capacitance 10.00 μF
- 0.01 μF
- 9999 μF 1 μF
- 10 % typical
- Frequency 99.99 Hz
- 0.01 Hz
- Frequency 9.999 kHz
- 0.001 kHz
- AC VA (45~500Hz)[1] 360.0 VA
- 0.1 VA
- 3.600 kVA 0.001 kVA
- 2 % + 0.01 kVA
- 36.00 kVA 0.01 kVA
- 2 % + 0.1 kVA
- 60.00 kVA 0.01 kVA
- 2 % + 0.15 kVA
- DC VA[1] 360.0 VA
- 0.1 VA
- 90.00 kVA 0.01 kVA
- 2 % + 0.25 kVA
- Min-max avg
- For DC functions, accuracy is the specified accuracy of the measurement function ± 12 counts for changes longer than 350 ms in duration.
- Operating temperature
- -10 °C to 60 °C
- Storage temperature
- -30 °C to +70 °C
- Humidity (without condensation)
- 0 % to 90 %, 10 °C to 30 °C
- Electromagnetic compatibility
- IEC 61326-1, IEC 61326-2-2, Portable, Group 1, Class A
- Overvoltage category
- CAT III 1500 V, CAT IV 1000 V
- Agency approvals
- ETL (AMER and EMEA), CSA (APAC), CE, UK CA
- Drop test
- 2 meter (6.5 ft) drop test
- Ingress protection
- IP52
- Warranty
- Limited lifetime
- Counts
- 6000
- Size
- 22.5 cm x 10.5 cm x 5.7 cm (8.8 in x 4.1 in x 2.2 in)
- Weight
- 0.7 kg (1.5 lb)
- Battery life
- > 150 hours typical, without backlight (Alkaline, 3 AA)
- AC current (True-RMS)[2] 60 A
- 0.01 A
- DC current[2] 60 A
- 0.01 A
- Jaw opening
- 34 mm (1.34 in)
- LED indicator
- Indicates wireless connection and data transmission status
- Battery indicator
- Indicates battery status
- Power Key
- Power On/Off
- Zero Key
- A DC zeroing function
Standards & Compliance
- HS Code
- 9030.33
Cross References
- OEM-URL https://www.fluke.com/en-us/product/electrical-testing/digital-multimeters/283-fcpv-solar-digital-multimeter
Product Documentation
More from Fluke
Fluke
5014-1L | Silicone Oil Type 200.50, 1 liter (0.26 gal)
2430120
Fluke
5010-3.8L | Silicone Oil Type 200.05, 3.8 liters (1 gal)
2430010
Fluke
1586-2586 |High-Capacity Module without Relay Card
4409820
Fluke
5012-1L | Silicone Oil Type 200.10, 1 liter (0.26 gal)
2430068
Fluke
3107-2000 | Bright insert
1651126
Fluke
3107-2250 | 1/4 in Insert (6.35 mm)
1651180
Fluke

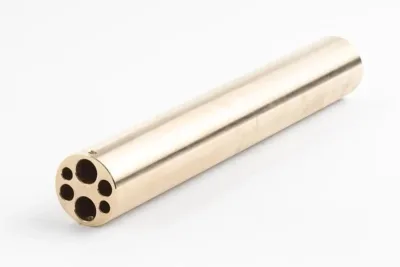

9173-Insb | Insert “B” 9173, Al-Brnz, Comparison Holes
