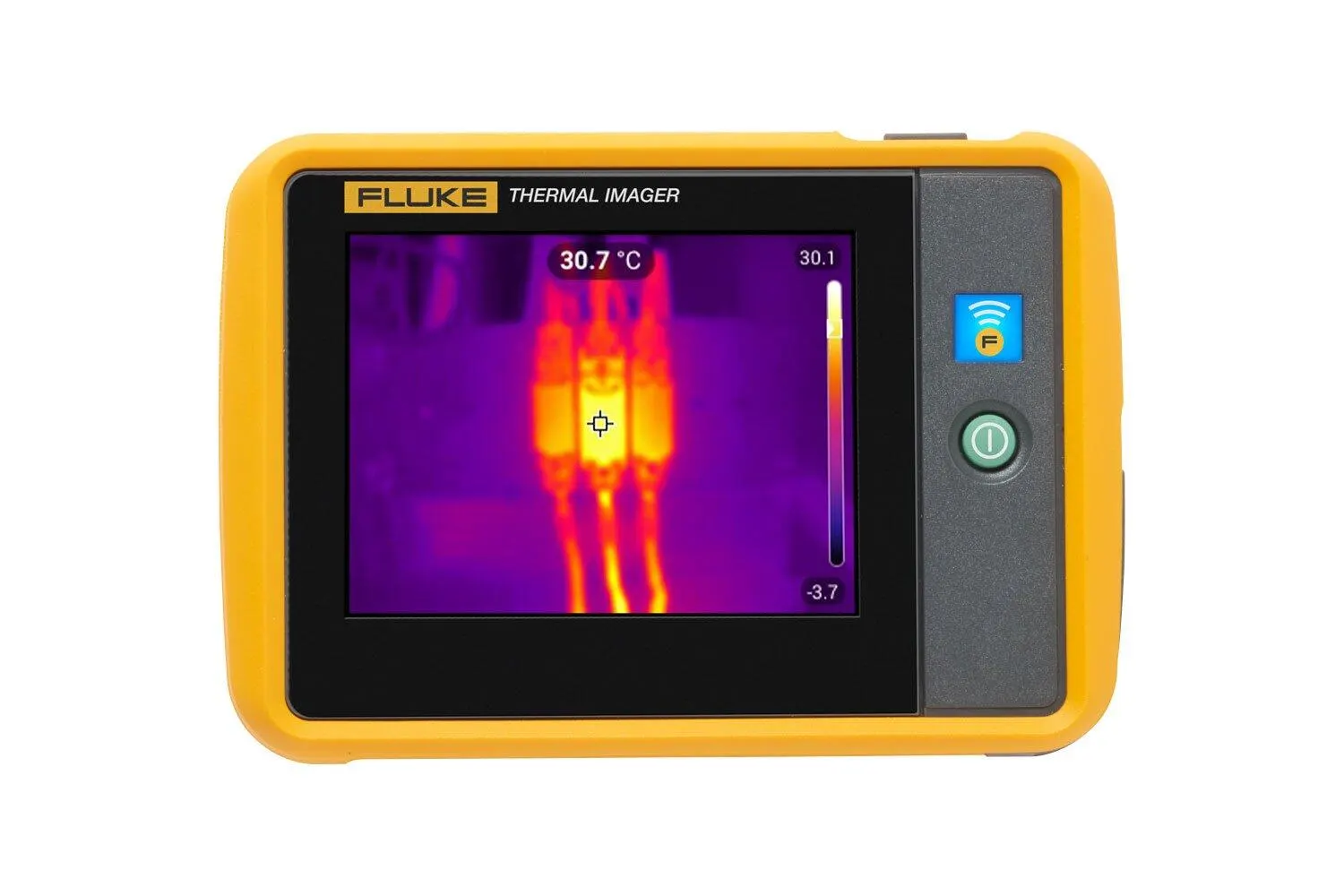

Compact Fluke PTI120 Pocket Thermal Camera

A handheld thermal camera so compact and easy to use you can empower your entire team with this small professional thermal camera, regardless of thermography experience.

Manufacturer part number (MPN)

5302512 Brand: Fluke Category: Tools IFOV (spatial resolution): 7.6 mRad Infrared resolution: 120 x 90 (10,800 pixels) Field of view: 50° H x 38° V Distance to spot: 130:1 Temperature measurement range (not calibrated below -10 °C): -20 °C to +400 °C and -20 °C to +150 °C models Focus system: Fixed focus, minimum focus distance 22.8 cm USB: Mini USB used to transfer image to PC Wifi: Yes IR-Fusion technology: Yes, adds the context of the visible details to your infrared image AutoBlend mode: Continuous 0% to 100% Touchscreen display: 3.5’’ (landscape), 320 x 240 LCD Rugged, ergonomic design: Yes Thermal sensitivity (NETD): 60 mK Frame rate: 9 Hz Memory: 2GB internal flash memory Image capture, review, save mechanism: One-handed image capture, review, and save capability Image file formats: Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files Software: Fluke Connect® desktop software—full analysis and reporting software with access to the Fluke Connect system Export file formats with software: JPG, IS2 Measurement range: -20 °C to +400 °C and -20 °C to +150 °C models Batteries (rechargable): Internal rechargeable lithium ion battery Battery life: ≥ 2 hours continuous (without WiFi) Battery charging time: ≤ 1.5 hours Battery charging system: Mini USB cord from product to PC AC operation: With separate AC to USB adapter. Not included in box. Power saving: Automatic Shutdown: 5, 10, 15 and 20 minutes or never Accuracy: Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2% On-screen emissivity correction: Yes On-screen reflected background temperature compensation: Yes Standard palettes: 6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale Infrared spectral band: 8 μm to 14 μm (long wave) Operating temperature: -10 °C to +50 °C (14 °F to 122 °F) Storage temperature: -40 °C to +70 °C (-40 °F to 158 °F) Relative humidity: 95% non-condensing Center-point temperature: Yes Spot temperature: Hot and cold spot markers Safety: EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery) Electromagnetic compatibility: EN301 489-1 V2.1.1 EN301489-17 V3.1.1 US FCC: CFR, Part 15C Vibration and shock: 2G, IEC 68-2-6 and 25G, IEC 68-2-29 Drop: 1 meter Size (H x W x L): 8.9 cm x 12.7 cm x 2.5 cm (3.5 in x 5.0 in x 1.0 in) Weight (battery included): 0.233 kg (0.514 lb) Enclosure rating: IP54 Warranty: Two-years Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish

• OEM-URL https://www.fluke.com/en-us/product/thermal-cameras/pocket-pti120
