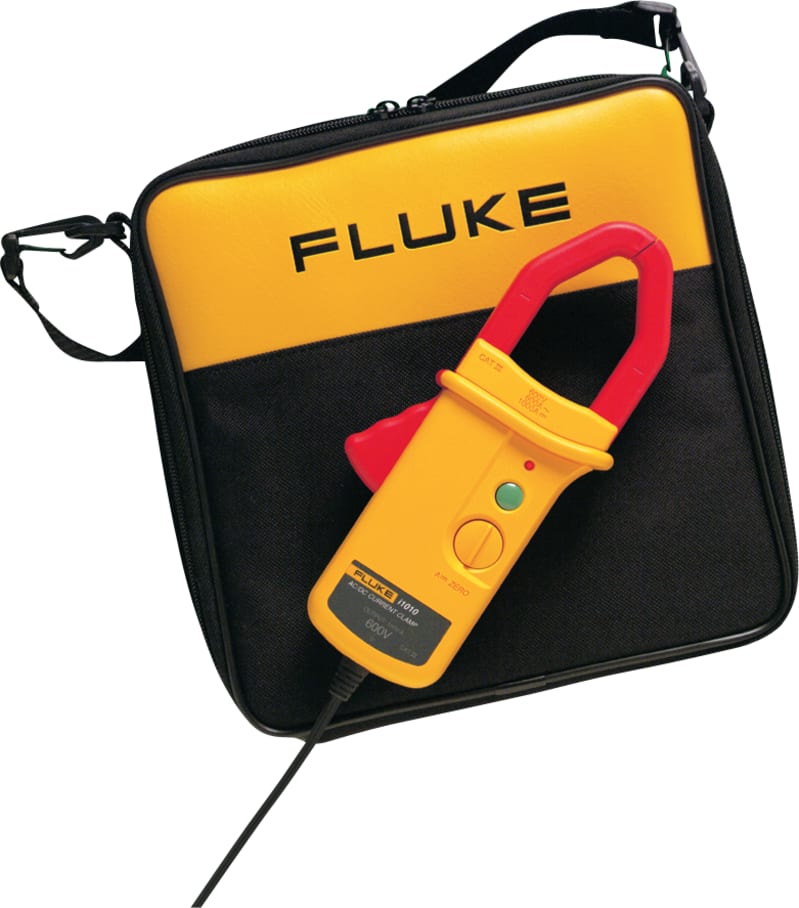

Fluke i1010 AC/DC Current Clamp Kit 600 A AC / 1000 A DC with Carry Case I1010-KIT

Fluke I1010-KIT bundles the Fluke i1010 Hall-effect AC/DC current clamp with a padded carry case sized to hold the clamp and lead set. The i1010 measures 1-600 A AC (up to 10 kHz) and 1-1000 A DC with 1 mV/A output for use with a multimeter or scope, basic accuracy 2% + 0.5 A, safety CAT III 600 V. Maximum conductor diameter 30 mm or 2 x 25 mm; shrouded banana plugs; 9 V battery gives about 60 h of operation.

Manufacturer part number (MPN)

I1010-KIT EAN / GTIN: 0095969241830 Sales unit: pcs Manufacturer model: Fluke I1010 Measurement type: Hall sensor Nominal current range: 600 A, AC 1000 A, DC Continuous current range: 1 A - 600 A, AC 1 A - 1000 A, DC Maximum non-desctructive current: 1000 A Lowest measureable current: 0.5 A Basic accuracy: 2% + 0.5 A (% reading + floorspec) Useable frequency: DC - 10 kHz Output level(s): 1 mV/A Zero error adjustment: Yes Safety: CAT III, 600 V Maximum voltage: 600 V Battery life: 9 V, 60 h Maximum conductor diameter: 30 mm 2 x 25 mm Output cable length: 1.6 m Shrouded banana plugs: Yes

HS Code

4202.92

• EAN 0095969241830
• SAP 1000058676
• Code 8871983
