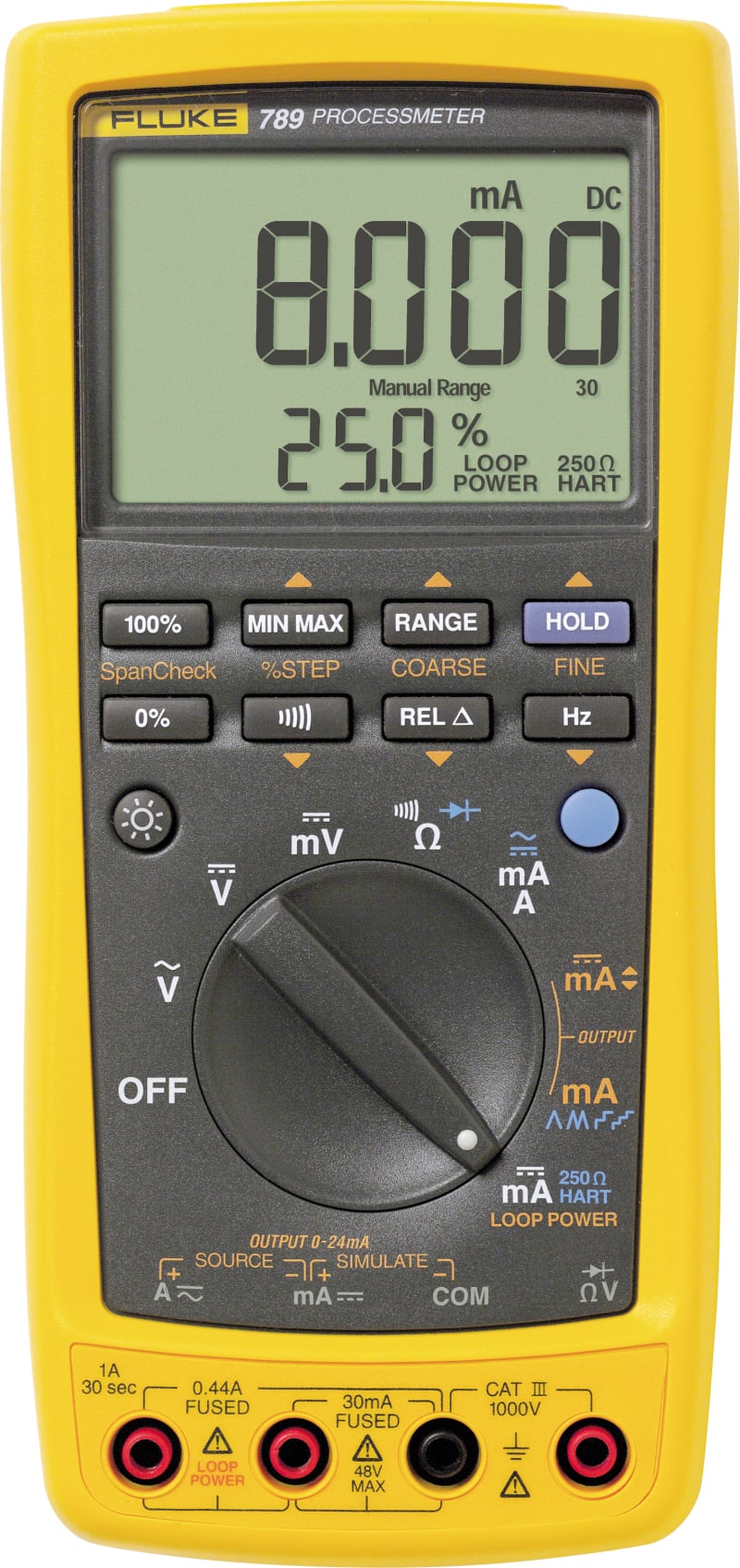

Fluke 789 ProcessMeter True-RMS Multimeter and Loop Calibrator

Fluke 789 (14577) is a combined true-RMS digital multimeter and 24 V loop calibrator: it measures 0-1000 V AC/DC, 0-1 A AC/DC current, resistance to 40 MΩ and diode drop, and sources 0-20 or 4-20 mA with 1200 Ω / 24 V drive capability. Current output can be stepped or ramped, with simultaneous display of value and percent of span; DC accuracy is 0.2 % + 2 LSD. Suitable for process-instrument service where a technician needs both meter and loop source in a single tool; operating temperature -20 to 55 degrees C.

Manufacturer part number (MPN)

14577

EAN / GTIN

0095969590396

Sales unit

pcs

Manufacturer model

Fluke 789

DC measurement

Range 0-1 A DC

Resolution

1 mA

Accuracy

0.2% + 2 LSD

Range

0-30 mA

AC measurement

Range 0-1 A AC

Accuracy (25 Hz to 2 kHz)

+/- 1% +2 LSD

Current sourcing

Range 0-20 mA or 4-20 mA

Drive capability

24 V Compliance or 1200 Ω @ 20 mA

Continuity

Beeps for resistance < 100 Ω

Voltage measurement

Range 0-1000 V AC (true-rms) or DC

Resistance measurement

to 40 MΩ, 0.2% + 1 LSD

Diode test

2.0 V shows diode voltage drop

Display current and % of span

Yes

Auto Step, Auto Ramp

Yes

Operating temperature

-20°C to 55°C

HS Code

9030.33

• EAN 0095969590396
• SAP 1000027561
• Code 8247184
