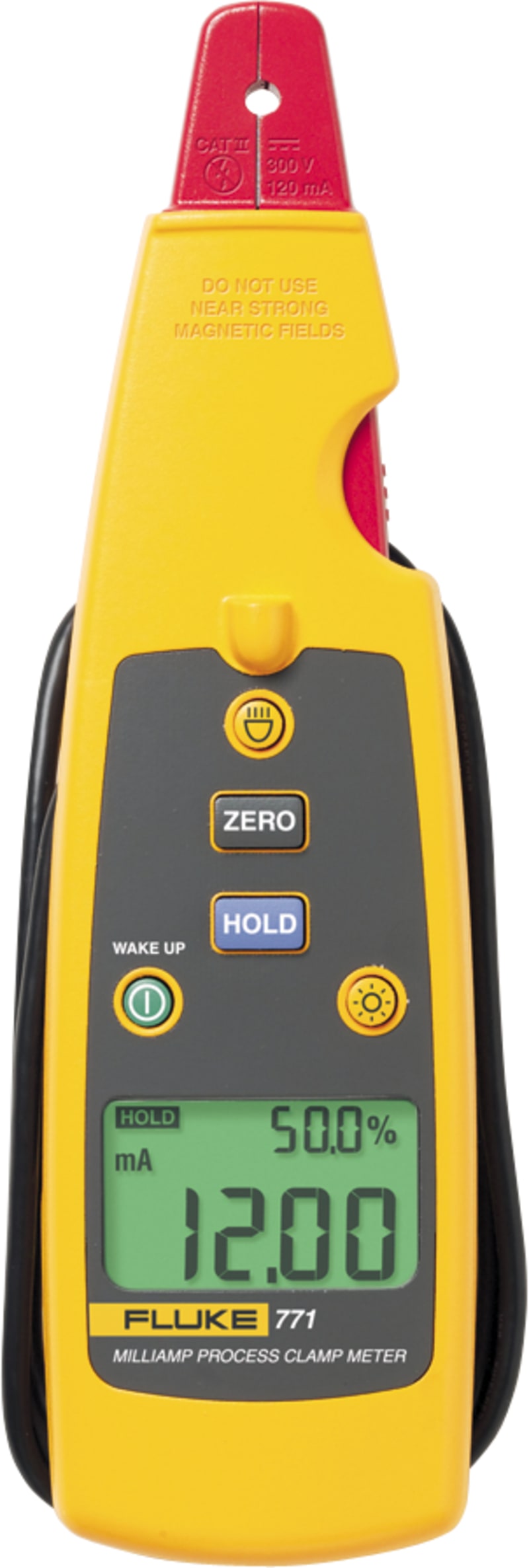

Fluke 771 Milliamp Process Clamp Meter

Handheld milliamp process clamp for measuring 4-20 mA loop signals without breaking the circuit. Jaw accepts conductors up to 4.5 mm diameter; 0-20.99 mA measurement range with 0.01% per degree C temperature coefficient. Operates -10 to 50 degrees C, IP40, powered by two AA cells with 40 hours typical battery life. Suitable for commissioning and troubleshooting instrumentation loops in industrial process environments.

Manufacturer part number (MPN)

59469

EAN / GTIN

0095969349697

Sales unit

pcs

Manufacturer model

Fluke 771

Diameter of measurable conductor

0.177 in or 4.5 mm max

Operating temperature

-10 to 50°C

Storage temperature

-25 to 60°C

Operating humidity

< 90% @ < 30°C, < 75% @ 30 to 55°C

Operating altitude

0 to 2000 m

IP rating

IP 40

Size

59 x 38 x 212 mm (2.32 x 1.5 x 8.35 in)

Weight

260 G, (9.1 oz)

Vibration

Random 2 g, 5 to 500 Hz

Shock

1 m drop test (except the jaw)

EMI/RFI

Meets EN61326-1

Temperature coefficient

0.01% °C ( 28°C)

Power, battery life

(2) AA 1.5 V Alkaline, IEC LR6, 40 hours typical

Warranty

Three years for electronics One year for cable and clamp assembly

mA measurement (measured by clamp)

Resolution / range 0 to 20.99 mA

HS Code

9030.33

• EAN 0095969349697
• SAP 1000024276
• Code 8213374
• Alt. designation 2646347
