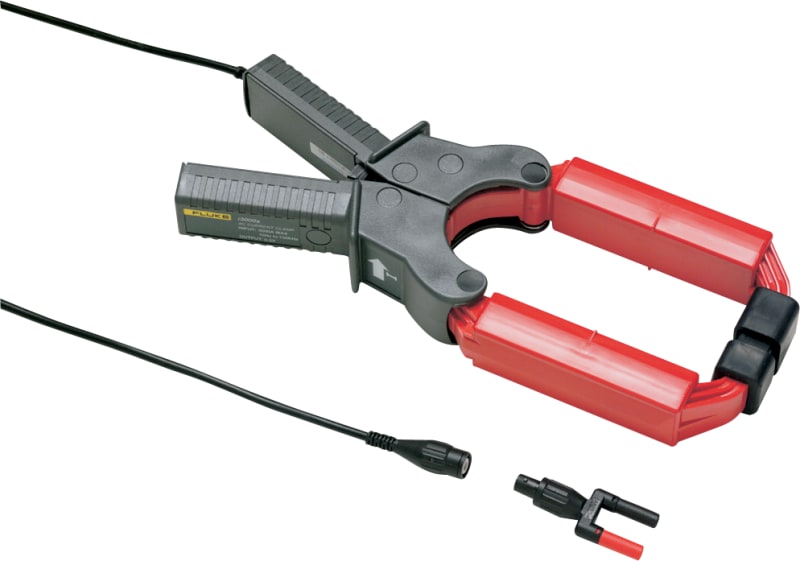

Fluke i3000s AC Current Clamp (14133)

Fluke i3000s is an AC current clamp for ScopeMeter and multimeter use, optimised for measurements on power distribution systems. Ranges are 30 A, 300 A and 3000 A with corresponding outputs of 10 mV/A, 1 mV/A and 0.1 mV/A. Basic accuracy is 2% + 2 A at 48 to 65 Hz; usable frequency 10 Hz to 100 kHz; CAT III 600 V with a 64 mm maximum conductor diameter and 2.1 m output cable with BNC adapter.

Manufacturer part number (MPN)

14133

EAN / GTIN

0095969062022

Sales unit

pcs

Package quantity

5 pcs

Manufacturer model

Fluke I3000S

Nominal current range

30 A 300A 3000A

Continuous current range

1 A - 30 A 1 A - 300 A 1 A - 3000 A

Maximum non-destructive current

4000 A

Lowest measureable current

1 A

Basic accuracy

2% + 2 A (48-65 Hz) % reading + floorspec

Useable frequency

10 Hz - 100 kHz

Output level(s)

10 mv/A 1 mv/A 0.1 mv/A

Safety

CAT III, 600 V

Maximum voltage

600 V AC

Maximum conductor diameter

64 mm

Output cable length

2.1 m

BNC adapter

Yes

HS Code

9030.33

• EAN 0095969062022
• SAP 1000083905
• Code 8864062
