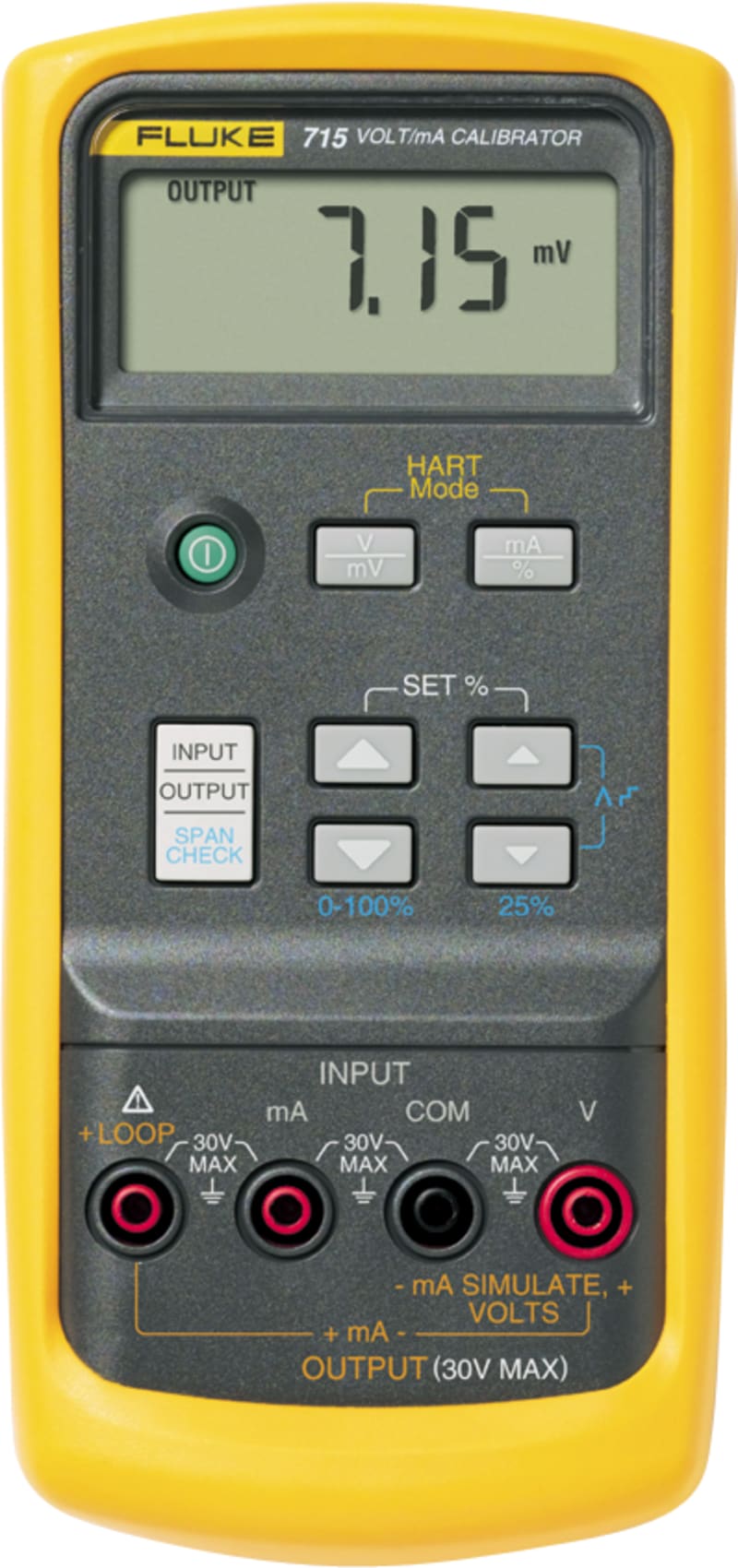

Fluke 715 Volt/mA Loop Calibrator (14580)

Fluke 715 volt/mA loop calibrator (order code 14580) sources, simulates and measures 4-20 mA current-loop signals and 0-20 V DC. It provides 24 V loop power for transmitter testing and covers a 0-200 mV range at 0.01 mV resolution with 0.015% accuracy. Typical use is field commissioning and troubleshooting of process instrumentation and control loops.

Manufacturer part number (MPN)

14580

EAN / GTIN

0095969050692

Sales unit

pcs

Manufacturer model

Fluke 715

Measure / Source mV

Range 0 to 200 mV

Resolution

0.01 mV

Accuracy

0.015% + 2 counts

Measure / Source V

Range 0 to 20 V

Measure / Source/ Simulate mA (% of span)

Range 0 to 24 mA (-25% to 125%)

Loop power

Range 24 V DC

Display

Clear 5 digit LCD

Operating temperature

-10°C to 55°C

Storage temperature

-40°C to 60°C

Humidity (without condensation)

95% (10°C to 30°C)

Operating altitude

3,000 m max

Safety

CSA C22.2 No. 1010.1:1992

Size (L x W x D)

187 x 87 x 32 mm

Weight

Approx. 330 g

Shock and vibration

Random, 2 G, 5-500 Hz

HS Code

9031.80
