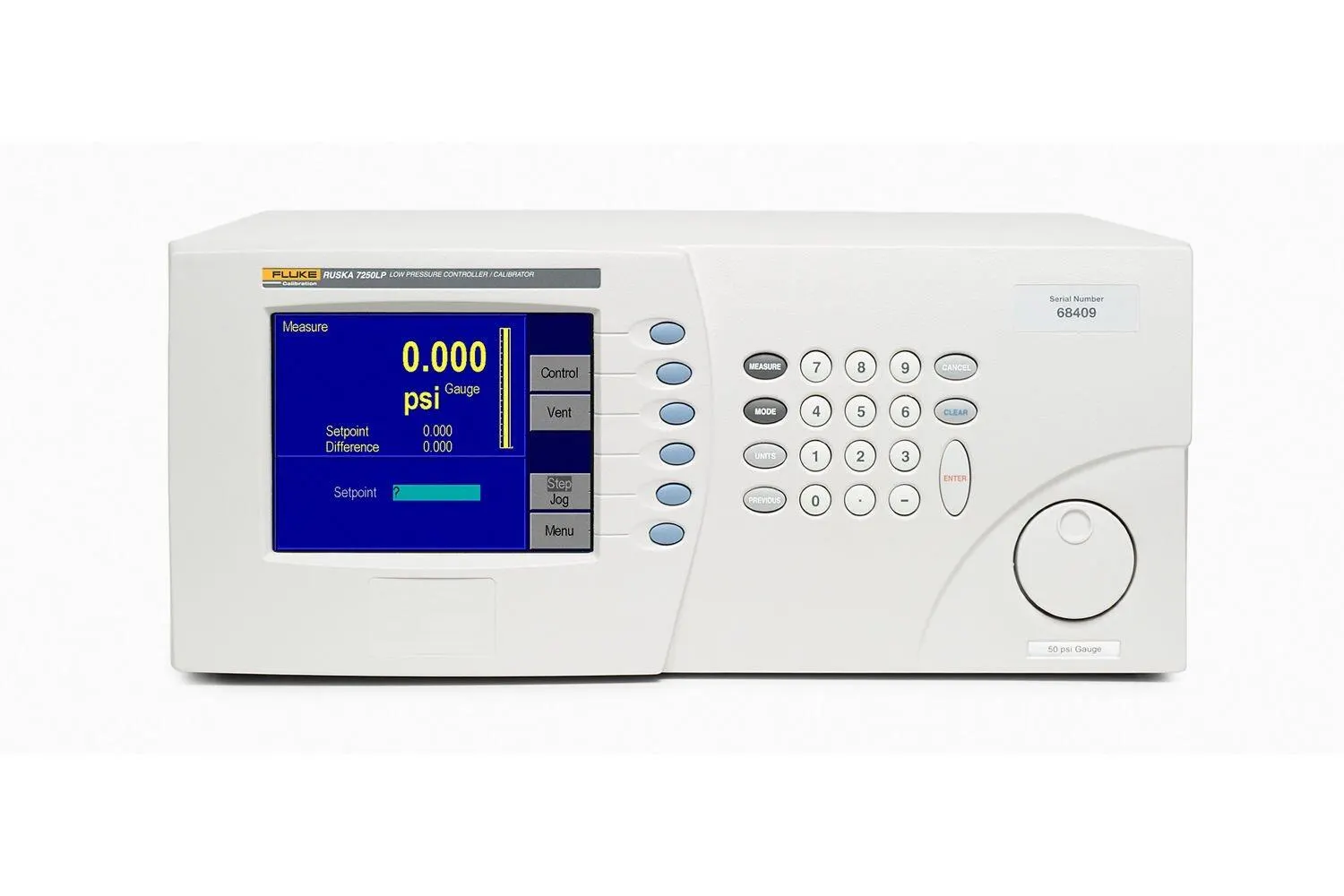

7050LP Low Pressure Indicator

The 7250LP Low pressure indicator from Fluke Calibration is used for pressure control and maintaining pressure range using a low pressure sensor.

Manufacturer part number (MPN)

3852352 Brand: Fluke Category: Tools Model 7050LP: 10/30 inH2O (25/75 mbar) 20/60 inH2O (50/150 mbar) 35/100 inH2O (87/250 mbar) Optional Modes: Absolute using barometric reference sensor for ranges from 15 to 1500 psig (1.0 to 100 barg) Absolute using vacuum reference option for ranges 5 to 1500 psig (400 mbar to 100 barg) Negative gauge Precision: Model 7050LP From 10% to 100% of maximum FS, 0.005% reading, Below 10% maximum FS: 0.005% of 10% maximum FS Stability: 0.0075% of reading per year Display Resolution: User selectable to 1:1,000,000 Negative Gauge Precision (optional): Same as the corresponding gauge pressure Calibration: An ISO-17025 accredited calibration is provided. Communications: RS232 and IEEE-488, SCPI syntax. Series 7250, 7215, Model 7000 and Series 6000 emulation are standard. MET/CAL® drive—optional LabView® drive Firmware updates are performed via RS232 Interface Menus and functions: The Series 7050 is capable of displaying menus and functions in: English, French, Chinese, German, Japanese, Spanish and Italian Options: Negative gauge onlyMET/CAL driverCOMPASS for PressureRack mount kitDVU Dual Volume Unit Display: TFT, VGA, active matrix, 6.4 in (162.5 mm) 640 x 480 resolution, 65,000 colors Temperature: Operating: 64°F to 96°F (18°C to 36°C) Storage: -4°F to 158°F (-20°C to 70°C) Humidity: 5% to 95% relative humidity, non-condensing Dimensions (h x w x d): All versions: 7 in x 16.5 in x 19 in (178 mm x 419 mm x 483 mm) Weight: All models: 16 lb (7.5 kg) Power: 90 to 260 VAC, 50/60 Hz, 150W Test Port and Reference Connection: 1/4 in NPT female Warm Up Time: 2 to 3 hours; may be left on indefinitely Pressure Medium: nitrogen or clean dry air
