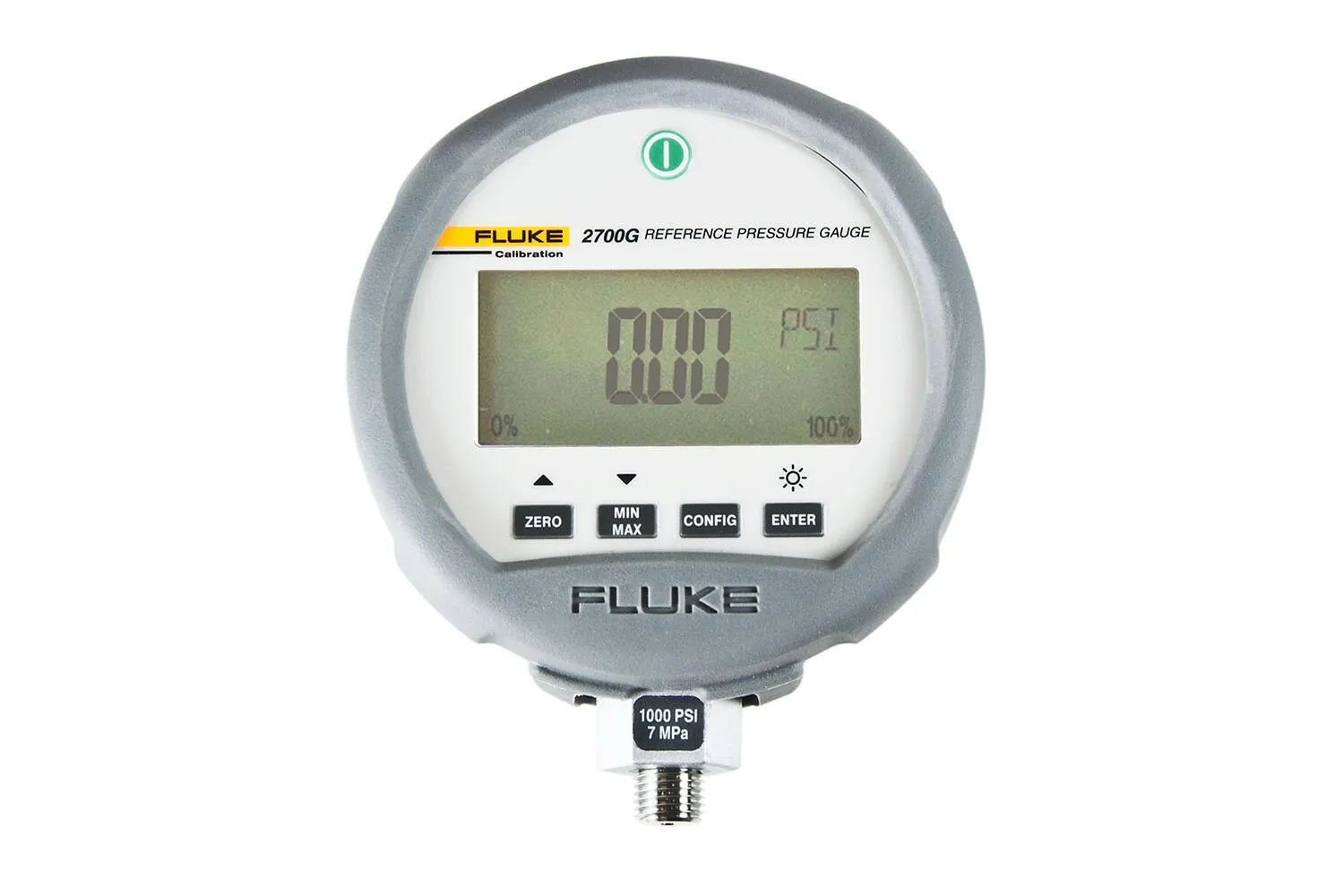

2700G Series Reference Pressure Gauges

The 2700G Reference Pressure Gauges provide best-in-class measurement performance in a rugged, easy-to-use, economical package. Improved measurement accuracy allows it to be used for a wide variety of applications.

Manufacturer part number (MPN)

4152258

Brand

Fluke

Category

Tools

Model Range

Resolution

2700G-BG100K –15 psi to 15 psi –100 kPa to 100 kPa

0.001 psi 0.0001 bar

2700G-BG200K –15 to 30 psi –100 kPa to 200 kPa

0.001 psi 0.0001 bar

2700G-BG700K –12 psi to 100 psi –80 kPa to 700 kPa

0.01 psi 0.0001 bar

2700G-BG2M –12 psi to 300 psi –80 kPa to 2 MPa

0.01 psi 0.001 bar

2700G-BG3.5M –12 psi to 500 psi –80 kPa to 3.5 MPa

0.01 psi 0.001 bar

2700G-BG7M –12 to 1000 psi –80 kPa to 7 MPa

0.1 psi 0.001 bar

2700G-G20M 0 to 3000 psi 0 to 20 MPa

0.1 psi 0.01 bar

2700G-G35M 0 to 5000 psi 0 to 35 MPa

0.1 psi 0.01 bar

2700G-G70M 0 to 10 000 psi 0 to 70 MPa

1 psi 0.01 bar

Dimensions (HxWxD)

12.7 cm x 11.4 cm x 3.7 cm (5 in x 4.5 in x 1.5 in)

Pressure connection

¼ in NPT Male

Housing/weight

Cast ZNAL/0.56 kg (1.22 lb)

Display

5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 %

Power

Three AA alkaline batteries

Battery life

75 hours

HS Code

9026.20

• OEM-URL https://www.fluke.com/en-us/product/calibration-tools/pressure-calibration/pressure-monitors/2700g
