Product Description

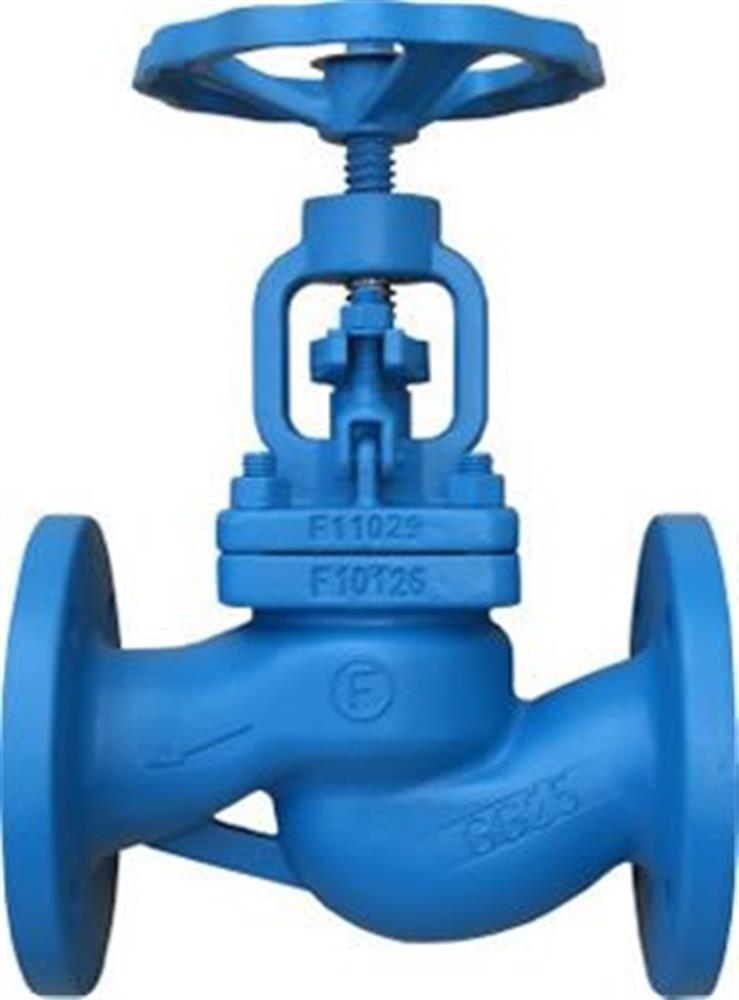

Flange Seat Valve flange/flange GG25/304/graphite. Seat valve PN40, cast steel (Technique / Industrial valves / Slide, needle, and seat valves). Principal data: dn dimension 200, pressure pn 16 bar. Supplied under manufacturer part number FIG.101 DN 200, HS code 8481.80, country of origin China.
Technical Specifications
- Product type
- Seat valve PN40, cast steel
- Product group
- Industrial valves
- DN dimension
- 200
- Pressure PN
- 16 bar
- Temperature max
- 300 °C
- Temperature min
- -10 °C
- Length built-in dimension
- 600 mm
- House
- GG25
- Disc / dampers
- 304
- Liner / packing
- Graphite
- Grips
- Handwheel
- Handle color
- Blue
- Country of origin
- China
- Customs tariff code (EU CN)
- 84818071
- HS code
- 8481.80
- Manufacturer part number
- FIG.101 DN 200
- VVS number
- 412740020
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN FIG.101 DN 200
