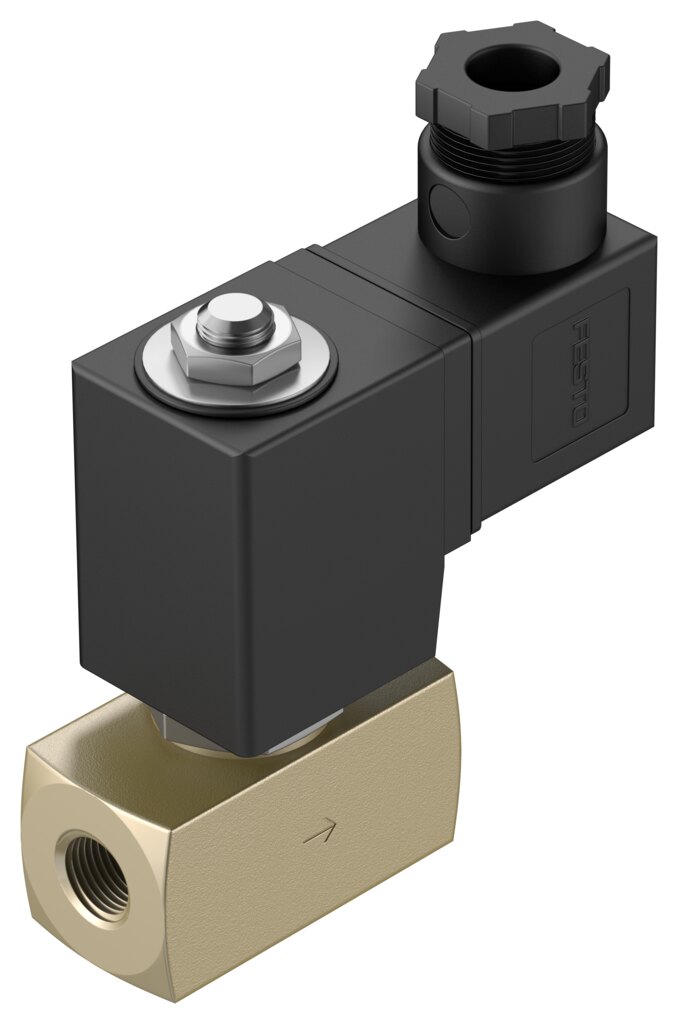

Festo VZWD-L-M22C-M-G14-60-V-1P4-4 Solenoid valve
Part number1491847EAN / GTIN4052568106454HS code8481.80
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VZWD-L-M22C-M-G14-60-V-1P4-4 — Solenoid valve, process and media valves. valve function 2/2-way, single solenoid, closed; nominal size 6 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 1491847
- Type code
- VZWD-L-M22C-M-G14-60-V-1P4-4
- EAN / GTIN
- 4052568106454
- Product category
- Process and media valves
- Design
- Directly actuated poppet valve
- Type of actuation
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- Inline installation
- Connection Process valve
- G1/4
- Electrical connection
- Plug, To EN 175301-803, Square design
- Nominal size
- 6 mm
- Valve function
- 2/2-way, single solenoid, closed
- Manual override
- None
- Flow direction
- Non-reversible
- Medium
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Mineral oil, Water, Neutral fluids, Other media on request
- Nominal pressure PN
- 100
- Pressure difference
- 0 MPa (0 bar; 0 psi)
- Characteristic coil data
- 24 V DC: 11.0 W
- Insulation material class
- H
- Permissible voltage fluctuations
- +/-10%
- Duty cycle
- 100%
- Type of reset
- Mechanical spring
- Type of piloting
- Direct
- Symbol
- 00992979
- Medium pressure
- 0 ... 0.4 MPa (0 ... 4 bar; 0 ... 58 psi)
- Max. viscosity
- 22 mm²/s
- Media temperature
- -10 ... 80 °C
- Ambient temperature
- -10 ... 35 °C
- Leakage rate to EN 12266-1
- A
- Flow rate Kv
- 0.4 m³/h
- Standard nominal flow rate (standardised to DIN 1343)
- 430 l/min
- Switching time on
- 20 ms
- Switching time off
- 18 ms
- LABS (PWIS) conformity
- VDMA24364 zone III
- Material housing
- Brass
- Material number housing
- CW614N
- Material seals
- Fluoro rubber
- Material plunger tube
- High-alloy steel
- Product weight
- 600 g
- Degree of protection
- IP65
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- Max. tightening torque for connecting thread
- 35 Nm
- Max. tightening torque for coil fastening
- 2 Nm
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- El
- Return
- Spring
- Temperature min
- -10 °C
- Temperature max
- 35 °C
- Carbon footprint (EPD)
- 11.5497 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84818079
- HS code
- 8481.80
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 4052568106454
- MPN 1491847
Product Documentation
Document preview: VZWD-L-M22C-M-G14-60-V-1P4-4 — Festo product documentation
More from Festo
Festo

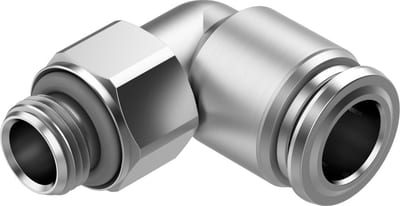

Festo NPQR-L-G18-Q8 Push-in fitting
