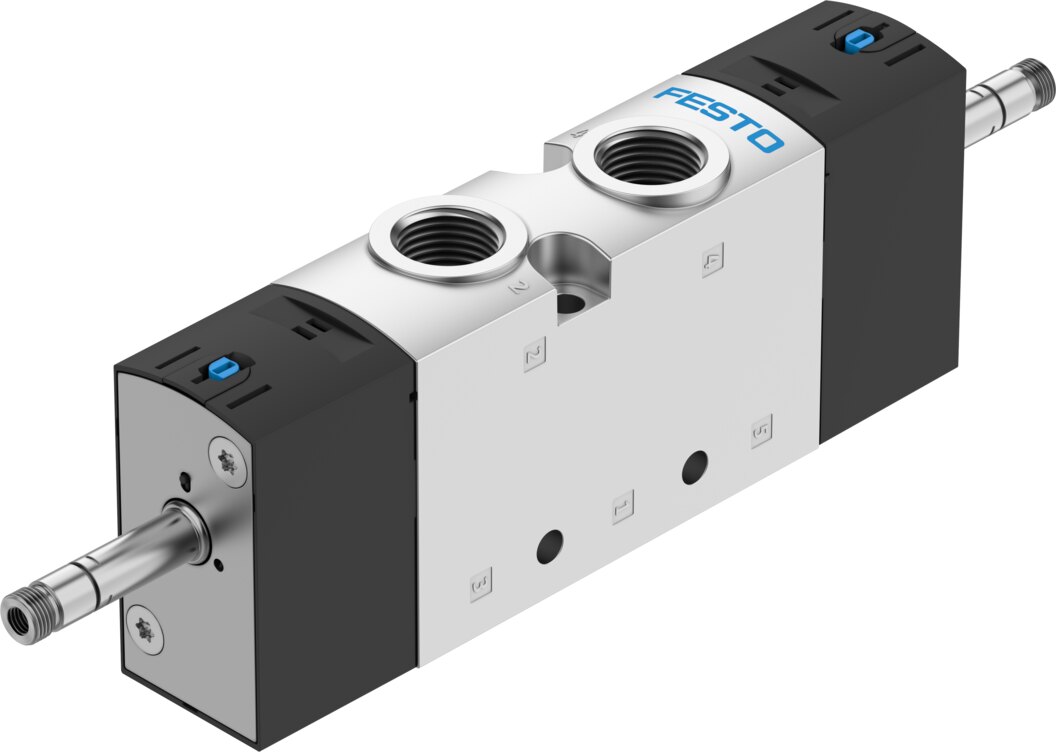

Festo VUVS-L30-B52-D-G38-F8 Solenoid valve
Part number575609EAN / GTIN4052568261467HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVS-L30-B52-D-G38-F8 — Solenoid valve, universal directional control valves. valve function 5/2-way, double solenoid; operating pressure 0.15. 1 MPa (1.5. 10 bar); nominal size 9.4 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 575609
- Type code
- VUVS-L30-B52-D-G38-F8
- EAN / GTIN
- 4052568261467
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Valve size
- 31 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 2300 l/min
- pneumatic working port
- G3/8
- Operating pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar)
- Design
- Piston gate valve
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- DNVGL-TAA000011J
- Nominal size
- 9.4 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991013
- lap
- Overlap
- b value
- 0.4
- C value
- 9.9 l/sbar
- Switching time reversal
- 13 ms
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse with 1 signal
- 3600 µs
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 464 g
- Type of mounting
- On manifold rail, with through-hole
- Breather connection
- Not ducted
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 4
- G3/8
- Pneumatic connection, port 5
- G3/8
- Material seals
- HNBR, NBR
- Material housing
- Die-cast aluminium, painted
- Material piston slide
- Wrought aluminium alloy
- Material screws
- Nickel-plated steel
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G3/8"
- Activation
- El
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Working pressure
- 10 bar
- Carbon footprint (EPD)
- 9.2444 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568261467
- MPN 575609
Product Documentation
Document preview: VUVS-L30-B52-D-G38-F8 — Festo product documentation
More from Festo
Festo

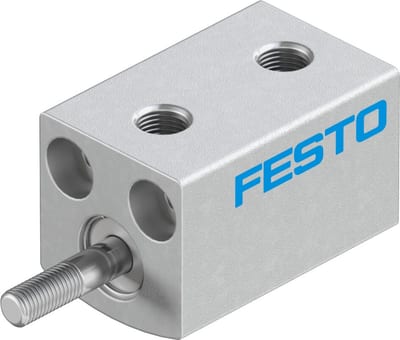

Festo ADVC-4-5-A-P Short-stroke cylinder
188055
Festo

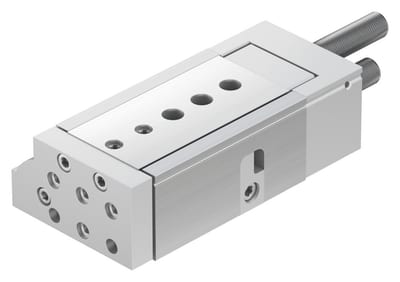

Festo DGSL-20-30-PA Mini slide
544007
Festo

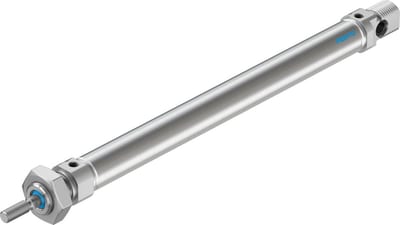

Festo DSNU-16-150-PPV-A ISO cylinder
1908273
Festo

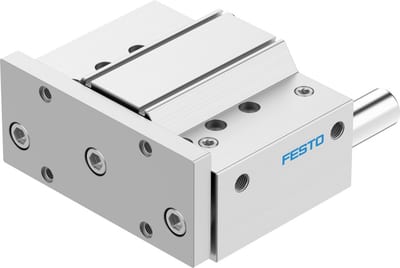

Festo DFM-100-80-P-A-GF Guided drive
170894
Festo

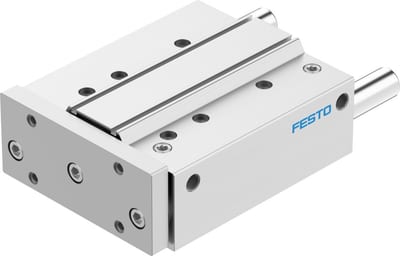

Festo DFM-80-160-P-A-GF Guided drive
170890
Festo
Festo VUVG-L10-P53C-T-M5-1R8L Solenoid valve
577346
Festo

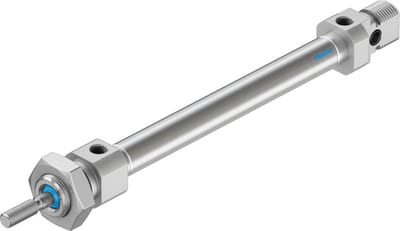

Festo DSNU-8-60-P-A ISO cylinder
