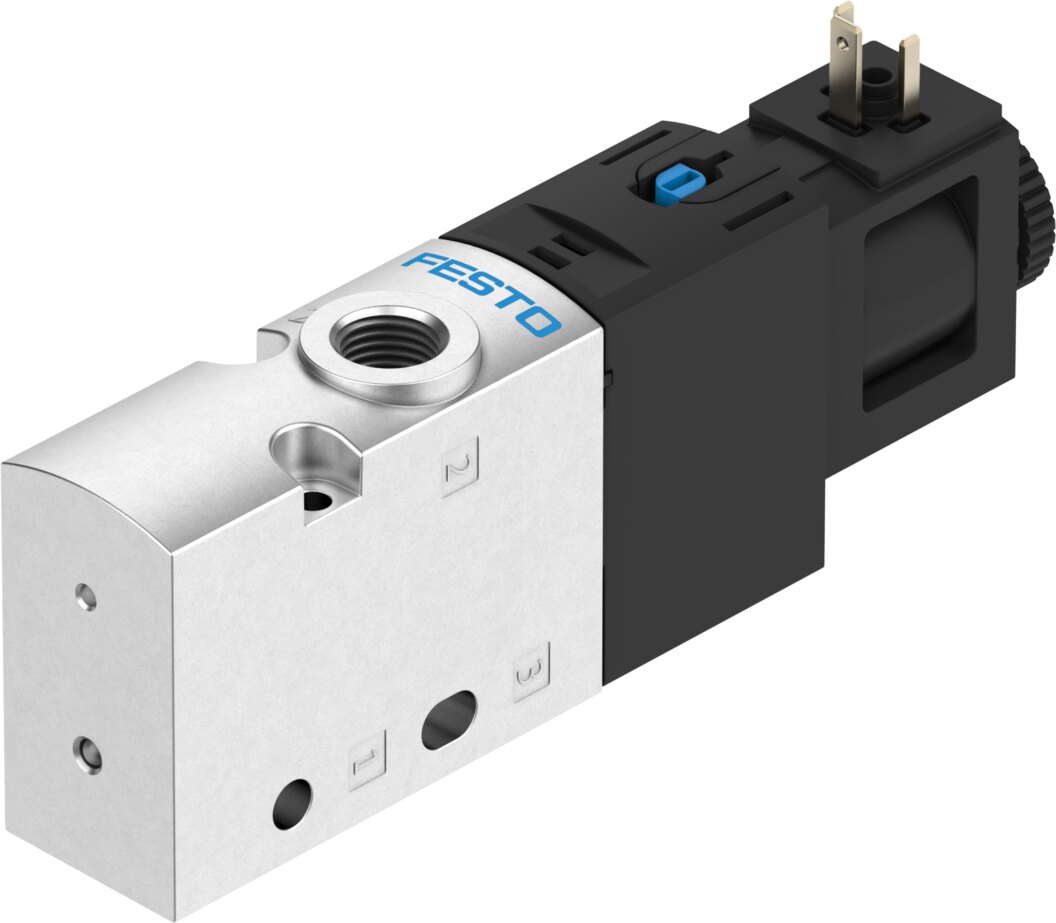

Festo VUVS-L20-M32C-MD-G18-F7-1C1 Solenoid valve
Part number575274EAN / GTIN4052568103798HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVS-L20-M32C-MD-G18-F7-1C1 — Solenoid valve, universal directional control valves. valve function 3/2-way, single solenoid, closed; operating pressure 0.25. 1 MPa (2.5. 10 bar); nominal size 5.7 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 575274
- Type code
- VUVS-L20-M32C-MD-G18-F7-1C1
- EAN / GTIN
- 4052568103798
- Product category
- Universal directional control valves
- Valve function
- 3/2-way, single solenoid, closed
- Type of actuation
- Electrical
- Valve size
- 21 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 700 l/min
- pneumatic working port
- G1/8
- Operating voltage
- 24 V DC
- Operating pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65, with plug socket, To IEC 60529
- Nominal size
- 5.7 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00995994
- lap
- Overlap
- b value
- 0.35
- C value
- 2.9 l/sbar
- Switching time off
- 32 ms
- Switching time on
- 14 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1900 µs
- Max. negative test pulse with 1 signal
- 2700 µs
- Characteristic coil data
- 24 V DC: 2.6 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 170 g
- Electrical connection
- Type C, To EN 175301-803
- Type of mounting
- On manifold rail, with through-hole
- Breather connection
- Not ducted
- Pilot exhaust port 82
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Material seals
- HNBR, NBR
- Material housing
- Die-cast aluminium, painted
- Material piston slide
- Wrought aluminium alloy
- Material screws
- Galvanised steel
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Return
- Spring
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Working pressure
- 10 bar
- Carbon footprint (EPD)
- 3.8952 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568103798
- MPN 575274
Product Documentation
Document preview: VUVS-L20-M32C-MD-G18-F7-1C1 — Festo product documentation
More from Festo
Festo
Festo VUVS-L25-P53C-MZD-G14-F8-1C1 Solenoid valve
575526
Festo

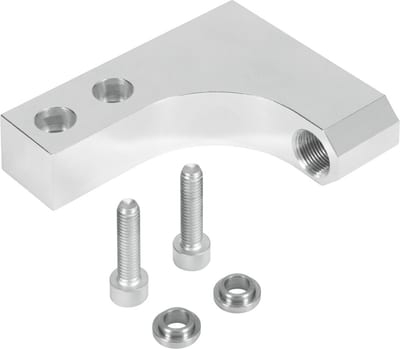

Festo DADP-ES-G6-12 Shock absorber retainer
1812471
Festo
Festo FRC-1/8-D-O-MINI Service unit
162738
Festo

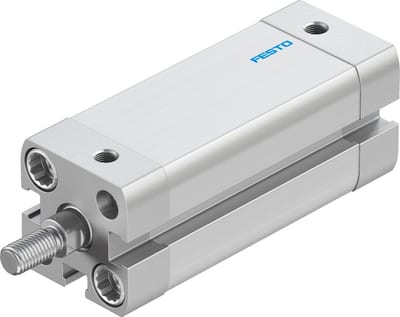

Festo ADN-16-40-A-P-A Compact cylinder
536225
Festo

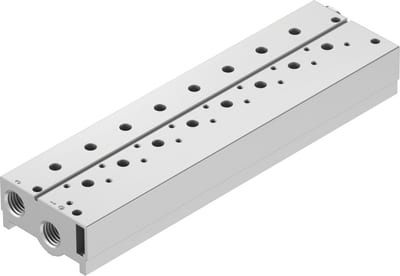

Festo VABM-B10-25S-G38-8-P3 Manifold block
8026303
Festo

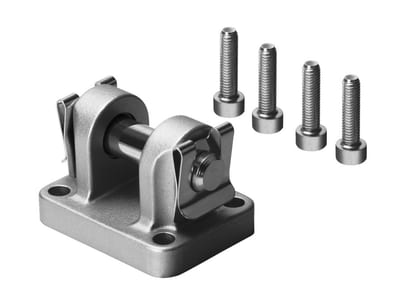

Festo SZB-40 Swivel flange
30799
Festo

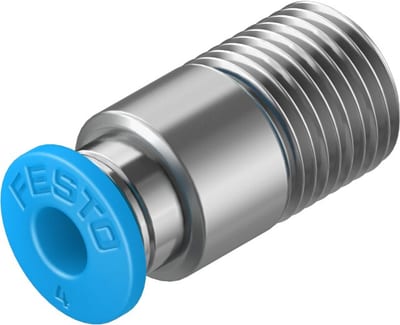

Festo QS-1/8-4-I Push-in fitting
153012
Festo

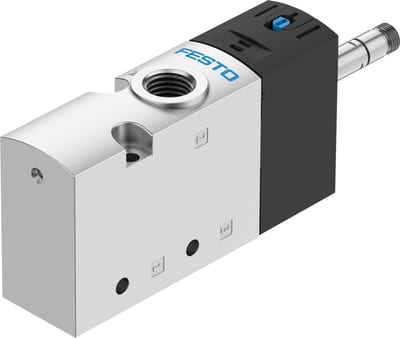

Festo VUVS-L25-M32U-AZD-G14-F8 Solenoid valve
