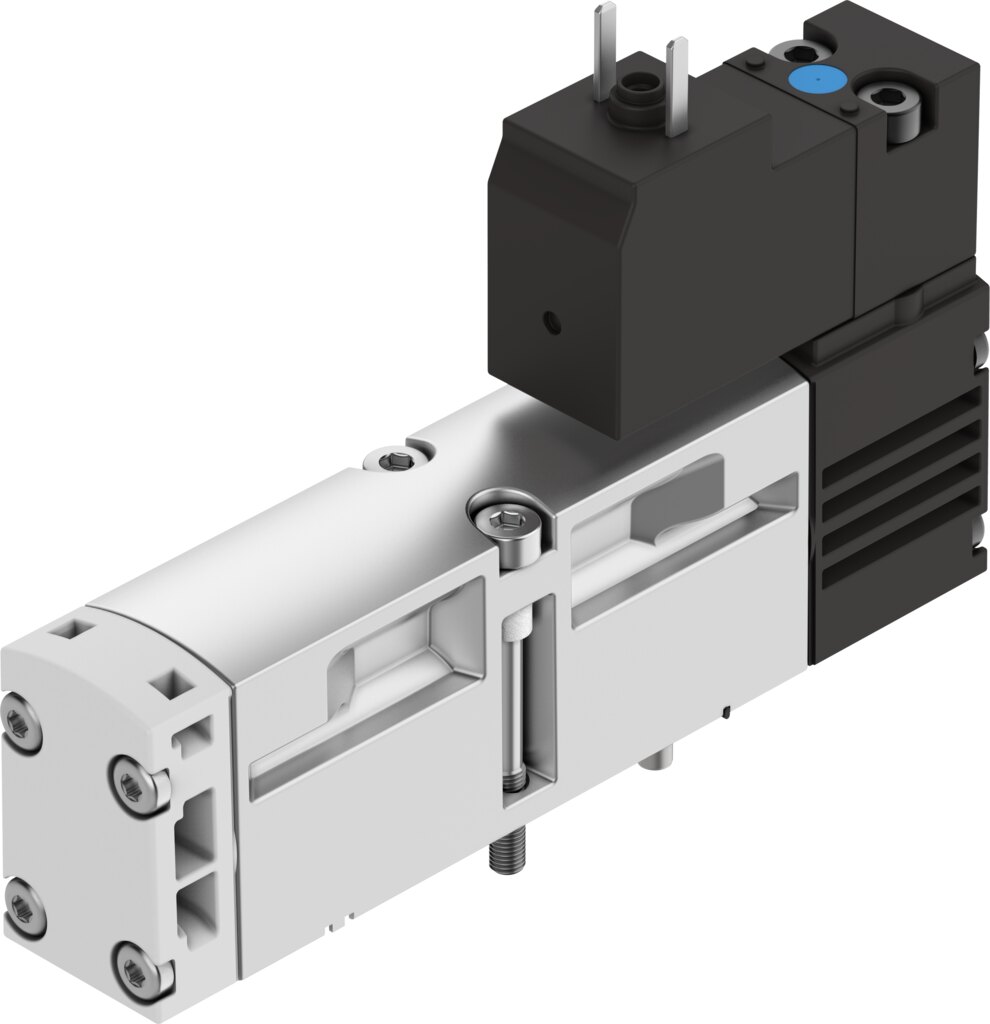

Festo VSVA-B-M52-AH-A2-1C1 Solenoid valve

Festo VSVA-B-M52-AH-A2-1C1 — Solenoid valve, standards-based directional control valves. valve function 5/2-way, single solenoid; operating pressure 0.2. 1 MPa (2. 10 bar); conforms to standard ISO 15407-1, VDMA 24563.

Manufacturer part number (MPN)

546701

Type code

VSVA-B-M52-AH-A2-1C1

EAN / GTIN

4052568184858

Product category

Standards-based directional control valves

Valve function

5/2-way, single solenoid

Type of actuation

Electrical

Valve size

18 mm

Standard nominal flow rate (standardised to DIN 1343)

550 l/min

pneumatic working port

Sub-base size 18 mm to ISO 15407-1, Sub-base size 02 to VDMA 24563, G1/8

Operating voltage

24 V DC

Operating pressure

0.2 ... 1 MPa (2 ... 10 bar)

Design

Piston gate valve

Type of reset

Pneumatic spring

Approval

c UL us - Recognised (Oil)

Degree of protection

IP65, NEMA 4

Nominal size

5 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Conforms to standard

ISO 15407-1, VDMA 24563

Manual override

Non-detenting

Type of piloting

Piloted

Pilot air supply

Internal

Flow direction

Non-reversible

Symbol

00991049

lap

Overlap

Signal status display

LED

Pilot pressure

0.3 ... 1 MPa (3 ... 10 bar)

Flow rate of valve

750 l/min

Flow rate of valve on individual sub-base

550 l/min

Flow rate of pneumatically interlinked valve

550 l/min

Switching time off

19 ms

Switching time on

21 ms

Duty cycle

100%

Max. positive test pulse with 0 signal

1800 µs

Max. negative test pulse with 1 signal

800 µs

Characteristic coil data

24 V DC: 1.8 W

Permissible voltage fluctuations

-15% / +10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

0 - No corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-5 ... 50 °C

Relative air humidity

0 - 90%

Sound pressure level

85 dB(A)

Pilot medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature

-5 ... 50 °C

Max. tightening torque for valve mounting

0.9 ... 1.1 Nm

Product weight

127 g

Electrical connection

Type C, To DIN EN 175301-803, Without PE conductor

Type of mounting

On sub-base

Auxiliary pilot air port 12

Sub-base size 18 mm to ISO 15407-1

Auxiliary pilot air port 14

Sub-base size 18 mm to ISO 15407-1

Pilot exhaust port 82/84

Ducted, Not ducted as per standard

Pneumatic connection, port 1

Sub-base size 18 mm to ISO 15407-1

Pneumatic connection, port 2

Sub-base size 18 mm to ISO 15407-1

Pneumatic connection, port 3

Sub-base size 18 mm to ISO 15407-1

Pneumatic connection, port 4

Sub-base size 18 mm to ISO 15407-1

Pneumatic connection, port 5

Sub-base size 18 mm to ISO 15407-1

Pilot control interface

To ISO 15218

Material seals

HNBR, NBR

Material housing

Die-cast aluminium

Material screws

Steel, Galvanised

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Carbon footprint (EPD)

2.7773 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
