Festo

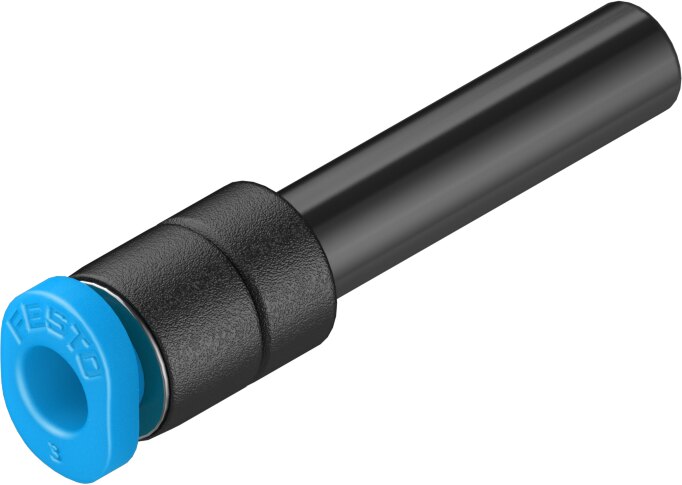

Festo QSM-4H-3 Push-in connector
Part number153328EAN / GTIN4052568033910HS code3917.40
Pneumatics
Fittings & Tubing
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo QSM-4H-3 — Push-in connector, push-in fittings. nominal size 1.7 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 153328
- Type code
- QSM-4H-3
- EAN / GTIN
- 4052568033910
- Product category
- Push-in fittings
- Size
- Mini
- Nominal size
- 1.7 mm
- Tubing insertion depth
- 9.5 mm
- Mounting position
- Any
- Design
- Straight design
- Push-in fittings - Design
- Push-pull principle
- Size of pack
- 10
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar; -13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar; -13.775 ... 203 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 ... 80 °C
- Product weight
- 0.8 g
- Pneumatic connection, port 1
- Push-in sleeve Ø 4 mm
- Pneumatic connection, port 2
- For tubing outer diameter of 3 mm
- Colour of release ring
- Blue
- Material housing
- PBT
- Material release ring
- POM
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- Product type
- Reduction fittings, plugs, nipple pipes, and end caps C
- Product group
- Pneumatics
- Outer hose diameter 2
- 3 mm
- Outer hose diameter
- 4 mm
- Material
- composite
- Temperature min
- -10 °C
- Temperature max
- 80 °C
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.0081 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 39174000
- HS code
- 3917.40
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 4052568033910
- MPN 153328
Product Documentation
Document preview: QSM-4H-3 — Festo product documentation
More from Festo
Festo
Festo DGSL-25-50-P1A Mini slide
544043
Festo
Festo NPQH-T-M5-Q4-P10 Push-in T-fitting
578390
Festo
Festo CRSG-M8 Rod clevis
4052568066079
Festo
Festo DFM-20-30-P-A-KF Guided drive
170917
Festo
Festo QS-6 Push-in connector
153032
Festo
Festo JMFH-5-3/8-S-B-EX Solenoid valve
535935
Festo
Festo CPE14-PRS-3/8-10 Manifold block
543838
Festo
Festo AEVU-32-10-P-A Compact cylinder
156951
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 153328?
- 153328 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 153328.
- What is the HS code for 153328?
- The customs tariff (HS) code for 153328 is 3917.40.
- Who manufactures 153328?
- 153328 is a Festo product in the Pneumatics range.
- Is a datasheet available for 153328?
- Yes — the 153328 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 153328?
- The minimum order quantity is 1.
- Is 153328 available?
- Yes — 153328 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
