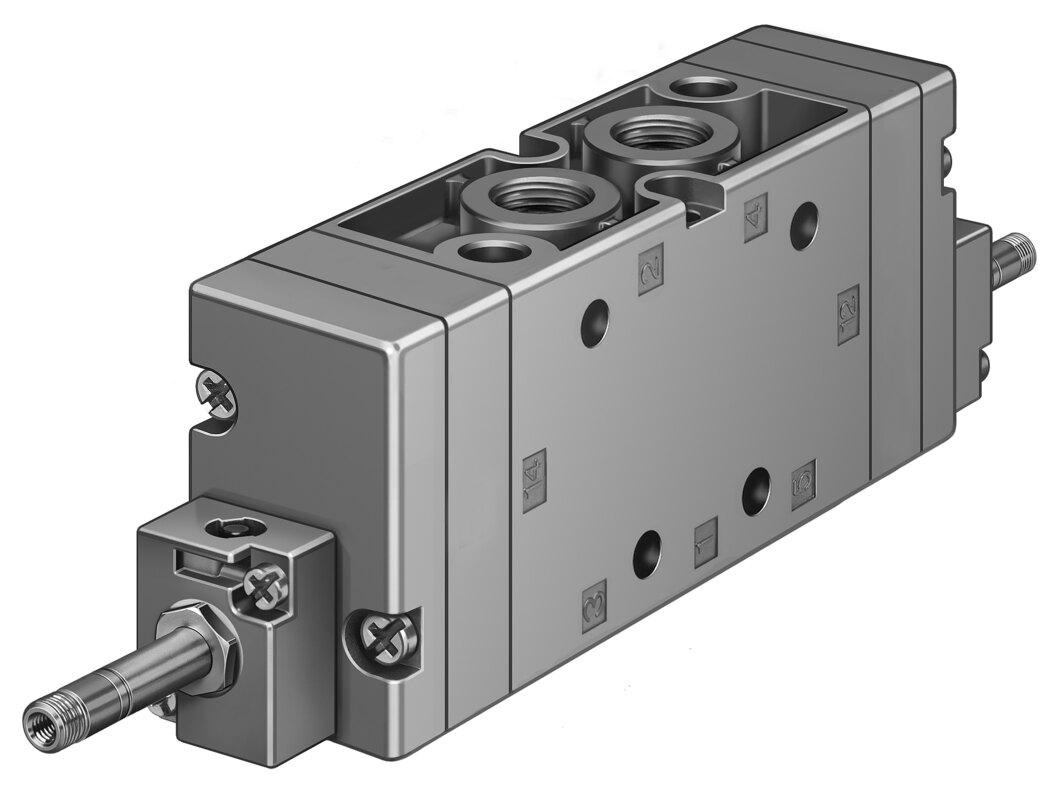

Festo MFH-5/3B-3/8-S-B Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MFH-5/3B-3/8-S-B — Solenoid valve, valves and valve terminals. valve function 5/3-way, pressurised; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 12 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 31319
- Type code
- MFH-5/3B-3/8-S-B
- EAN / GTIN
- 4052568114480
- Product category
- Valves and valve terminals
- Valve function
- 5/3-way, pressurised
- Type of actuation
- Electrical
- Construction width
- 40 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 2600 l/min
- pneumatic working port
- G3/8
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Nominal size
- 12 mm
- Grid dimension
- 41 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991031
- lap
- Overlap
- Pilot pressure
- 0.3 ... 1 MPa (3 ... 10 bar)
- Max. switching frequency
- 3 Hz
- Switching time off
- 118 ms
- Switching time on
- 25 ms
- Switching time reversal
- 78 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 780 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On PR rail, with through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 4
- G3/8
- Pneumatic connection, port 5
- G3/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G3/8"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 15.2751 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568114480
- MPN 31319
Product Documentation
More from Festo
Festo
Festo LFX-1/2-D-MAXI Activated carbon filter
532785
Festo

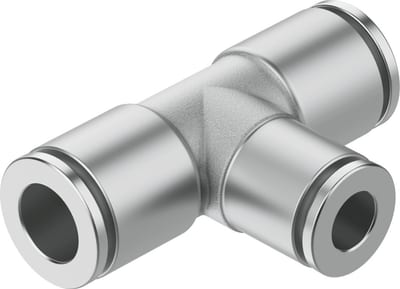

Festo NPQH-T-Q8-Q6-P10 Push-in T-connector
578387
Festo

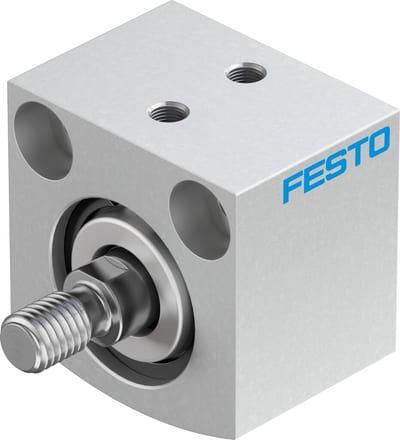

Festo ADVC Short stroke cylinder - 25mm, M5, 5mm, ADVC-25-5-A-P
188187
Festo

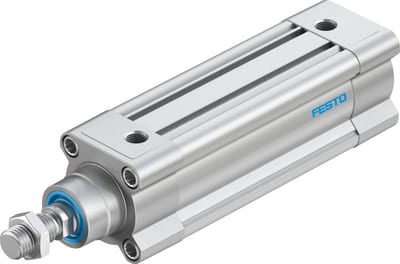

Festo DSBC-50-100-PPSA-N3 ISO cylinder
1376307
Festo
Festo DNC-50-150-PPV-A ISO cylinder
1922633
Festo

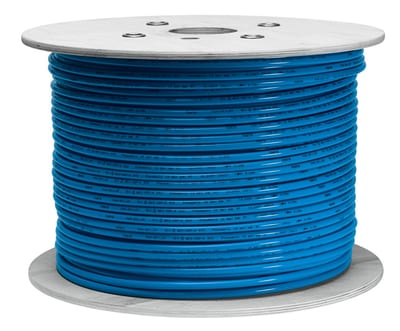

Festo PUN-H-12X2-BL-200 Plastic tubing
