Festo JMFH-5-1/8-S Solenoid valve
Part number14008EAN / GTIN4052568112196HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo JMFH-5-1/8-S — Solenoid valve, universal directional control valves. valve function 5/2-way, double solenoid; operating pressure 0. 1 MPa (0. 10 bar); nominal size 5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 14008
- Type code
- JMFH-5-1/8-S
- EAN / GTIN
- 4052568112196
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Pneumatic
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 600 l/min
- pneumatic working port
- G1/8
- Operating voltage
- Via solenoid coil, must be ordered separately
- Operating pressure
- 0 ... 1 MPa (0 ... 10 bar)
- Design
- Poppet seat
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65
- Nominal size
- 5 mm
- Grid dimension
- 27 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Non-reversible
- Symbol
- 00995755
- lap
- Underlap
- Pilot pressure
- 0.12 ... 0.8 MPa (1.2 ... 8 bar)
- Max. switching frequency
- 25 Hz
- Switching time reversal
- 10 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Characteristic coil data
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 260 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On manifold rail, with through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- M5
- Pilot air port 14
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- Air
- Return
- Air
- Carbon footprint (EPD)
- 3.7523 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568112196
- MPN 14008
Product Documentation
Document preview: JMFH-5-1/8-S — Festo product documentation
More from Festo
Festo

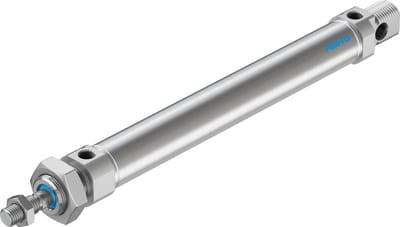

Festo DSNU-25-160-PPV-A ISO cylinder
19250
Festo

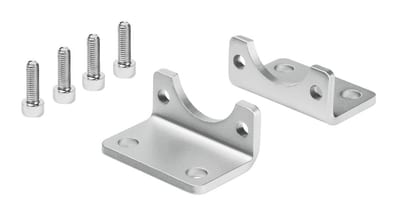

Festo HZB-40 Foot mounting
4052568021788
Festo

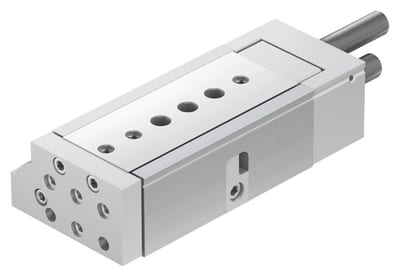

Festo DGSL-20-50-P1A Mini slide
544018
Festo

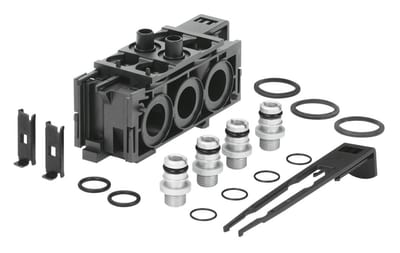

Festo CPE18-PRSE-2 Manifold block
164972
Festo

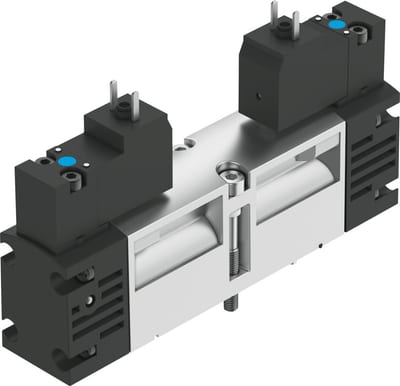

Festo VSVA-B-B52-H-A1-1C1 Solenoid valve
546696
Festo

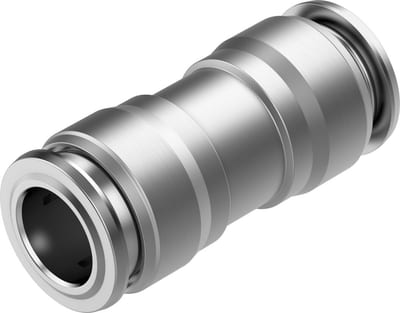

Festo NPQR-D-Q10-E Plug
8085700
Festo
Festo VUVS-L25-P53C-MD-N14-FN Solenoid valve
8192998
Festo

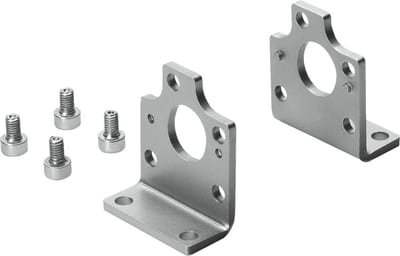

Festo HPC-8 Foot mounting
