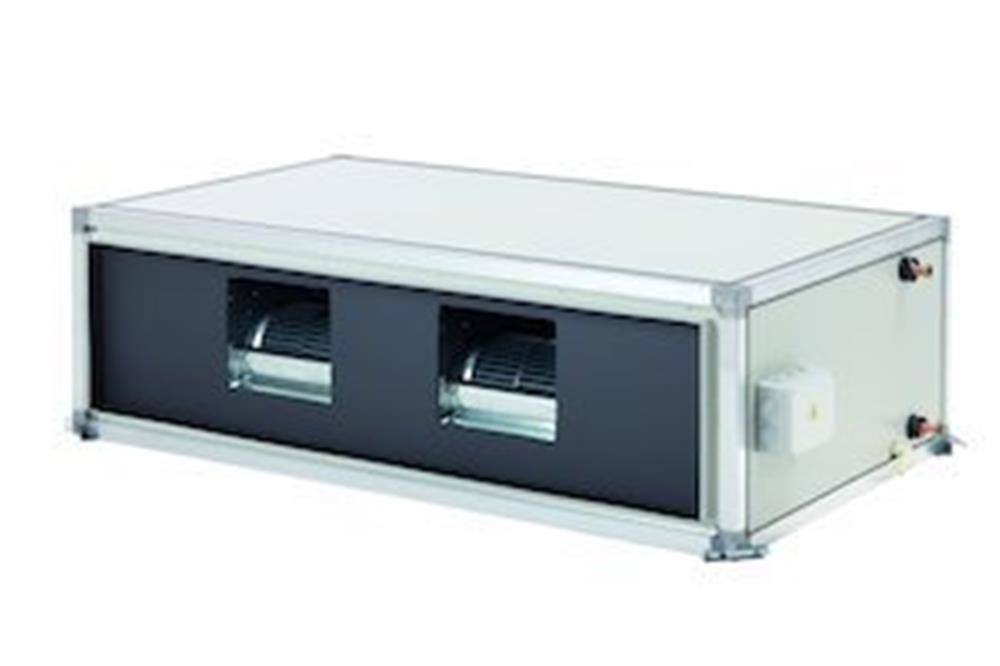

Eurapo EDS 020 high-pressure ducted fan coil, without plenum, EC inverter motor, 4-row coil, no valve fitted, 8.96 kW cooling, 53 dB(A), 2191 m³/h, ESTEDS020-4R+OPT V2 0W
Pricing
Request a quote
We reply within 24 hours
Product Description
Eurapo EDS 020, a high-pressure ducted fan coil from the EST inverter range: double-skin ducted unit, horizontal installation. As ordered it carries a 4-row water coil; an EC brushless motor with built-in inverter; no regulating valve — the unit is supplied for an external valve or for constant-flow operation; the AS air sensor (NTC 10 kΩ at 25 °C) on the air intake; an OPower BMS card (Modbus RTU over RS-485) for integration into a building management system. Rated performance for this configuration: cooling capacity 8.96 kW, air flow 2191 m³/h, sound power level 53 dB(A), water connections 3/4 x 3/4". The EDS is a double-skin, two-pipe ducted unit built from 25 mm insulated panels on an aluminium frame and rated for up to 300 Pa external static pressure. Maximum operating pressure is 16 bar without valves fitted. Full type designation ESTEDS 020-4R+AS+ORBT.10. Supplied under manufacturer part number ESTEDS020-4R+OPT V2 0W, HS code 8415.90, country of origin Italy.
Technical Specifications
- Product type
- Fan coil duct model
- Product group
- Water cooling system
- Cooling capacity
- 8.96 kW
- Sound performance level
- 53 to 53 dB(A)
- Airflow
- 2191 to 2191 m³/h
- Type designation
- ESTEDS 020-4R+AS+ORBT.10
- Pipe connection
- 3/4 x 3/4"
- Height
- 440 mm
- Width
- 1132 mm
- Depth
- 855 mm
- Carbon footprint (EPD)
- 450.9620 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84159000
- HS code
- 8415.90
- Manufacturer part number
- ESTEDS020-4R+OPT V2 0W
Standards & Compliance
- HS Code
- 8415.90
Cross References
- MPN ESTEDS020-4R+OPT V2 0W
