Esylux

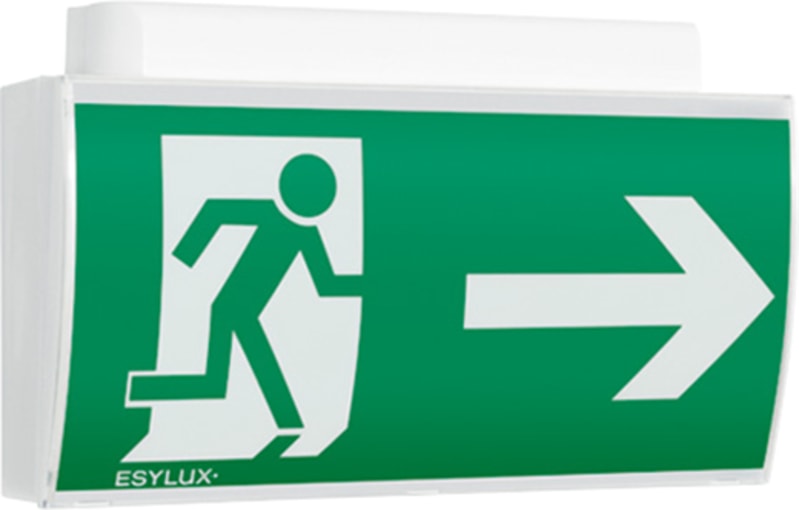

SLE LEDi SC/C Wallmounting
Part numberEN10061806EAN / GTIN4015120061806HS code9405.61
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux EN10061806 Emergency lighting 3 t, LED, selvtestende, Fail-Safe-connector, wall mounting.
Technical Specifications
- Manufacturer part number (MPN)
- EN10061806
- EAN / GTIN
- 4015120061806
- Sales unit
- pcs
- Suitable for continuous circuit
- Yes
- Suitable for standby switching
- Yes
- Mounting method
- Surface mounting/recessed mounting
- Function
- Escape route lighting/signage
- Suitable for labelling type
- Sticker
- Type of indicator
- Single-sided
- With pictogram
- Yes
- Monitoring equipment
- Automatic self test
- Wiring system
- Continuous circuit/emergency circuit
- With remote switch connection
- Yes
- With remote control
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- Lithium-ion
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Number of lighting heads
- 1
- Housing material
- Plastic
- Housing colour
- White
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Nominal voltage
- 230 V
- Autonomy
- 3 h
- Type of control gear
- LED operating device current-controlled
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Luminous flux in emergency mode
- 100 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- Degree of protection (IP)
- IP54
- Protection class according to IEC 61140
- II
- Rated ambient temperature according to IEC 62722-2-1
- 0–45 °C
- Max. system power
- 4.5 W
- Rated luminous flux according to IEC 62722-2-1
- 65 lm
- Luminous flux in standby mode
- 65 lm
- Colour temperature
- 4000 K
- Recognition distance
- 23 m
- Nominal operation time
- 3–8 h
- Width
- 70 mm
- Height/depth
- 147 mm
- Length
- 245 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 6
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Emergency function monitoring system
- Automatic self test
- Type of lithium-ion battery
- Lithium iron phosphate (LiFePO4)
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.61
Cross References
- EAN 4015120061806
- SAP 1000335186
- Code 8365932
Product Documentation
Document preview: SLE LEDi SC/C Wallmounting (EN10061806) — Specification sheet
