Esylux

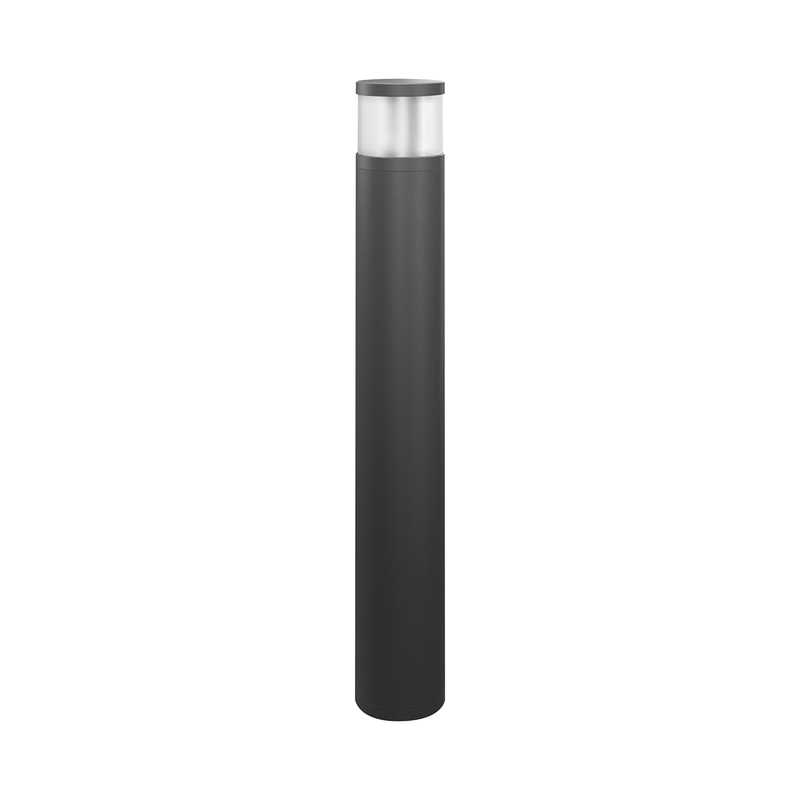

ALVA Post-Top Light 700 OP 840 DALI
Part numberEL10821288EAN / GTIN4015120821288HS code9405.40
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux EL10821288 LED DALI-bollard light of aluminium with high quality ALVA 700 OP 840 DALI.
Technical Specifications
- Manufacturer part number (MPN)
- EL10821288
- EAN / GTIN
- 4015120821288
- Sales unit
- pcs
- Protection class according to IEC 61140
- I
- Lamp holder
- None
- Conductor cross section
- 2.5 mm²
- With base plate
- Yes
- Connection type
- Push-in clamp
- Housing colour
- Grey
- Surface protection
- Powder coating
- Voltage type
- AC/DC
- With movement sensor
- No
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Diameter
- 100 mm
- With light sensor
- No
- Number of poles
- 5
- Height/depth
- 700 mm
- Type of power supply
- Mains power supply
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct
- Light distribution
- Symmetric
- Material cover
- Plastic, opal
- Impact strength
- IK09
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Beam angle
- > 80° - Extreme wide beam
- Max. system power
- 7 W
- Rated luminous flux according to IEC 62722-2-1
- 460 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Type of wiring
- Suitable for loop-through wiring
Standards & Compliance
- HS Code
- 9405.40
Cross References
- EAN 4015120821288
- SAP 1200613420
- Code 83016846
Product Documentation
Document preview: ALVA Post-Top Light 700 OP 840 DALI (EL10821288) — Specification sheet
More from Esylux
Esylux
PD-FLAT 360I/8 round hv KNX
EP10451706
Esylux
PD 360I/8 white (EM10425004)
Esylux
Wall Arm 700 mm, Black
EL10810534
Esylux
AFL SU 30 W 5K (EL10810176)
Esylux

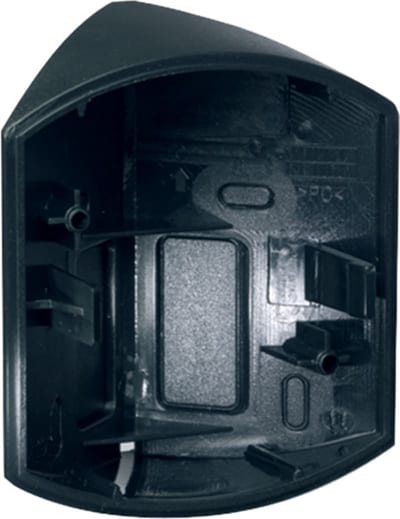

RC Corner Bracket, Black
EM10016134
Esylux

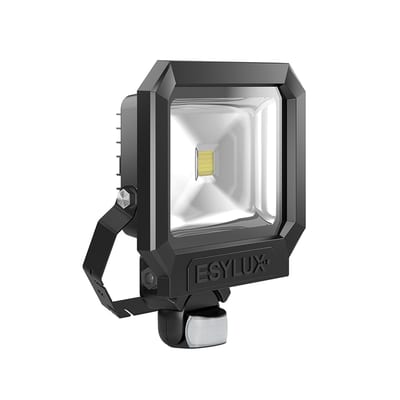

AFL SU 30 W 5K (EL10810183)
Esylux

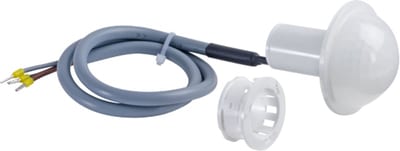

MD-C360I/12 mini opal matt
EP10426018
Esylux

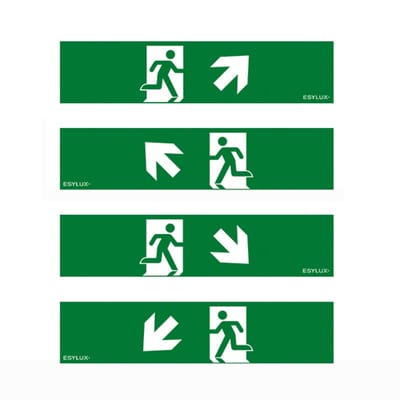

Piktoset SLA 14 SYMBOL SET 2
