Esylux
Emergency lighting SLD EL 3H 32M IR SC/C PM
Part numberEN10031649EAN / GTIN4015120031649HS code9405.61
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

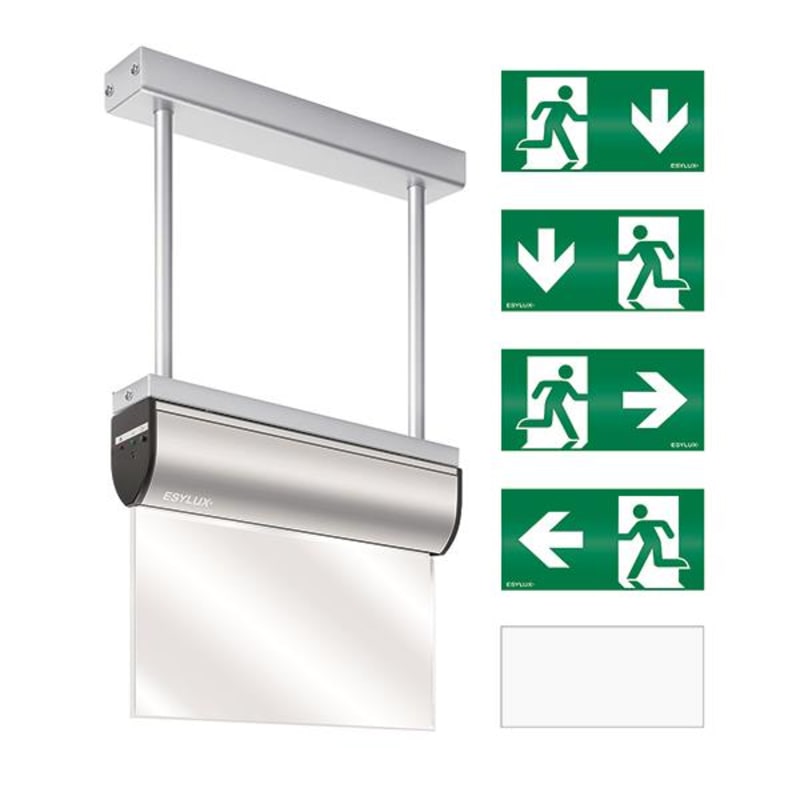

Esylux EN10031649 self-contained (single-battery) emergency luminaire with 3 h duration and 32 m viewing distance, for pendant mounting.
Technical Specifications
- Manufacturer part number (MPN)
- EN10031649
- EAN / GTIN
- 4015120031649
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Suitable for continuous circuit
- Yes
- Suitable for standby switching
- Yes
- Mounting method
- Pendant
- Function
- Escape route lighting/signage
- Suitable for labelling type
- Acrylic plate
- Type of indicator
- Double-sided
- With pictogram
- Yes
- Monitoring equipment
- Automatic self test
- Wiring system
- Continuous circuit/emergency circuit
- With remote switch connection
- Yes
- With remote control
- No
- Power supply system
- Peripheral (individual battery)
- Battery technology
- Lithium-ion
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Suitable for number of light sources
- 1
- Number of lighting heads
- 1
- Housing material
- Aluminium
- Housing colour
- Aluminium
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Constant light output (CLO)
- No
- Degree of protection (IP)
- IP40
- Protection class according to IEC 61140
- I
- Max. system power
- 3 W
- Recognition distance
- 32 m
- Width
- 55 mm
- Height/depth
- 605 mm
- Length
- 360 mm
- Built-in width
- 55 mm
- Built-in height/depth
- 605 mm
- Built-in length
- 360 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 7
- Conductor cross section
- 2.5 mm²
- Connection type
- Plug-in connection
- Emergency power supply system
- Peripheral (individual battery)
- Emergency function monitoring system
- Automatic self test
- Type of lithium-ion battery
- Lithium iron phosphate (LiFePO4)
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.61
Cross References
- EAN 4015120031649
- SAP 1200569041
- Code 82906966
Product Documentation
Document preview: Emergency lighting SLD EL 3H 32M IR SC/C PM (EN10031649) — Specification sheet
