Esylux

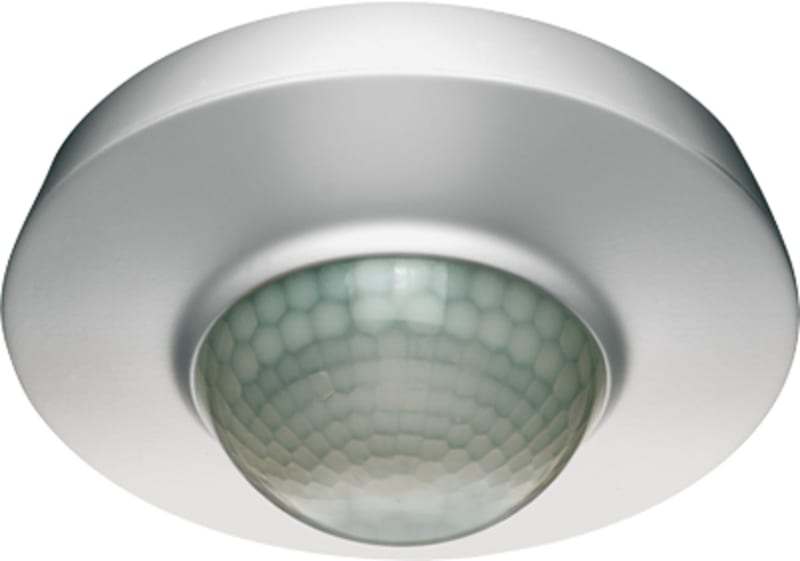

PD 360/24 Slave white
Part numberEM10425127EAN / GTIN4015120425127HS code9031.49
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux EM10425127 Ceiling-mounted presence detectors 360° UP Slave.
Technical Specifications
- Manufacturer part number (MPN)
- EM10425127
- EAN / GTIN
- 4015120425127
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Presence detector
- Halogen free
- Yes
- Height
- 75 mm
- Depth
- 75 mm
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Built-in depth
- 15 mm
- Frequency
- 50 Hz
- With remote control
- No
- Diameter
- 140 mm
- Suitable for wall mounting
- No
- Built-in diameter
- 60 mm
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 4 m
- Max. reach sideways
- 12 m
- Temperature
- 0–50 °C
- Material
- Plastic
- Ambient temperature
- 0–50 °C
- Response value sensitivity adjustable
- No
- Dim function with dimmer basic element
- No
- Suitable for C-load
- No
- Diameter reach on floor
- 24 m
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- No
- Substation input
- No
- RAL-number (similar)
- 9010
- With signal unit
- Yes
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- No
- Scan angle
- 360 °
- With connection cable
- No
- Degree of protection (IP)
- IP20
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Detection angle horizontal
- 180–360 °
- Min. switch-on time
- 0 s
- Response value luminosity adjustable
- No
- Optimum mounting height
- 3 m
- Constant light output (CLO)
- No
- With DALI interface
- No
- Forced switch on
- No
- Min. depth of built-in installation box
- 15 mm
- Max. presence range
- 28.31 m²
- Background monitoring
- No
- With acoustic sensor
- No
- Movement sensor/presence detector technology
- Passive infrared
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- Yes
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9031.49
Cross References
- EAN 4015120425127
- SAP 1000016004
- Code 8132660
Product Documentation
Document preview: PD 360/24 Slave white (EM10425127) — Specification sheet
