Esylux
PD-C 360I/8 FM (EP10426858)
Part numberEP10426858EAN / GTIN4015120426858HS code8536.50
Lighting & Electrical Accessories
Motion Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

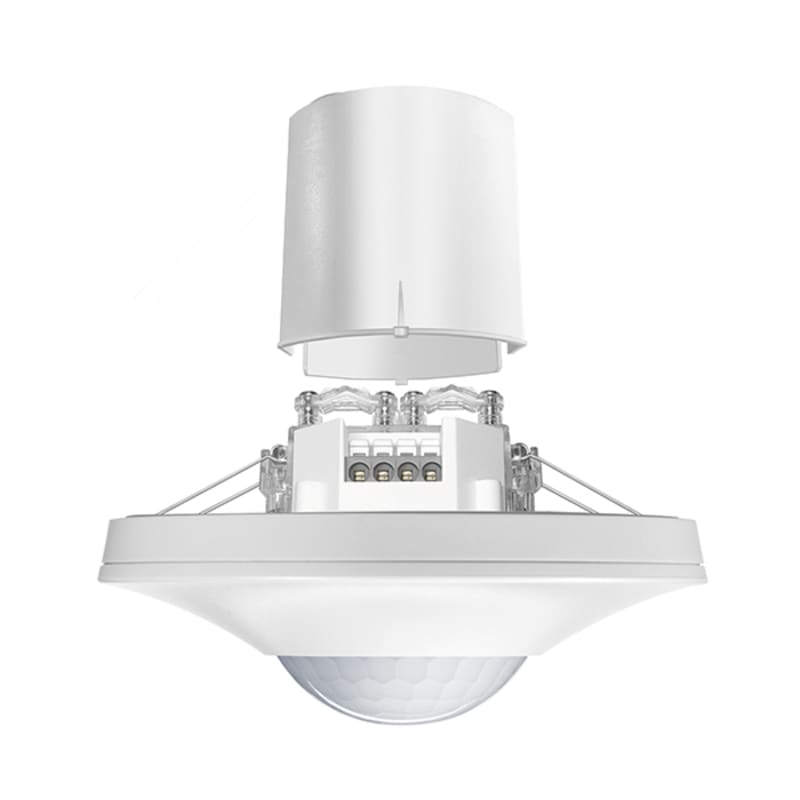

Esylux EP10426858 Presence detector with 360° detection range for ceiling mounting.
Technical Specifications
- Manufacturer part number (MPN)
- EP10426858
- EAN / GTIN
- 4015120426858
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Presence detector
- Halogen free
- Yes
- Height
- 100 mm
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Switching-on delay
- 30 s
- Switch-off delay
- 300 s
- Built-in depth
- 90 mm
- With remote control
- No
- Diameter
- 108 mm
- Suitable for wall mounting
- No
- Built-in diameter
- 68 mm
- Staircase light controller
- No
- Bridging switch
- Yes
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 3 m
- Max. reach sideways
- 4 m
- Max. switching power
- 2300 W
- Max. starting current
- 800 A
- Material
- Plastic
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Suitable for C-load
- Yes
- Diameter reach on floor
- 8 m
- Remote operation
- Yes
- HVAC-control
- No
- Constant light control
- No
- RAL-number (similar)
- 9010
- With signal unit
- Yes
- Teach-function for response value luminosity
- Yes
- Networkable
- No
- Forced switch off
- Yes
- Scan angle
- 360 °
- With connection cable
- No
- Degree of protection (IP)
- IP20
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Min. switch-on time
- 60 s
- Max. duty cycle
- 30 min
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 3 m
- Number of switching zones
- 1
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- Yes
- Min. depth of built-in installation box
- 90 mm
- Max. presence range
- 12.58 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Max. switching power LED
- 600 W
- Compatible with Casambi
- No
- Background monitoring
- No
- With acoustic sensor
- No
- Movement sensor/presence detector technology
- Passive infrared
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- Yes
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015120426858
- SAP 1200647105
- Code 83066324
Product Documentation
Document preview: PD-C 360I/8 FM (EP10426858) — Specification sheet
