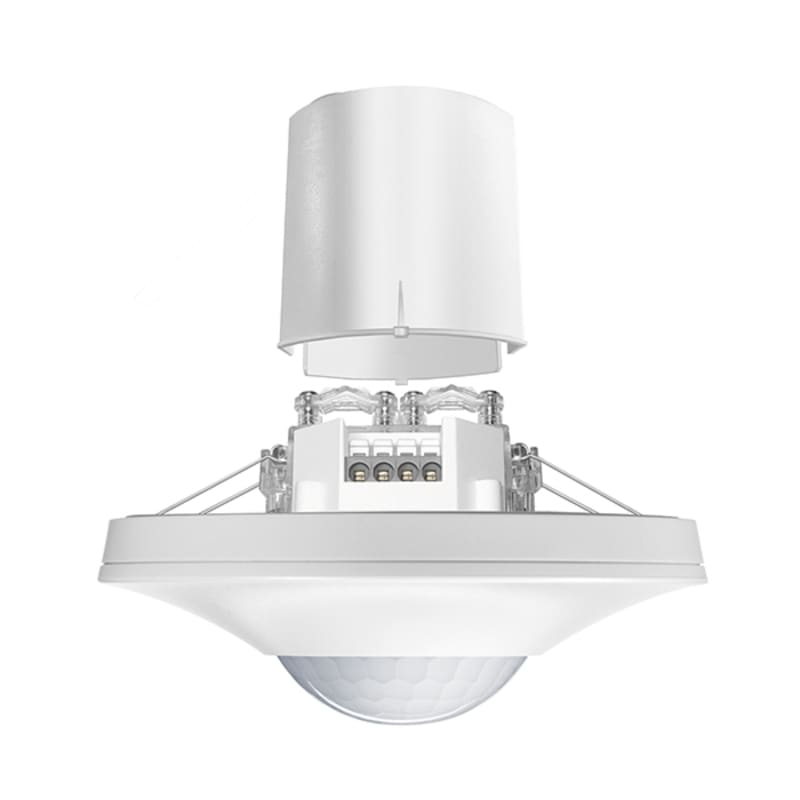

Esylux EP10426971 PD-C 360/8 Slave Flush-Mount Presence Detector
Pricing
Request a quote
We reply within 24 hours
Product Description
Esylux PD-C 360/8 Slave FM is a flush-mount slave presence detector that extends the detection area of a compatible PD-C master. The 360° scan angle gives a diameter reach of 8 m on the floor from a 3 m mounting height, with a maximum frontal reach of 3 m. White thermoplastic housing rated IP20 for 230 V AC operation.
Technical Specifications
- Manufacturer part number (MPN)
- EP10426971
- EAN / GTIN
- 4015120426971
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Colour
- White
- Model
- Presence detector
- Halogen free
- Yes
- Height
- 100 mm
- Connection type
- Push-in clamp
- Surface protection
- Untreated
- Creep-under protection
- No
- Voltage type
- AC
- Built-in depth
- 90 mm
- With remote control
- No
- Diameter
- 108 mm
- Suitable for wall mounting
- No
- Built-in diameter
- 68 mm
- Staircase light controller
- No
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 3 m
- Max. reach sideways
- 4 m
- Material
- Plastic
- Response value sensitivity adjustable
- No
- Dim function with dimmer basic element
- No
- Suitable for C-load
- No
- Diameter reach on floor
- 8 m
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- No
- RAL-number (similar)
- 9010
- With signal unit
- Yes
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- No
- Scan angle
- 360 °
- With connection cable
- No
- Degree of protection (IP)
- IP20
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Matt
- Response value luminosity adjustable
- No
- Optimum mounting height
- 3 m
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- No
- Min. depth of built-in installation box
- 90 mm
- Max. presence range
- 12.58 m²
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Compatible with Casambi
- No
- Background monitoring
- No
- With acoustic sensor
- No
- Movement sensor/presence detector technology
- Passive infrared
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- Yes
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9031.49
Cross References
- EAN 4015120426971
- SAP 1200647792
- Code 83065939
Product Documentation
More from Esylux
Esylux
AFL SU 10W 3K (EL10810039)
Esylux
ALVA Bollard 180° 940 16W 3K Anthracite
EL10820601
Esylux
Esylux EL10521836 ALVA 700 DALI Driver Set with Terminal Block
Esylux
MD Corner Bracket, White
EM10025518
Esylux
ALVA 940 MD Lens Mask
EL00007040
Esylux
ALVA BL OF 940 16W 3K MIL DALI A
EL10820960
Esylux
ALVA BL OF 940 16W 4K CLE DALI
EL10820786
Esylux
ALVA BL OF 940 16W 3K MIL On/Off
EL10820649
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EP10426971?
- EP10426971 can be ordered from cballast.com as a Esylux catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Esylux product?
- The manufacturer part number is EP10426971.
- What is the HS code for EP10426971?
- The customs tariff (HS) code for EP10426971 is 9031.49.
- Who manufactures EP10426971?
- EP10426971 is a Esylux product in the Lighting & Electrical Accessories range.
- Is a datasheet available for EP10426971?
- Yes — the EP10426971 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EP10426971?
- The minimum order quantity is 1.
- Is EP10426971 available?
- Yes — EP10426971 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
