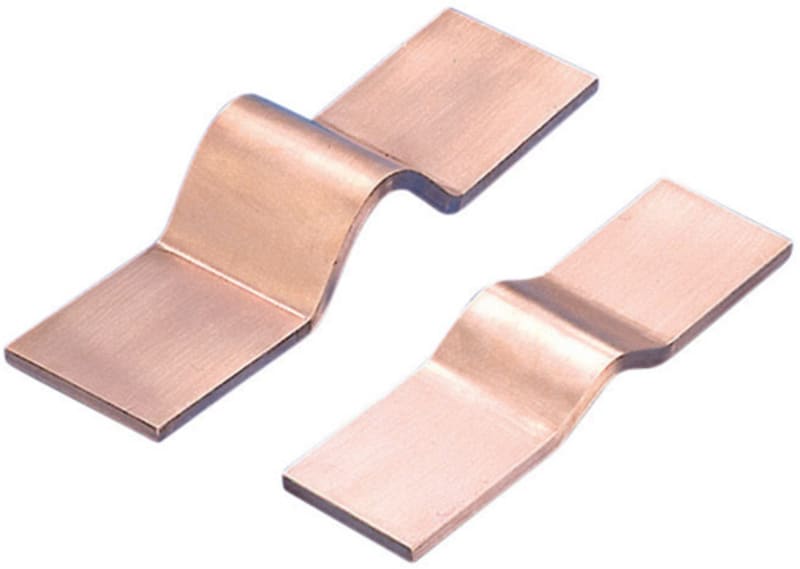

nVent ERIFLEX 566040 PPS Presswelded Power Shunt, 1,578.82 kcmil, 12.6"
Pricing
Request a quote
We reply within 24 hours
Product Description
Thin press welded laminations are welded to each other through direct current applied under pressure, resulting in PPS power shunt. Welding forms a solid palm with the properties of a plain bar.
Technical Specifications
- Manufacturer part number (MPN)
- 566040
- EAN / GTIN
- 3479775660400
- Sales unit
- pcs
- Material
- Copper
- Finish
- Plain
- Lamination Thickness
- 0.01" / 0.3mm
- Cross Section
- 1578.82kcmil / 800mm²
- ∆T 30 K
- 1511A
- ∆T 50 K
- 2002A
- Length (L)
- 12.6" / 320mm
- Height (H)
- 2.05" / 52 mm
- A
- 3.94" / 100 mm
- B
- 3.15" / 80 mm
- C
- 0.39" / 10 mm
- Unit Weight
- 5.79 lb / 2.62 kg
- 2 Bar Current Coefficient
- 1.65
- UPC
- 782856878421
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Width
- 100 mm
- Flexible
- No
- Surface protection
- Tinned
- Country of origin
- France
Standards & Compliance
- HS Code
- 7413.00
Cross References
- EAN 3479775660400
- SAP 1200008229
- Code 8533017
Product Documentation
