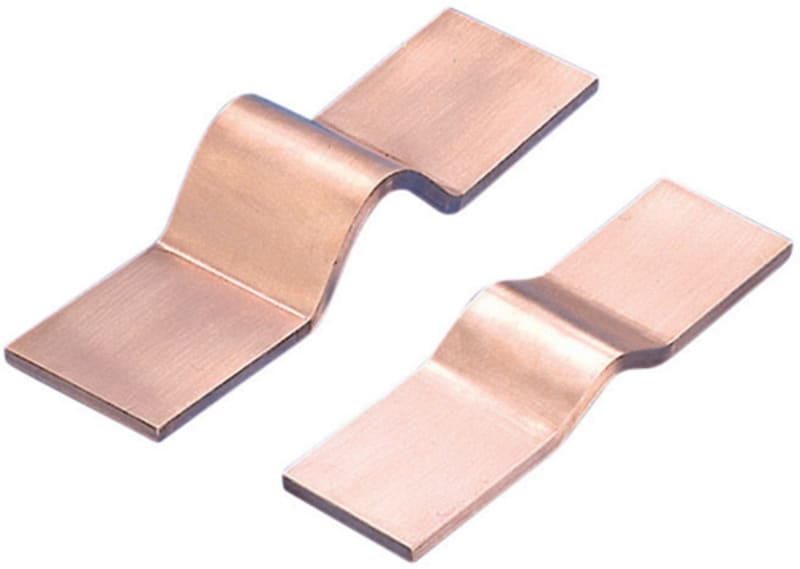

nVent ERIFLEX 566030 PPS Presswelded Power Shunt, 986.76 kcmil, 11"
Pricing
Request a quote
We reply within 24 hours
Product Description
Thin press welded laminations are welded to each other through direct current applied under pressure, resulting in PPS power shunt. Welding forms a solid palm with the properties of a plain bar.
Technical Specifications
- Manufacturer part number (MPN)
- 566030
- EAN / GTIN
- 3479775660301
- Sales unit
- pcs
- Material
- Copper
- Finish
- Plain
- Lamination Thickness
- 0.01" / 0.3mm
- Cross Section
- 986.76kcmil / 500mm²
- ∆T 30 K
- 1022A
- ∆T 50 K
- 1354A
- Length (L)
- 11" / 280mm
- Height (H)
- 2.28" / 58 mm
- A
- 3.15" / 80 mm
- B
- 1.97" / 50 mm
- C
- 0.39" / 10 mm
- Unit Weight
- 3.17 lb / 1.44 kg
- 2 Bar Current Coefficient
- 1.72
- UPC
- 782856878414
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Width
- 80 mm
- Flexible
- No
- Surface protection
- Tinned
- Country of origin
- France
Standards & Compliance
- HS Code
- 7413.00
Cross References
- EAN 3479775660301
- SAP 1200008228
- Code 8533003
Product Documentation
