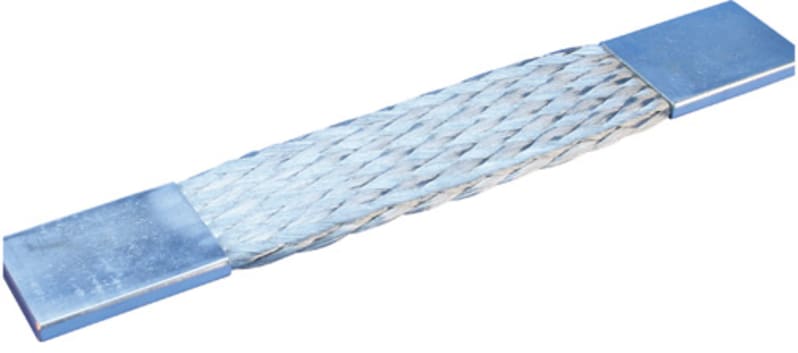

nVent ERIFLEX 564250 Flat Braided Power Shunt, 394.7 kcmil, 19.7"
Pricing
Request a quote
We reply within 24 hours
Product Description
PBC Flat Braided Power Conductor.
Technical Specifications
- Manufacturer part number (MPN)
- 564250
- EAN / GTIN
- 3479775642505
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Material
- Copper
- Finish
- Tinned
- Wire Diameter
- 0.01" / 0.15mm
- Cross Section
- 394.7kcmil / 200mm²
- ∆T 30 K
- 550A
- ∆T 50 K
- 729A
- Length (L)
- 19.7" / 500mm
- A
- 2.17" / 55 mm
- B
- 1.97" / 50 mm
- C
- 0.35" / 9 mm
- 2 Bar Current Coefficient
- 1.72
- Unit Weight
- 2.65 lb / 1.2 kg
- UPC
- 782856878193
- Standard Packaging Quantity
- 2
- Packing Quantity
- 1
- Conductor material
- Copper
- Conductor surface
- Tinned
- Nominal cross section conductor
- 200 mm²
- Conductor category
- Class 5 = flexible
- Shape of conductor
- Flat
- Braided
- Yes
- Outer diameter approximate
- 50 mm
- Cable width approximate
- 50 mm
- Cable height approximate
- 9 mm
- Insulated
- No
- With connecting lugs
- Yes
- Connection lugs drilled
- No
- With cable lugs
- Yes
- Country of origin
- France
Standards & Compliance
- HS Code
- 7413.00
Cross References
- EAN 3479775642505
- SAP 1200008232
- Code 8533025
Product Documentation
More from Eriflex
Eriflex
nVent ERIFLEX BD100125A Two Pole Distribution Block, 100/125 A, 1 Line Side & 6 Load Side Connections
Eriflex
nVent ERIFLEX PCB3054M Plain Copper Busbar, 1.18" x 0.2" x 157.48"
Eriflex
Copperrail PCB 40X10X2000
PCB-2M-40X10
Eriflex
nVent ERIFLEX FRCB15100 Flat Braid in Coil, Bare Copper, 197.35 kcmil, 82'
Eriflex
nVent ERIFLEX TCBS15X5-2M Threaded Busbar with Fixing Slot, 0.59" x 0.2" x 78.15"
Eriflex
nVent ERIFLEX 554367 Grounding and Bonding Braid, Stainless Steel, 138.15 kcmil, 9.843"
Eriflex
nVent ERIFLEX 564100 Flat Braided Power Shunt, 300 kcmil, 9.84"
Eriflex
Insulated Copper braid F50-165
558612MTO
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 564250?
- 564250 can be ordered from cballast.com as a Eriflex catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eriflex product?
- The manufacturer part number is 564250.
- What is the HS code for 564250?
- The customs tariff (HS) code for 564250 is 7413.00.
- Who manufactures 564250?
- 564250 is a Eriflex product in the Electrical Components range.
- Is a datasheet available for 564250?
- Yes — the 564250 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 564250?
- The minimum order quantity is 1.
- Is 564250 available?
- Yes — 564250 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
