Eriflex

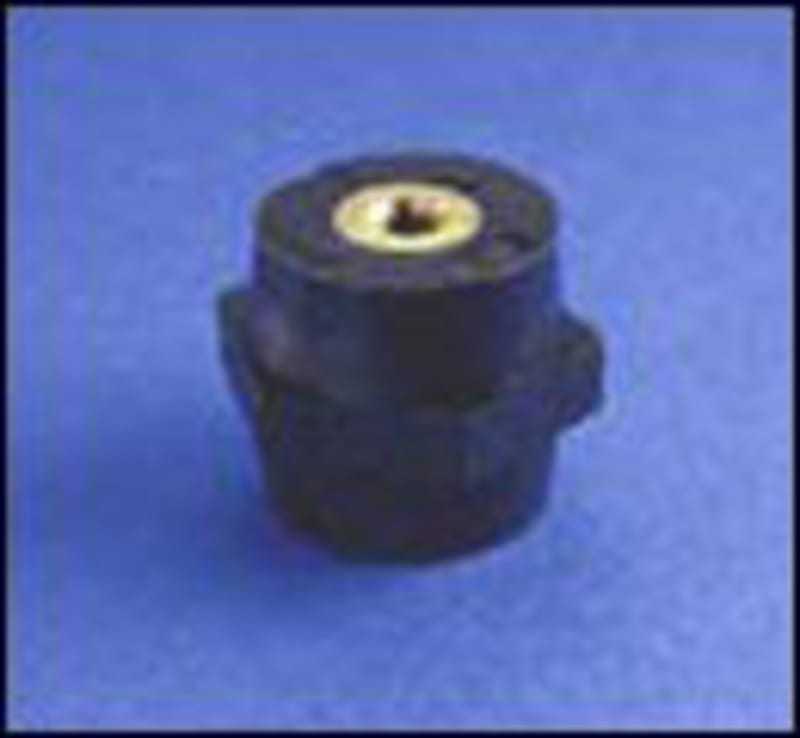

nVent ERIFLEX ISOTP45M6 Low Voltage Insulators, Metric Thread, 1.772", 41 mm Hex Width, M6 Thread
Part numberISOTP45M6EAN / GTIN3479775485300HS code8546.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Low voltage electrical insulator.
Technical Specifications
- Manufacturer part number (MPN)
- ISOTP45M6
- EAN / GTIN
- 3479775485300
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Article Number
- 548530
- Material
- Steel;Glass Fibre Reinforced Polyamide
- Finish
- Electrogalvanized
- Working Temperature
- -40 to 266 °F / -40 to 130 °C
- Flammability Rating
- UL® 94V-0
- Complies With
- IEC® 60695-2-11 (Glow Wire Test 960 °C)
- Dielectric Strength, IEC 61439.1
- 3500 VAC @ 1 min
- Dielectric Strength, UL
- 1500
- Insulation Voltage
- 1000;1500
- Height (H)
- 1.77" / 45 mm
- Hex Width (W)
- 41 mm
- Depth (D)
- 1.85" / 47mm
- Thread Size (TS)
- M6
- Thread Depth (TD)
- 0.35" / 9mm
- Diameter (Ø)
- 1.34" / 34 mm
- Static Load 1 (F1)
- 2473lb / 1100daN
- Static Load 2 (F2)
- 1461lb / 650daN
- Unit Weight
- 0.23 lb / 0.1 kg
- UPC
- 782856875505
- Standard Packaging Quantity
- 25
- Packing Quantity
- 1
- Outer diameter
- 34 mm
- Length
- 45 mm
- Bolt dimension (metric)
- 6
- Country of origin
- France
Standards & Compliance
- HS Code
- 8546.90
Cross References
- EAN 3479775485300
- SAP 1000264449
- Code 81293442
Product Documentation
Document preview: nVent ERIFLEX ISOTP45M6 Low Voltage Insulators, Metric Thread, 1.772", 41 mm Hex Width, M6 Thread — Specification sheet
