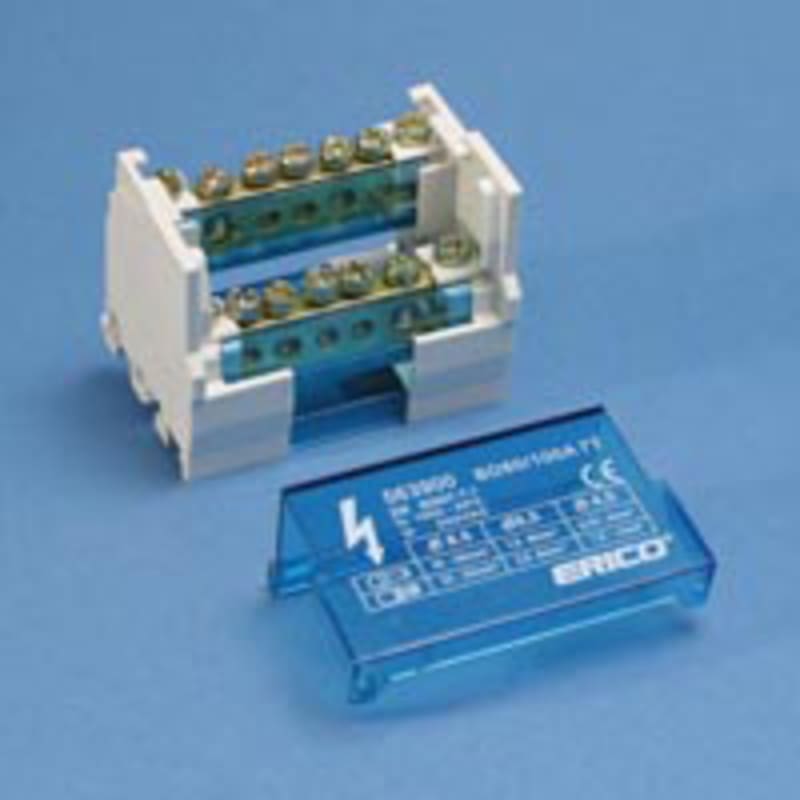

nVent ERIFLEX BD80100A Two Pole Distribution Block, 80/100 A, 1 Line Side & 6 Load Side Connections
Pricing
Request a quote
We reply within 24 hours
Product Description
Compact 2-Pole connecting device with an ergonomic design for maximum power in minimum space.
Technical Specifications
- Manufacturer part number (MPN)
- BD80100A EAN / GTIN: 3479775639000 Sales unit: pcs Poles: 2P Article Number: 563900 Max Current Rating, IEC: 100A Short Term Withstand Current (Icw) 1s: 4.5kA Peak Short Circuit Current (Ipk): 20kA Max Working Voltage, IEC (Ui): 500V Line Side Number of Connections: 1 Line Side Compact Stranded Wire Size: 10 - 25 mm² Line Side Stranded Wire Size - Ferrule: 10 - 25 mm² Load Side Number of Connections: 6 Load Side Compact Stranded Wire Size: (3) 1,5 - 4 mm²;(3) 2,5 - 6 mm² Load Side Stranded Wire Size - Ferrule: (3) 0,75 – 4 mm²;(3) 1,5 – 6 mm² Depth (D): 1.97" / 50mm Height (H): 1.97" / 50 mm Width (W): 2.52" / 64 mm Unit Weight: 0.24 lb / 0.11 kg Flammability Rating: UL® 94V-0 Complies With: IEC® 60947-7-1 UPC: 782856855750 Standard Packaging Quantity: 1 Packing Quantity: 1 Number of poles: 2 Conductor cross section solid (solid, stranded): 1.5–6 mm² Max. rated current: 100 A With N-rail: No With PE-rail: No Country of origin: China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3479775639000
- SAP 1000264410
- Code 8227697
Product Documentation
