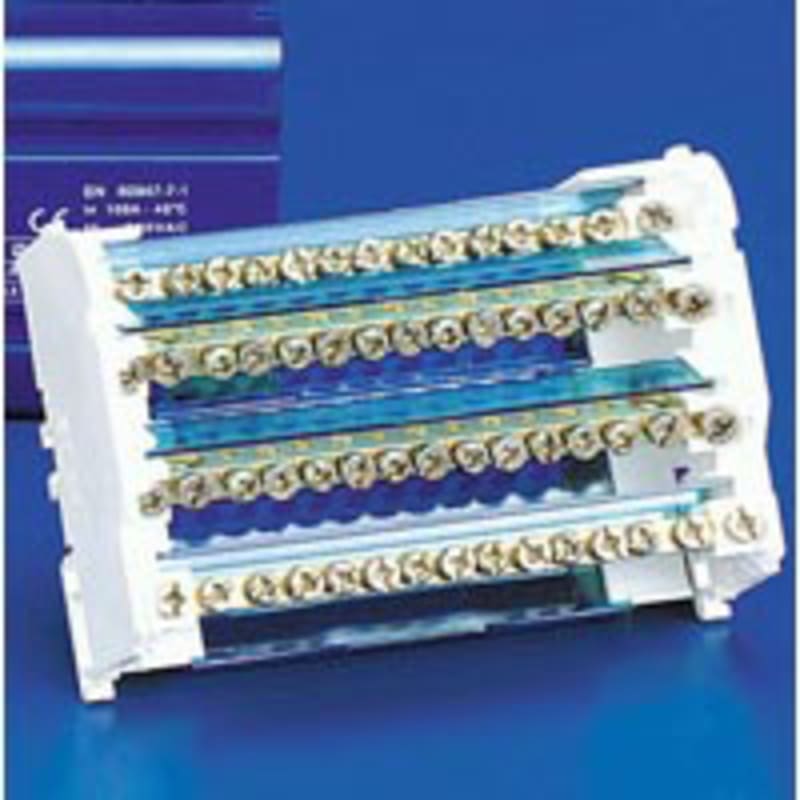

nVent ERIFLEX TD40A Four Pole Distribution Block, 40 A, 2 Line Side & 11 Load Side Connections
Pricing
Request a quote
We reply within 24 hours
Product Description
Compact 4-Pole connecting device with an ergonomic design for maximum power in minimum space.
Technical Specifications
- Manufacturer part number (MPN)
- TD40A EAN / GTIN: 3479775637402 Sales unit: pcs Article Number: 563740 material: Thermoplastic;Brass Max Current Rating, IEC: 40A Short Term Withstand Current (Icw) 1s: 4.5kA Peak Short Circuit Current (Ipk): 22kA Max Working Voltage, IEC (Ui): 500 Line Side Number of Connections: 2 Line Side Compact Stranded Wire Size: 6 - 16 mm² Line Side Stranded Wire Size - Ferrule: 4 - 10 mm² Load Side Number of Connections: 11 Load Side Compact Stranded Wire Size: (11) 1,5 - 4 mm² Load Side Stranded Wire Size - Ferrule: (11) 0,75 – 4 mm² Depth (D): 1.97" / 50mm Height (H): 3.54" / 90 mm Width (W): 3.94" / 100 mm Unit Weight: 0.73 lb / 0.33 kg Flammability Rating: UL® 94V-0 Complies With: IEC® 60947-7-1 UPC: 782856878100 Standard Packaging Quantity: 1 Packing Quantity: 1 Number of poles: 4 Conductor cross section solid (solid, stranded): 1.5–4 mm² Max. rated current: 40 A With N-rail: No With PE-rail: No Country of origin: China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3479775637402
- SAP 1000264401
- Code 81148104
Product Documentation
More from Eriflex
Eriflex
Cover BOLT, CAPB M6 (560850)
Eriflex
nVent ERIFLEX 503700 Round Braid in Long Coil, Tinned Copper, 19.74 kcmil, 328'
Eriflex
nVent ERIFLEX TR250A Four Pole Distrib. Block with Threaded Bars, 250 A
Eriflex
Insulated.Copper braid FR240-630SCS (2800187 (758544))
Eriflex
Insulated Copper braid F185-530
558537
Eriflex
nVent ERIFLEX 554368 Grounding and Bonding Braid, Stainless Steel, 138.15 kcmil, 11.811"
Eriflex
Insulated Copper braid F185-630
558538
Eriflex
Insulated Copper braid F100-330
558522MTO
