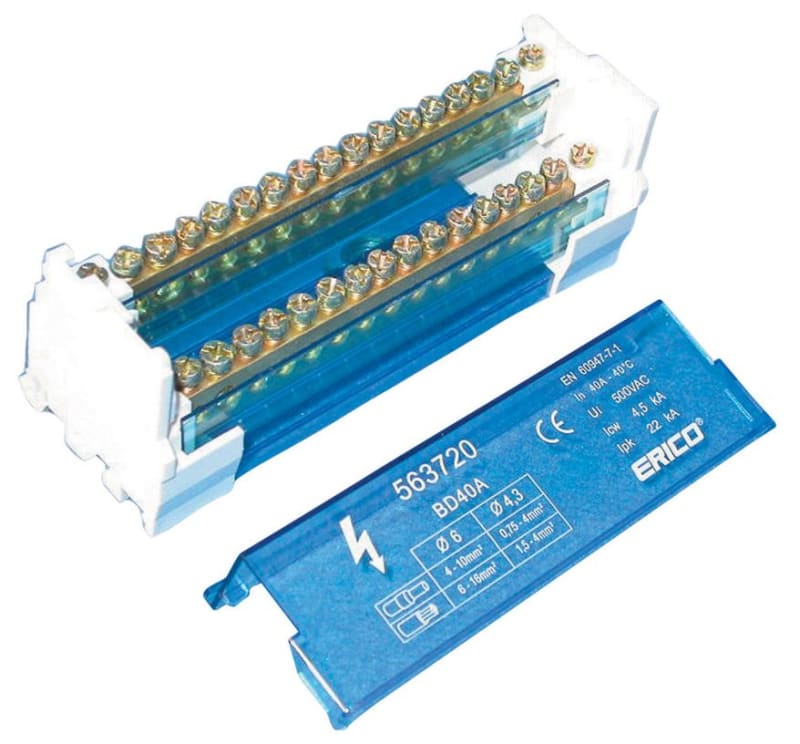

nVent ERIFLEX BD40A Two Pole Distribution Block, 40 A, 2 Line Side & 15 Load Side Connections
Pricing
Request a quote
We reply within 24 hours
Product Description
Compact 2-Pole connecting device with an ergonomic design for maximum power in minimum space.
Technical Specifications
- Manufacturer part number (MPN)
- BD40A EAN / GTIN: 3479775637204 Sales unit: pcs Article Number: 563720 Max Current Rating, IEC: 40A Short Term Withstand Current (Icw) 1s: 4.5kA Peak Short Circuit Current (Ipk): 22kA Max Working Voltage, IEC (Ui): 500 Line Side Number of Connections: 2 Line Side Compact Stranded Wire Size: 6 - 16 mm² Line Side Stranded Wire Size - Ferrule: 4 - 10 mm² Load Side Number of Connections: 15 Load Side Compact Stranded Wire Size: (15) 1,5 - 4 mm² Load Side Stranded Wire Size - Ferrule: (15) 0,75 – 4 mm² Depth (D): 1.97" / 50mm Height (H): 1.97" / 50 mm Width (W): 5.12" / 130 mm Unit Weight: 0.49 lb / 0.22 kg Flammability Rating: UL® 94V-0 Complies With: IEC® 60947-7-1 UPC: 782856878094 Standard Packaging Quantity: 1 Packing Quantity: 1 Number of poles: 2 Max. rated current: 40 A With N-rail: No With PE-rail: No Country of origin: China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3479775637204
- SAP 1000264501
- Code 81293456
