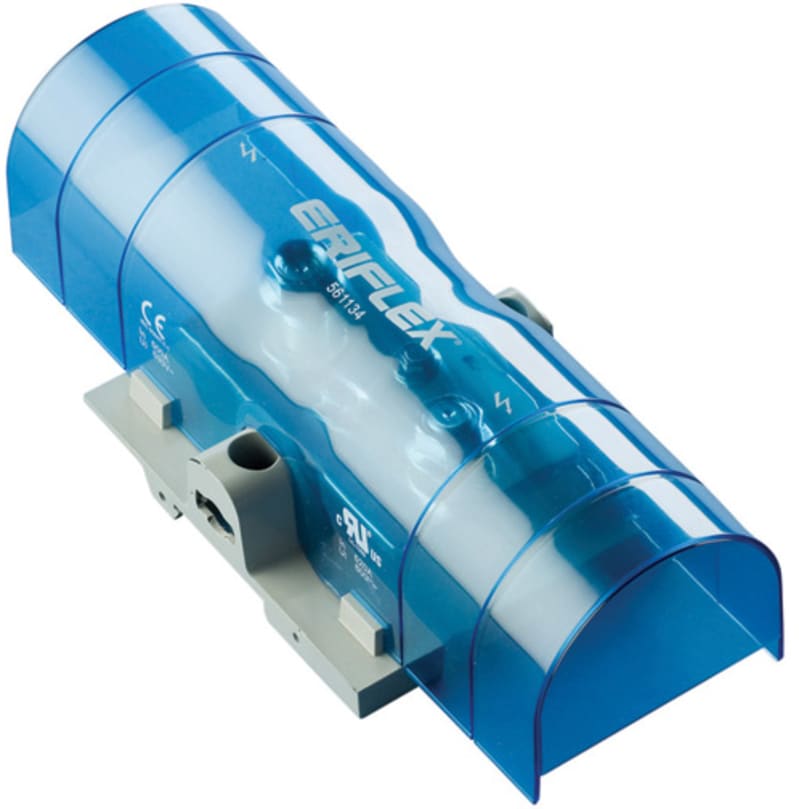

nVent ERIFLEX 561134 Power Terminal, Lug-to-Lug, 500 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Power Terminals are connecting devices for power connections between primary and secondary switchboards, or for machine or industrial equipment.
Technical Specifications
- Manufacturer part number (MPN)
- 561134
- EAN / GTIN
- 8711893054019
- Sales unit
- pcs
- Material
- Copper;Thermoplastic
- Finish
- Tinned
- Max Current Rating, IEC
- 750A
- Max Current Rating, UL/CSA
- 475A
- Short Term Withstand Current (Icw) 1s
- 36kA
- Peak Short Circuit Current (Ipk)
- 51kA
- Short Circuit Current Rating (SCCR)
- 100kA
- Max Working Voltage, IEC (Ui)
- 1000;1500
- Max Working Voltage, UL (Vin)
- 1000
- Number of Stud Connections
- 2
- Stud Connection Conductor Width
- 20 – 40 mm
- Stud Connection Compact Stranded Wire Size
- 16 – 400 mm²
- Stud Connection Wire Size
- #6 - 700 kcmil
- Depth (D)
- 2.56" / 65mm
- Height (H)
- 8.1" / 205.7 mm
- Width (W)
- 3.35" / 85.1 mm
- A
- 4 1/4" / 108 mm
- Unit Weight
- 0.75 lb / 0.34 kg
- Certification Details
- UL® 1059
- Flammability Rating
- UL® 94V-1
- Complies With
- IEC® 60947-7-1
- UPC
- 782856630951
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Number of poles
- 1
- Conductor cross section solid (solid, stranded)
- 16–400 mm²
- Max. rated current
- 750 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8711893054019
- SAP 1000767175
- Code 8560172
Product Documentation
