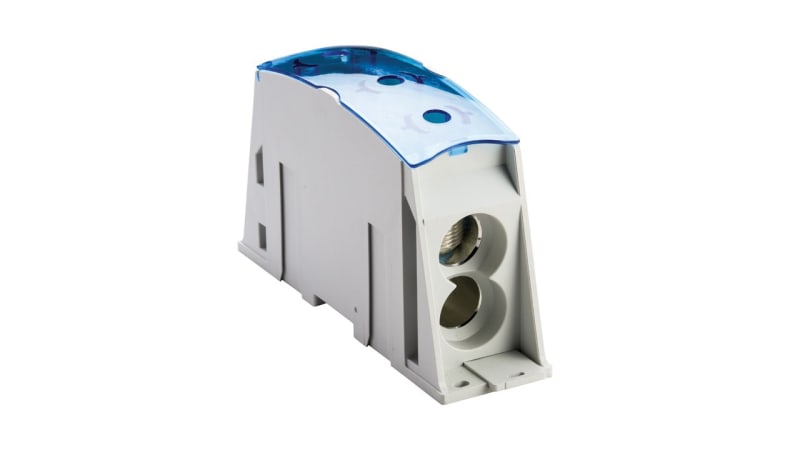

nVent ERIFLEX SB2C1000AL Splice Block, CABLE-2 Cables, 545 A UL, Aluminum
Pricing
Request a quote
We reply within 24 hours
Product Description
Primary output/input device for power connection between primary and secondary switchboard, or for machine or industrial equipment.
Technical Specifications
- Manufacturer part number (MPN)
- SB2C1000AL
- EAN / GTIN
- 0782856940074
- Sales unit
- pcs
- Rated current
- 1000 A
- Article Number
- 561174
- Finish
- Tinned
- Type
- Cable-2 Cables
- Typical Application Current Rating, IEC
- 1000 A
- Typical Application Current Rating, UL
- 545 A
- Material
- Aluminum;Thermoplastic
- Line Side Max Conductor Size, IEC
- 500 mm²
- Line Side Max Conductor Size, UL
- 1,000 kcmil
- Load Side Max Conductor Size, IEC
- (2) 300 mm²
- Load Side Max Conductor Size, UL
- (2) 600 kcmil
- Short Term Withstand Current (Icw) 1s
- 72kA
- Max Current Rating, IEC
- 1020A
- Max Current Rating, UL/CSA
- 545A
- Peak Short Circuit Current (Ipk)
- 75kA
- Rated Conditional Short-Circuit Current (Icc)
- 35.7kA
- Short Circuit Current Rating (SCCR)
- 100kA
- Max Working Voltage, IEC (Ui)
- 1000;1500
- Max Working Voltage, UL (Vin)
- 1000
- Line Side Number of Connections
- 1
- Line Side Compact Stranded Wire Size
- 240 - 500 mm²;400 - 1,000 kcmil
- Line Side DLO Wire Size
- #2 - 373 kcmil
- Load Side Compact Stranded Wire Size
- (2) 35 - 300 mm²
- Load Side DLO Wire Size
- #2 - 535 kcmil
- Load Side Number of Connections
- 2
- Load Side Stranded Wire Size - Ferrule
- (2) 35 - 300 mm²
- Load Side Wire Size
- (2) #2 - 600 kcmil
- Depth (D)
- 4.28" / 109mm
- Height (H)
- 7 1/2" / 191 mm
- Width (W)
- 2.1" / 54 mm
- Unit Weight
- 1.65 lb / 0.75 kg
- Certification Details
- UL® 1953
- Complies With
- IEC® 60947-7-1
- Enclosure Rating
- IP 20
- Flammability Rating
- UL® 94V-0
- UPC
- 782856940074
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Number of poles
- 1
- Number of clamp positions per pole
- 1
- Max. rated current
- 1000 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 0782856940074
- SAP 1200413712
- Code 82456550
Product Documentation
