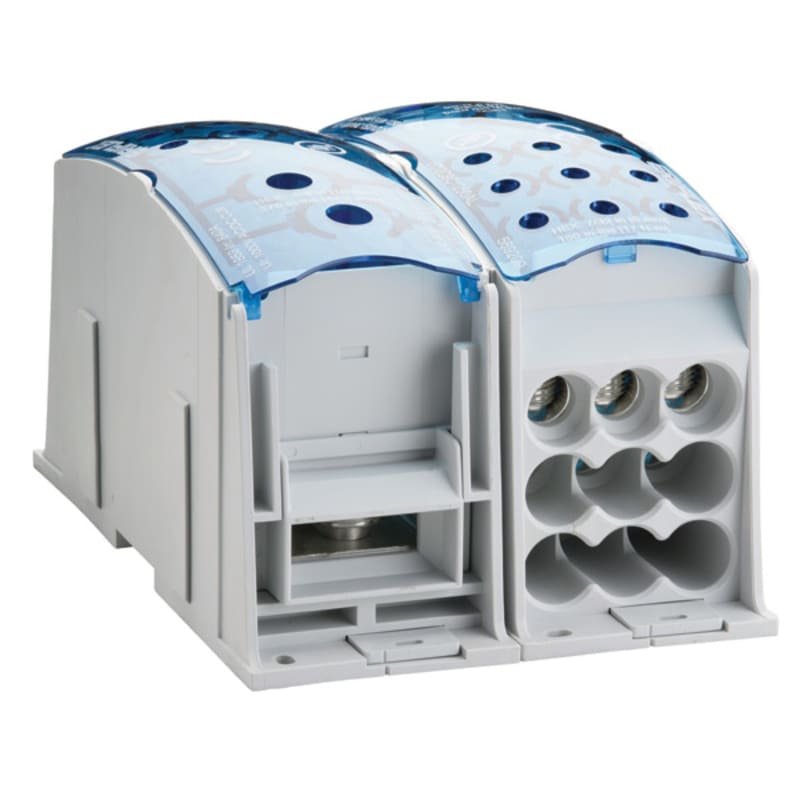

nVent ERIFLEX UDF9C1000AL Single Pole Dist. Block, 840 A UL/CSA, Flat Cond. Line, 9 Cables Load, Aluminum
Pricing
Request a quote
We reply within 24 hours
Product Description
Primary device for easy assembly between a wide range of conductors to perform electrical power distribution.
Technical Specifications
- Manufacturer part number (MPN)
- UDF9C1000AL
- EAN / GTIN
- 0782856975342
- Sales unit
- pcs
- Rated current
- 1000 A
- Article Number
- 569210
- Finish
- Tinned
- Max Current Rating, IEC
- 1000A
- Max Current Rating, UL/CSA
- 840A
- Line Side Connection
- Flat Conductor
- Load Side Connection
- 9 Cables
- Material
- Aluminum;Thermoplastic
- Line Side Max Conductor Size, IEC
- 240 mm²
- Line Side Max Conductor Size, UL
- 240 mm²
- Load Side Max Conductor Size, IEC
- 95 mm²
- Load Side Max Conductor Size, UL
- 3/0 AWG
- Max Working Voltage, IEC (Ui)
- 1000;1500
- Max Working Voltage, UL (Vin)
- 1000
- Short Term Withstand Current (Icw) 1s
- 71.5kA
- Peak Short Circuit Current (Ipk)
- 73.5kA
- Rated Conditional Short-Circuit Current (Icc)
- 35kA
- Short Circuit Current Rating (SCCR)
- 100kA
- Line Side Number of Connections
- 1
- Line Side Insulated Power Braid Cross Section
- 120mm²;185mm²;240mm²
- Line Side nVent ERIFLEX Flexibar Size
- 6x24x1 - 10x50x1
- Load Side Number of Connections
- 9
- Load Side Compact Stranded Wire Size
- 10 - 95 mm²
- Load Side Stranded Wire Size - Ferrule
- #8 - #1
- Load Side Wire Size
- #8 - 3/0
- Enclosure Rating
- IP 20
- Depth (D)
- 7.7" / 195.6mm
- Height (H)
- 4.41" / 112.1 mm
- Width (W)
- 2.78" / 70.5 mm
- Unit Weight
- 2.05 lb / 0.93 kg
- Certification Details
- UL® 1953
- Flammability Rating
- UL® 94V-0
- Complies With
- IEC® 60947-7-1
- UPC
- 782856975342
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Core cross section
- 240 mm²
- With seal head
- No
- Number of poles
- 1
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 0782856975342
- SAP 1200413725
- Code 82456393
