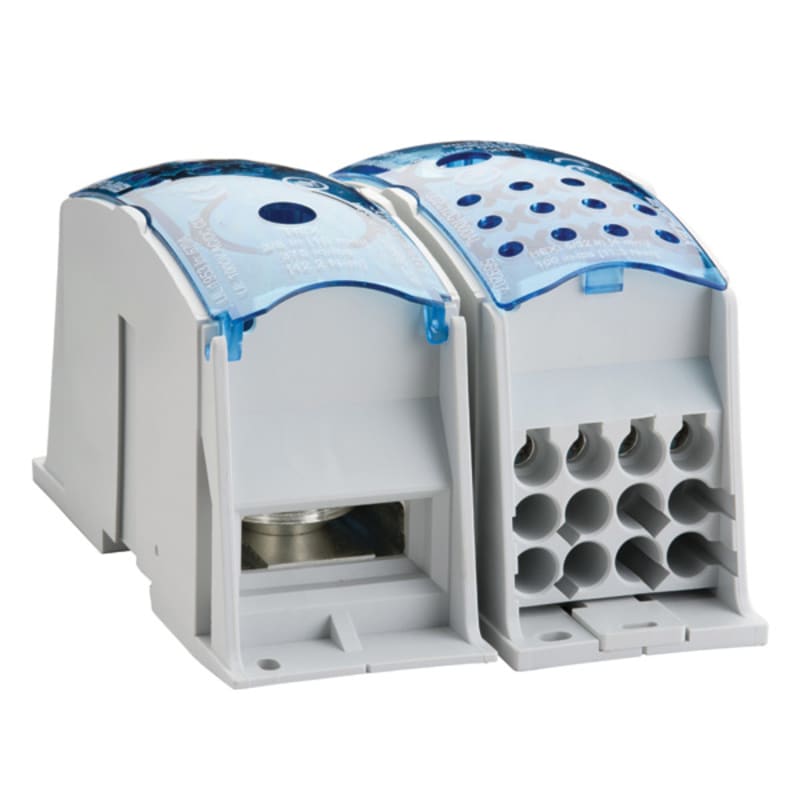

nVent ERIFLEX UDF12C800AL Single Pole Distribution Block, 800 A IEC / 670 A UL-CSA, Flat Cond. Line, 12 Cables Load, Aluminum
Pricing
Request a quote
We reply within 24 hours
Product Description
Eriflex UDF12C800AL In: Flat 240mm2 Out: 12x2.5-16 mm2.
Technical Specifications
- Manufacturer part number (MPN)
- UDF12C800AL
- EAN / GTIN
- 0782856975427
- Sales unit
- pcs
- Rated current
- 800 A
- Article Number
- 569208
- Finish
- Tinned
- Max Current Rating, IEC
- 800 A
- Max Current Rating, UL/CSA
- 670 A
- Line Side Connection
- Flat Conductor
- Load Side Connection
- 12 Cables
- Material
- Aluminum; Thermoplastic
- Line Side Max Conductor Size, IEC
- 240 mm²
- Line Side Max Conductor Size, UL
- 240 mm²
- Load Side Max Conductor Size, IEC
- 25 mm²
- Load Side Max Conductor Size, UL
- #4
- Max Working Voltage, IEC (Ui)
- 1000; 1500
- Max Working Voltage, UL (Vin)
- 1000
- Short Term Withstand Current (Icw) 1s
- 42.9 kA
- Peak Short Circuit Current (Ipk)
- 73.5 kA
- Rated Conditional Short-Circuit Current (Icc)
- 35 kA
- Short Circuit Current Rating (SCCR)
- 100 kA
- Line Side Number of Connections
- 1
- Line Side Insulated Power Braid Cross Section
- 50 mm²; 70 mm²; 100 mm²; 120 mm²; 185 mm²; 240 mm²
- Line Side nVent ERIFLEX Flexibar Size
- 2x20x1 - 10x32x1
- Load Side Number of Connections
- 12
- Load Side Compact Stranded Wire Size
- 4 - 25 mm²
- Load Side Stranded Wire Size - Ferrule
- #12 - # 6
- Load Side Wire Size
- #12 - #4
- Enclosure Rating
- IP 20
- Depth (D)
- 147.3 mm
- Height (H)
- 85.2 mm
- Width (W)
- 55.2 mm
- Unit Weight
- 0.45 kg
- Certification Details
- UL® 1953
- Flammability Rating
- UL® 94V-0
- Complies With
- IEC® 60947-7-1
- UPC
- 782856975427
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Core cross section
- 240 mm²
- With seal head
- No
- Number of poles
- 1
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 0782856975427
- SAP 1200413723
- Code 82456044
Product Documentation
