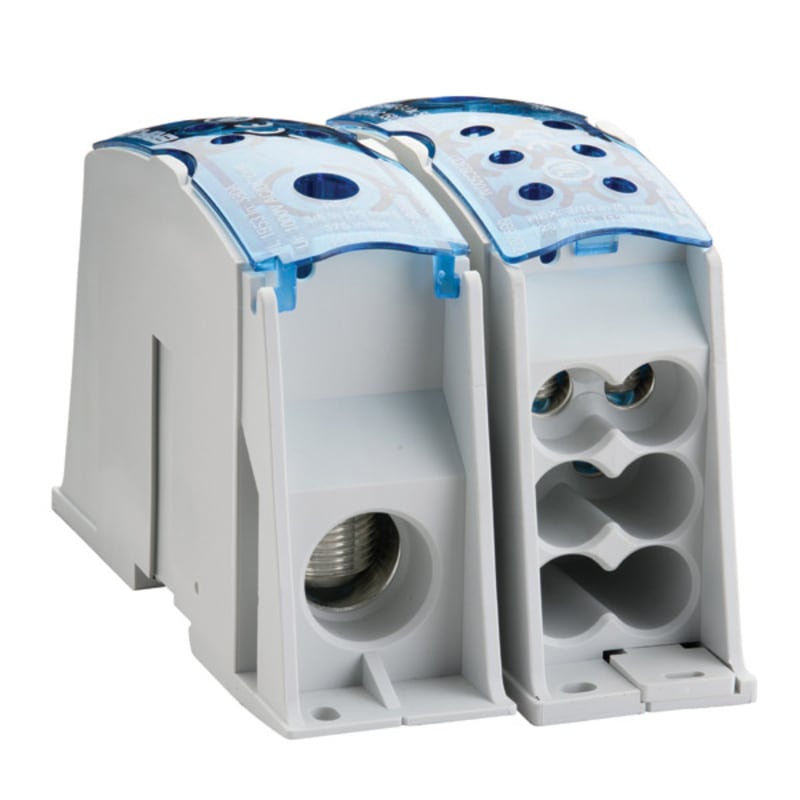

nVent ERIFLEX UD6C500AL Single Pole Dist. Block, 380 A UL/CSA, Cable Line, 6 Cables Load, Aluminum
Pricing
Request a quote
We reply within 24 hours
Product Description
Primary device for easy assembly between a wide range of conductors to perform electrical power distribution.
Technical Specifications
- Manufacturer part number (MPN)
- UD6C500AL
- EAN / GTIN
- 0782856975359
- Sales unit
- pcs
- Rated current
- 500 A
- Article Number
- 569201
- Finish
- Tinned
- Max Current Rating, IEC
- 500A
- Max Current Rating, UL/CSA
- 380A
- Line Side Connection
- Cable
- Load Side Connection
- 6 Cables
- Material
- Aluminum;Thermoplastic
- Line Side Max Conductor Size, IEC
- 240 mm²
- Line Side Max Conductor Size, UL
- 500 kcmil
- Load Side Max Conductor Size, IEC
- 50 mm²
- Load Side Max Conductor Size, UL
- 1/0 AWG
- Max Working Voltage, IEC (Ui)
- 1000;1500
- Max Working Voltage, UL (Vin)
- 1000
- Short Term Withstand Current (Icw) 1s
- 34.3kA
- Peak Short Circuit Current (Ipk)
- 52.5kA
- Rated Conditional Short-Circuit Current (Icc)
- 25kA
- Short Circuit Current Rating (SCCR)
- 100kA
- Line Side Number of Connections
- 1
- Line Side Compact Stranded Wire Size
- 95 - 240 mm²
- Line Side Wire Size
- 3 - 500
- Load Side Number of Connections
- 6
- Load Side Compact Stranded Wire Size
- 10 - 50 mm²
- Load Side Stranded Wire Size - Ferrule
- #8 - #1
- Load Side Wire Size
- #8 - 1/0
- Enclosure Rating
- IP 20
- Depth (D)
- 5.83" / 148.1mm
- Height (H)
- 3.55" / 90.2 mm
- Width (W)
- 1.72" / 43.7 mm
- Unit Weight
- 0.75 lb / 0.34 kg
- Certification Details
- UL® 1953
- Flammability Rating
- UL® 94V-0
- Complies With
- IEC® 60947-7-1
- UPC
- 782856975359
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Core cross section
- 240 mm²
- With seal head
- No
- Number of poles
- 1
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 0782856975359
- SAP 1200413718
- Code 82455901
Product Documentation
