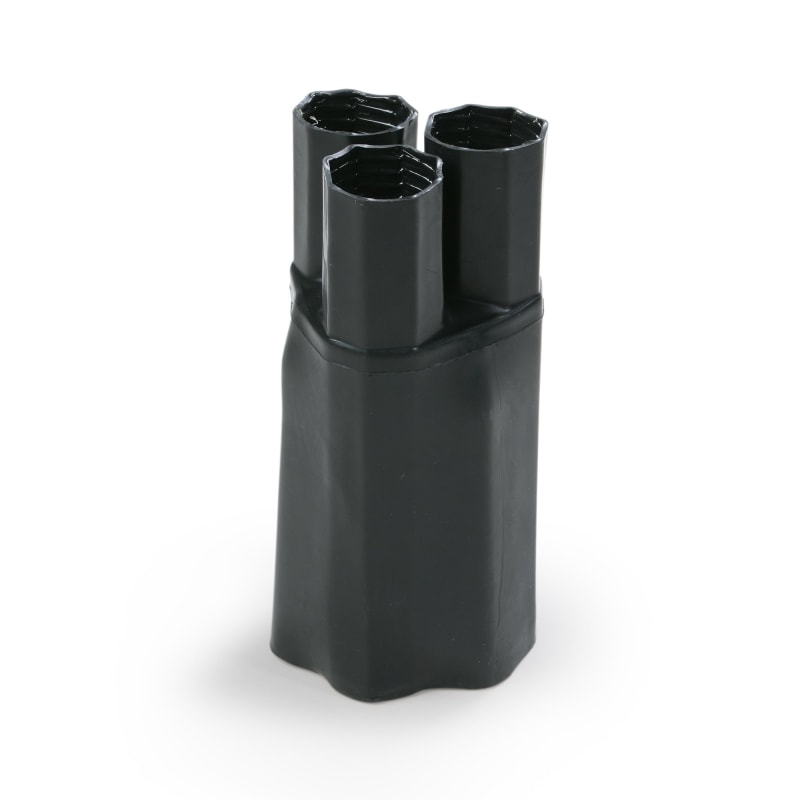

Ensto SBO3.1 Heat-Shrink Cable Joint Kit, 3-Core 6-50 mm² 1 kV
Pricing
Request a quote
We reply within 24 hours
Product Description
The Ensto SBO3.1 is a heat-shrink cable joint kit for three-core low-voltage cables rated 1 kV, spanning conductor cross-sections from 6 mm² to 50 mm². The main shaft shrinks from a 38 mm outside diameter down to 14 mm, while individual finger sleeves reduce from 14 mm to 4 mm, giving a total assembly length of 110 mm once cured. Operating temperature range is -20 °C to 80 °C, manufactured in Switzerland.
Technical Specifications
- Manufacturer part number (MPN)
- SBO3.1
- EAN / GTIN
- 6418677442889
- Sales unit
- pcs
- Type
- Heat-shrink
- Model
- For 3-core cables
- Nominal cross section
- 6–50 mm²
- Diameter shaft before shrink
- 38 mm
- Diameter shaft after shrink
- 14 mm
- Total length after shrink
- 110 mm
- Inner diameter finger before shrink
- 14 mm
- Inner diameter finger after shrink
- 4 mm
- Operating temperature
- -20–80 °C
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 6418677442889
- SAP 1200617985
- Code 83020493
Product Documentation
