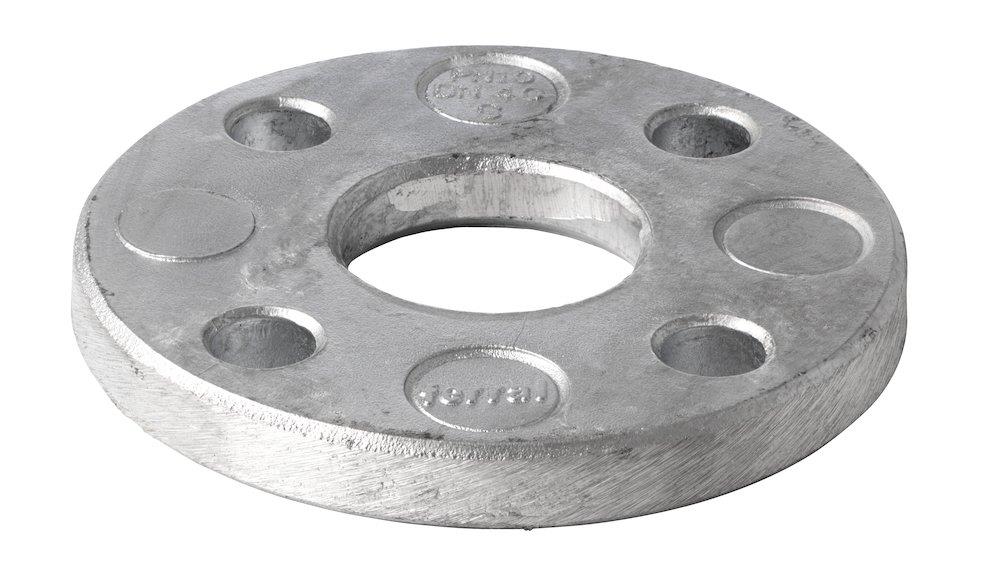

EN 1092-1 Type 02 Loose flange galvanized - 33.7mm, 115mm, 25, 4PCS
Pricing
Request a quote
We reply within 24 hours
Product Description
EN 1092-1 Type 02 Loose flange galvanised. Galvanized loose flanges ISO (Plumbing / Pipes and fittings / Flanges and gaskets). Principal data: outer pipe dimension 33.7 mm, flange diameter 115 mm, dn dimension 25, number of bolt holes 4 pcs. Supplied under manufacturer part number GL11683560, HS code 7307.91, country of origin India.
Technical Specifications
- Product type
- Galvanized loose flanges ISO
- Product group
- Pipes and fittings
- Outer pipe dimension
- 33.7 mm
- Flange diameter
- 115 mm
- DN dimension
- 25
- Number of bolt holes
- 4 pcs
- Material
- S235 JRG2
- Bolt hole diameter
- 14 mm
- Pressure PN
- 40 bar
- Flange thickness
- 16 mm
- Bolt dimension
- 12 mm
- Bolt circle diameter
- 85 mm
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 0.0030 kg CO2e per pcs
- Environmental declaration
- LCA
- Country of origin
- India
- Customs tariff code (EU CN)
- 73079100
- HS code
- 7307.91
- Manufacturer part number
- GL11683560
- VVS number
- 000606033
