Product Description

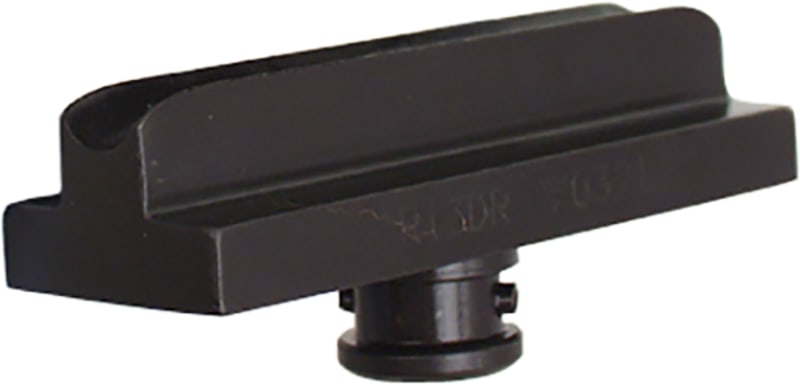

Elpress round-crimping punch. Part of the Elpress hydraulic crimping system for indent (round) crimping of aluminium conductors. Dies, punches and crimp heads are matched by tool system (13-ton V1300, 25-ton V250) and by conductor cross-section; select to match terminal type and area.
Technical Specifications
- Manufacturer part number (MPN)
- 5335-017200
- EAN / GTIN
- 7393487002906
- Sales unit
- pcs
- Article number
- 5335-017200
- Type designation
- R21DR
- Punch holder required
- Yes
- mm² Stranded Al
- 300
- mm² Solid Al
- 300
- Application
- Pipe cable lug and connectors
- Compression shape
- Round compression
- Cross section, Min (mm²)
- 300
- Cross section, Max (mm²)
- 300
- AWG-range, Min
- 22
- AWG-range, Max
- 22
- Pieces per pack
- 1
- Net weight (kg)
- 0.568
- Height Pack (mm)
- 87
- Depth Pack (mm)
- 141
- Width Pack (mm)
- 86
- Cross section
- 300 mm²
- AWG-range
- 600
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8207.30
Cross References
- EAN 7393487002906
- SAP 1000014047
- Code 8484086
Product Documentation
More from Elpress
Elpress

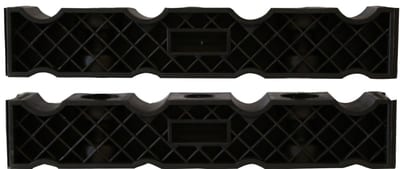

Unifixim 4X12-32 (8010-042800)
Elpress
Elpress Hexagon crimping die, copper (B2540)
Elpress

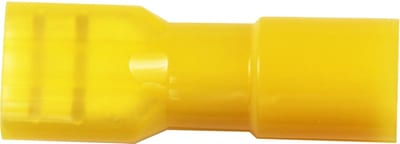

Elpress A4607FLSF Fully Insulated Receptacle, Rolled Type, 4-6 mm²
Elpress

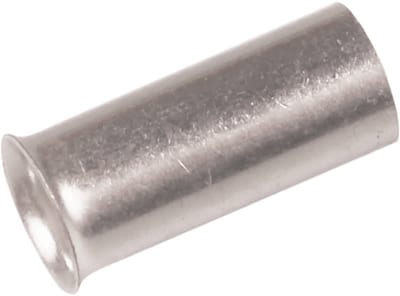

Elpress B10-18ET Uninsulated End Terminal, 10 mm²
Elpress

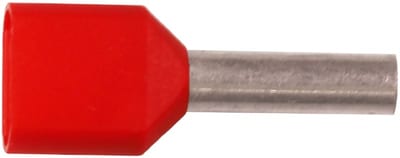

Elpress A1-8ET2 Twin Insulated End Ferrule 2 × 1 mm² 8 mm
Elpress

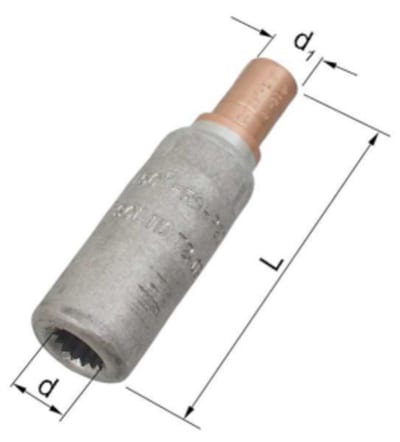

Elpress AKS50-10 Aluminium-Copper Bimetallic Through Connector 50 mm² Al / 10 mm² Cu
Elpress
Elpress AS240-95 Aluminium Compression Through Connector 240 mm² / 95 mm²
Elpress

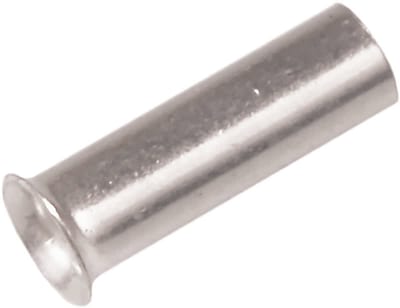

Elpress B1,5-7ET Uninsulated End Terminal, 1.5 mm²
