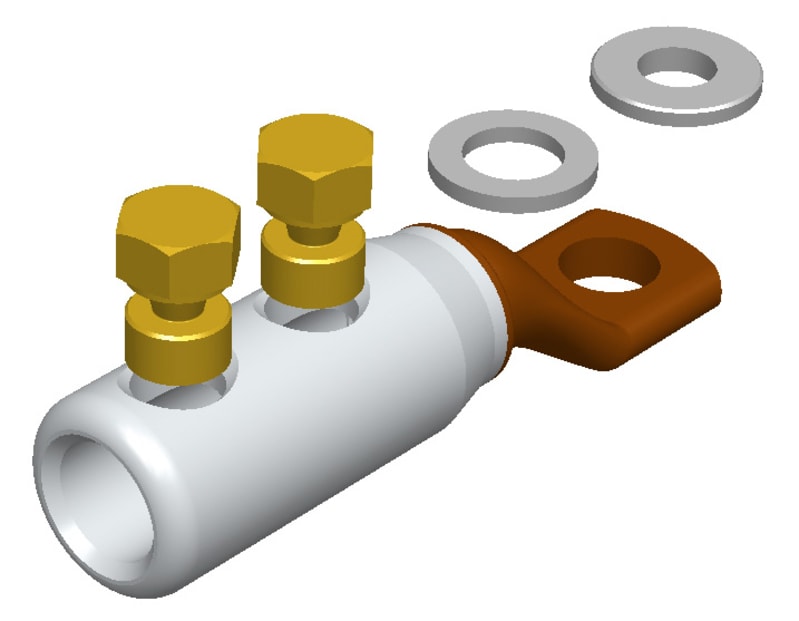

Elpress SL240R185S-12-16
Pricing
Request a quote
We reply within 24 hours
Overview
Elpress SL240R185S-12-16 is listed in the cBallast industrial catalogue. Sales unit: pcs; Type designation: SL240R185S-12-16; W (mm): 31.5; N (mm): 15; d (mm): 20; L1 (mm): 78.5.
Technical Specifications
- Manufacturer part number (MPN)
- SL240R185S-12-16
- EAN / GTIN
- 7393487033818
- Sales unit
- pcs
- Article number
- 7334-012200
- Type designation
- SL240R185S-12-16
- W (mm)
- 31.5
- N (mm)
- 15
- d (mm)
- 20
- L1 (mm)
- 78.5
- L (mm)
- 134
- t (mm) - palm thickness
- 7.9
- s (mm) - strip length
- 75
- Screw
- M12, M16
- Max voltage (kV)
- 1-36
- Cable type Round (mm²)
- 185-240
- Cable type Sector (mm²)
- 120-185
- Bolt dimension metric (M)
- 12
- Nominal cross section copper, RM, Min (mm²)
- 185
- Nominal cross section copper, RM, Max (mm²)
- 240
- Nominal cross section copper, RE, Min (mm²)
- 185
- Nominal cross section copper, SM, Min (mm²)
- 120
- Nominal cross section copper, SM, Max (mm²)
- 185
- Nominal cross section aluminium, RE, Max (mm²)
- 240
- Nominal cross section aluminium, SM, Max (mm²)
- 185
- Nominal cross section aluminium, SE, Min (mm²)
- 120
- Nominal cross section aluminium, SE, Max (mm²)
- 185
- Pieces per pack
- 1
- Net weight (kg)
- 0.341
- Height Pack (mm)
- 34
- Depth Pack (mm)
- 220
- Width Pack (mm)
- 125
- Surface protection
- Bare
- With shear-off head
- No
- Bolt dimension (metric)
- 12
- Nominal cross section copper, RM
- 185–240 mm²
- Nominal cross section copper, RE
- 185–240 mm²
- Nominal cross section copper, SM
- 120–185 mm²
- Nominal cross section aluminium, RM
- 185–240 mm²
- Nominal cross section aluminium, RE
- 185–240 mm²
- Nominal cross section aluminium, SM
- 120–185 mm²
- Nominal cross section aluminium, SE
- 120–185 mm²
- Material conductor
- Aluminium/copper
- Min. AWG-size
- 350 kcmil
- Max. AWG-size
- 500 kcmil
- Country of origin
- Sweden
