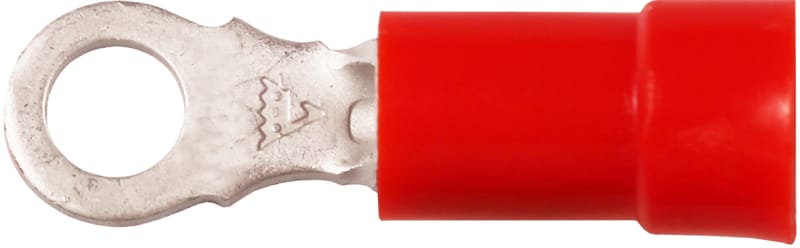

Elpress A1543R
Pricing
Request a quote
We reply within 24 hours
Overview
Elpress A1543R is listed under Electrical Components / Cable Lugs. Sales unit: pcs; Package quantity: 100 pcs; Type designation: A1543R; W (mm): 8; d (mm): 4.1; L (mm): 21.7.
Technical Specifications
- Manufacturer part number (MPN)
- A1543R
- EAN / GTIN
- 7393487004337
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Article number
- 7280-260700
- Type designation
- A1543R
- W (mm)
- 8
- d (mm)
- 4.1
- L (mm)
- 21.7
- t (mm) - palm thickness
- 0.75
- s (mm) - strip length
- 7
- Insulation material
- PC
- Insulation colour
- Red (insulated terminals)
- Material
- Cu, Cu/Sn
- Easy-entry
- Yes
- Screw
- M4
- Neck type
- Brazed
- AWG/MCM Cu
- (22) - 18 AWG
- mm² Cu
- 0,5-1,5
- L1 (mm)
- 17
- Halogen free
- Yes
- Surface protection
- Tin plated
- Insulation
- Partially isolated
- Flange shape
- Ring shape
- Colour insulation
- Red
- Bolt dimension metric (M)
- 4
- AWG-range, Min
- 22
- AWG-range, Max
- 16
- Nominal cross section, Min (mm²)
- 0.5
- Nominal cross section, Max (mm²)
- 1.5
- Suitable for fine strand conductors
- Yes
- Suitable for solid conductors
- Yes
- Suitable for stranded conductors
- Yes
- Suitable for round conductors
- Yes
- Sleeve form
- Short
- Net weight (kg)
- 0.0007
- Height Pack (mm)
- 100
- Depth Pack (mm)
- 60
- Width Pack (mm)
- 22
- Pieces per pack
- 100
- Total length
- 20.5 mm
- For pull protected connections
- No
- Reel/roll packaging
- No
- Bolt dimension (metric)
- 4
- AWG-range
- 16–20
- Nominal cross section
- 0.5–1.5 mm²
- Suitable for flat conductors
- No
- Suitable for high temperatures (to 650 °C)
- No
- Suitable for insulated varnish
- No
- According to DIN
- No
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7393487004337
- SAP 1000084252
- Code 8576300
Product Documentation
More from Elpress
Elpress
Elpress KRF185-20 Copper Tube Cable Lug 185 mm² M20
Elpress
Elpress B4653G Uninsulated Flanged Fork (Spade) Terminal 4–6 mm² M5
Elpress
ISOL.FLATST.AVG.H.1,5-2,5MM2 (A2507FLSH)
Elpress
Elpress A0824SK-CP Duraseal Heat-Shrink Splice Sleeve
A0824sk-Cp
Elpress
Elpress UNINSULATED B0457H5
Elpress
Elpress KRF95-16-90GR Copper 90° Angled Tube Cable Lug 95 mm² M16
Elpress
KS6P (7303-521300)
Elpress
KRFS400A-16 (7301-293400)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy A1543R?
- A1543R can be ordered from cballast.com as a Elpress catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Elpress product?
- The manufacturer part number is A1543R.
- What is the HS code for A1543R?
- The customs tariff (HS) code for A1543R is 8536.90.
- Who manufactures A1543R?
- A1543R is a Elpress product in the Electrical Components range.
- Is a datasheet available for A1543R?
- Yes — the A1543R datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for A1543R?
- The minimum order quantity is 1.
- Is A1543R available?
- Yes — A1543R is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
